(No.MB207)1-7

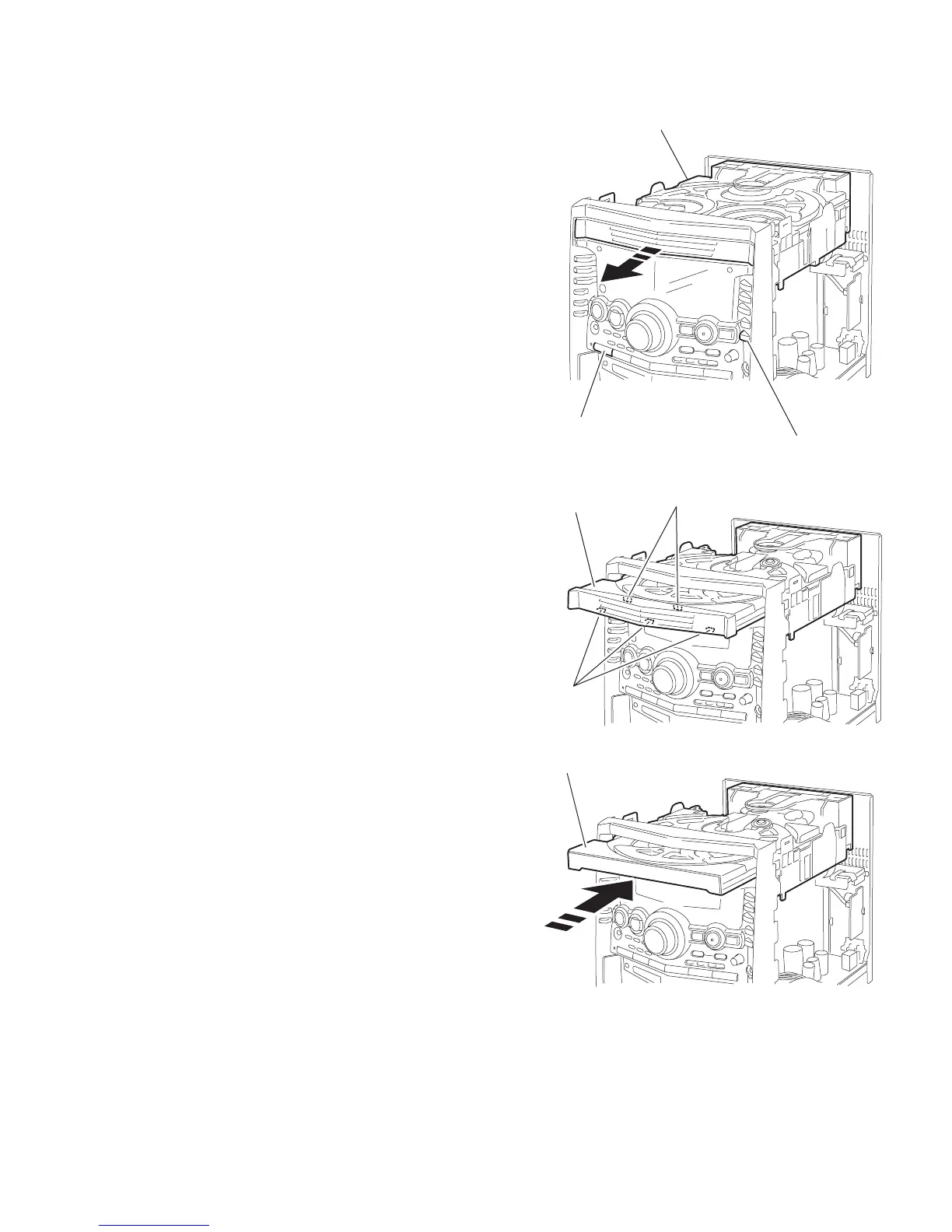

3.1.2 Removing the CD fitting
(See Fig.4~6)
• Prior to performing the following procedure, remove the metal
cover.
ATTENTION :
Be sure to remove the CD tray fitting before removing the
CD changer unit.
(1) Press the STANDBY button. Press the OPEN/CLOSE but-
ton to eject the CD trey.
(2) Move the CD trey fitting upward and release the joint a.
(3) Press the OPEN/ CLOSE button to insert the tray.
Fig.4
Fig.5
Fig.6
CD tray
STANDBY / ON button
OPEN / CLOSE button
CD tray fitting
Joint
a
Joint a
CD tray
