(No.MB433)1-17
3.1.14 Removing the switch board
(See Fig.29)
• Remove the side panels L/R and top panel assembly.
From the inside of the top panel assembly, remove the three
screws Z and take out the switch board.

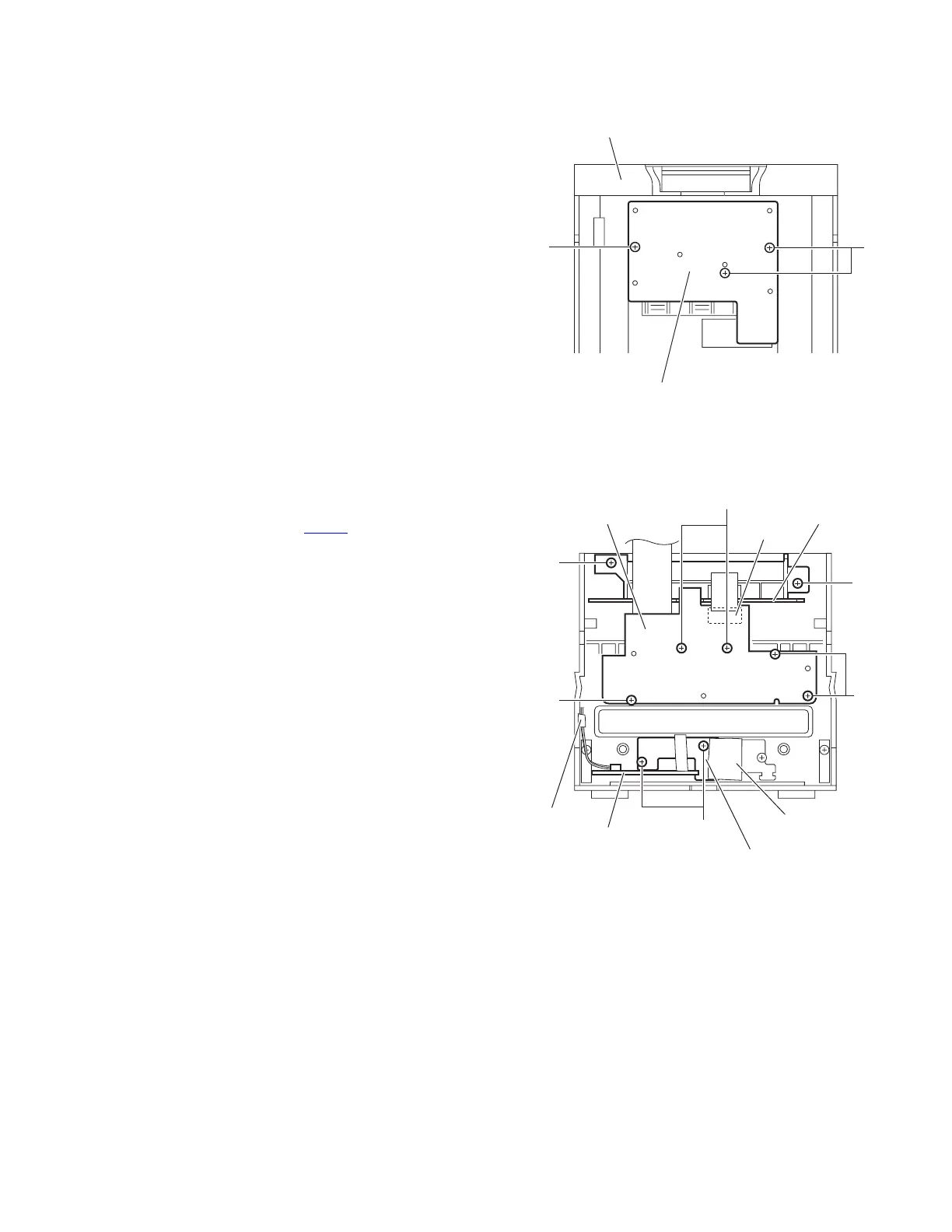

Fig.29
3.1.15 Removing the front board
(See Fig.30)
• Remove the side panels L/R, top panel and front panel assem-
blies.
(1) From the inside of the front panel assembly, disconnect the
card wire from the connector CN605
on the front board.
(2) Remove the five screws AA and take out the front board.
3.1.16 Removing the FL board
(See Fig.30)
• Remove the side panels L/R, top panel assembly, front panel
assembly and front board.
Remove the two screws AA and take out the FL board.
3.1.17 Removing the headphone and LED boards
(See Fig.30)
• Remove the side panels L/R, top panel and front panel assem-
blies.
(1) Remove the two screws AA.
(2) Take out the headphone board with the LED board.
Reference:
After attaching the headphone and LED boards, attach the
spacers as before.
Fig.30
Top panel assembly
Switch board
Z
Z
Front board
FL board
CN605
AA
AA
AA
AA
AA
AA
Headphone board
Spacer
Spacer
LED board
To Next Page
