Fig.31
Prior to performing the following procedures,
remove the top cover and both sides board.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
3.
4.
5.
6.
Remove the five screws "O" that retain the cassette
deck mechanism.
Remove the cassette deck mechanism and place it
so that the front side faces up.
Remove the solder from the bottom side of the
head terminal and disconnect the wire.
Remove the screw "U" that retains the head.
Remove the screw "V" that retains the head.
Hold the head and slide it in the direction of the
arrow to remove it.

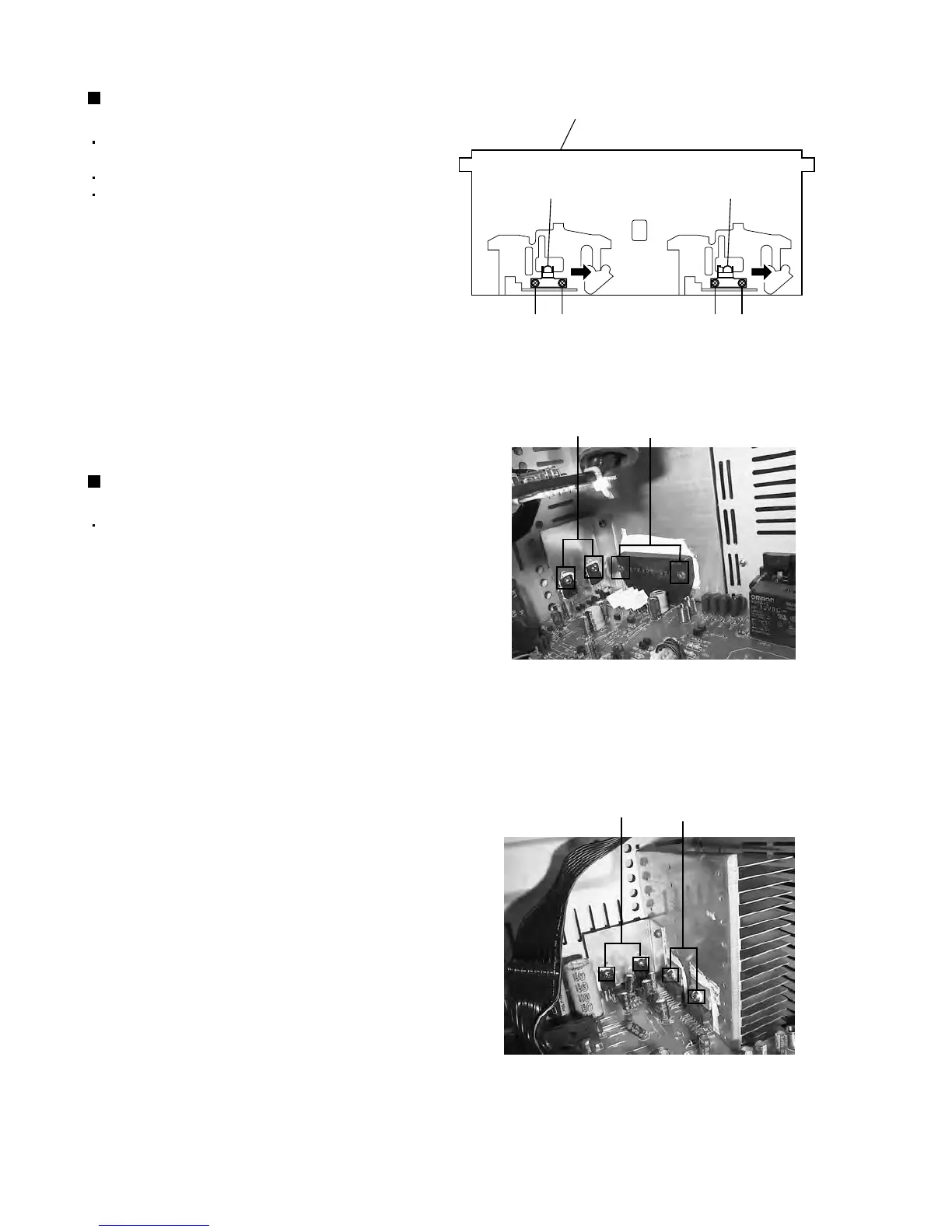

Removing the cassette deck heads
(See Fig.22 and 31)
For MX-K30 Fig.32
For MX-K10 Fig.33
AW
AW
Prior to performing the following procedures,
remove the top cover and both sides board.
1.
2.
3.
4.
Remove the two screws "A" that connect the heat
sink cover to the rear panel.
Pull the heat sink outward.
Remove the screw "W" that retains the heat sink
the 3-pin terminal regulator. Q904, Q907
Remove the solder fixing the 3-pin regulator.
Removing the 3-pin regulator Q904, Q907
(See Fig. 32 and 33)
Cassette deck mechanism
(Front side)
VU
PB Head REC/PB Head
VU
To Next Page
