1-18 (No.MB429)

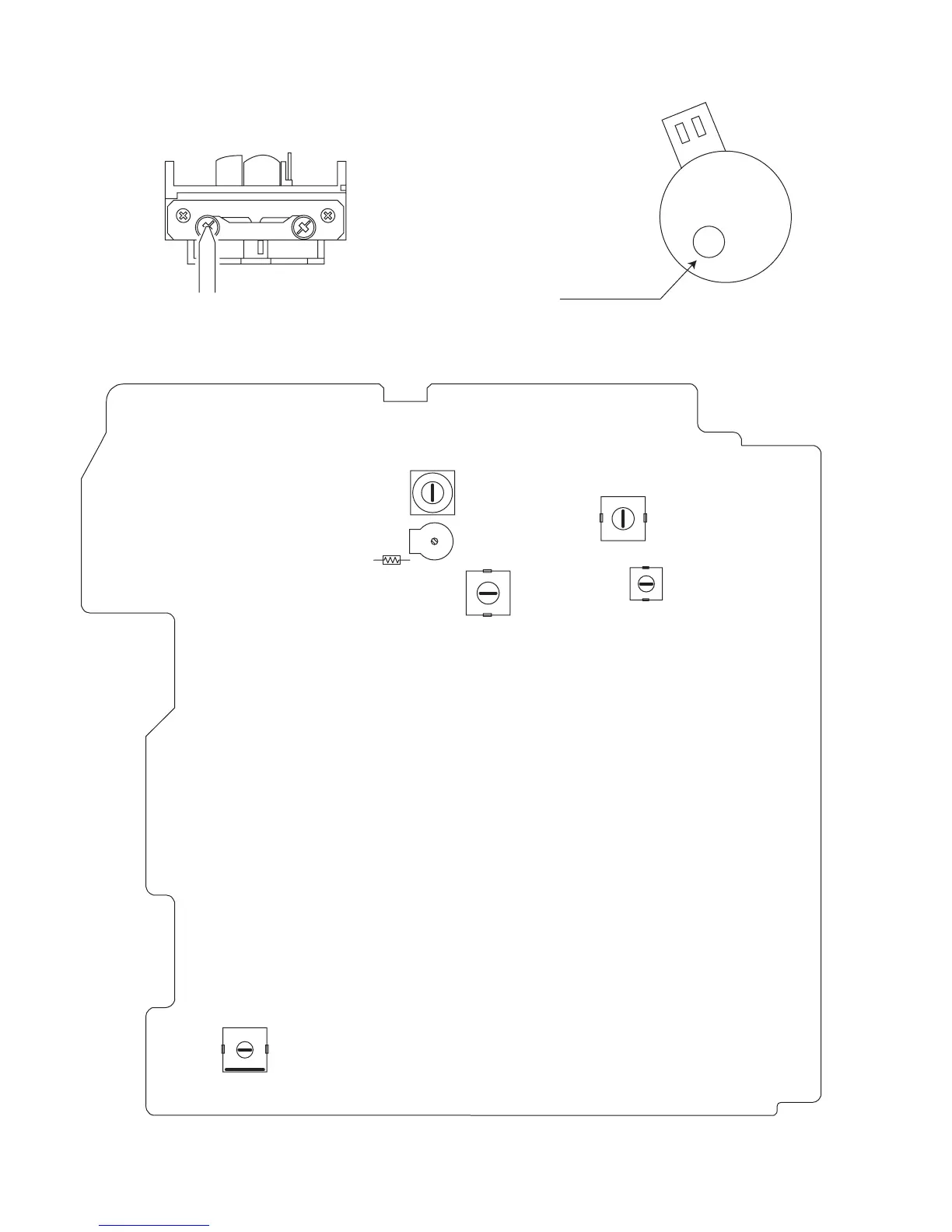

4.8 Location of adjusting parts
Cassette mechanism section
CASSETTE
MOTOR
Tape speed adj.
+
-
Main board assembly
(BIAS FREQUENCY)
T201
(AM OSC)
T360
(AM RF)
(AM RF)
(AM IF)
(AM VT)
R245
TC201
T203
T204
(114 kHz)
T202
