1-8 (No.MB429)
3.1.3 Removing the CD mechanism assembly
(See Fig.9, 10)
• Prior to performing the following procedure, remove the front
panel assembly and the main board.
(1) Remove the three bands attaching the wire.
(2) Disconnect the connector from the CD door switch. Discon-
nect the wire from connector CN603
and CN606 on the CD
mechanism board.
(3) Disconnect the wire soldered on the CD mechanism board.
(4) Remove the three screws H attaching the CD mechanism
assembly.
(5) Release the joints d to remove the CD mechanism assem-
bly from the front panel assembly.

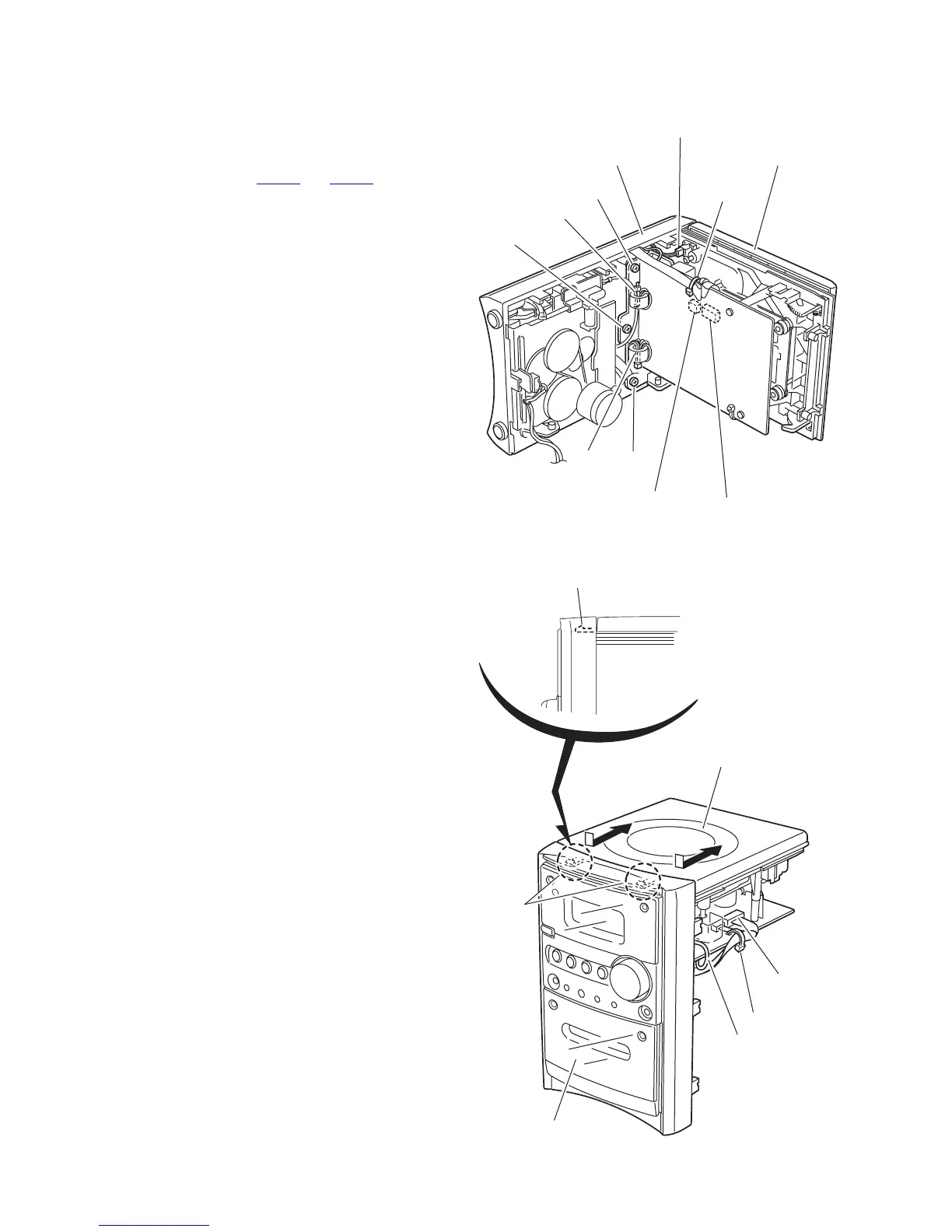

Fig.9
Fig.10
CD mechanism assembly
CD door switch
CD mechanism board
Front panel assembly
CN603
CN606
Band
Band
Band
H
H
H
CD mechanism assembly
Front panel assembly
Joint d
Joint d
CN603,CN606
band
wire
