3.1.14 Removing the control panel assembly
(See Fig.19,20)
• Prior to performing the following procedure, remove the front
panel assembly, the switch board and the LCD board
assembly.
(1) Remove the three screws Y attaching the control panel
assembly.
(2) Release the three joints k and open the cassette door
while pressing the cassette door, and then remove the
control panel assembly in the direction of the arrow.

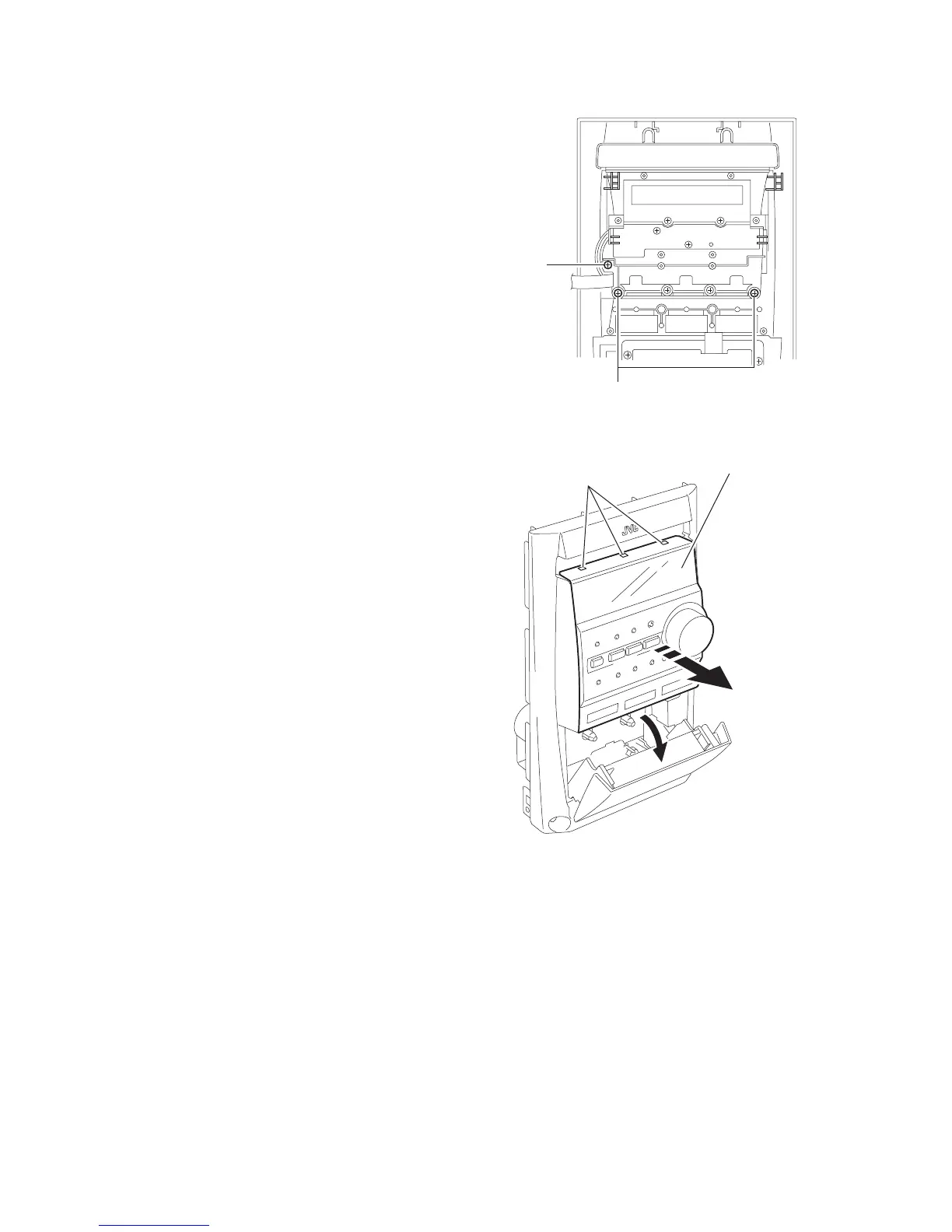

Fig.19
Fig.20
Y
Y
Cotrol panel assembl
y
k
