3.2.5 Removing the front board
(See Figs. 3 and 4)
• Prior to performing the following procedures, remove the
phone jack board, bracket board and operation board.
(1) From the front side of the front panel assembly, pull out the
volume knob in the direction of the arrow. (See Fig. 3.)
(2) From the inside of the front panel assembly, remove the
five screws E attaching the front board. (See Fig. 4.)
(3) Take out the front board and remove the solder from the
soldered section e to remove the parallel wire. (See Fig. 4.)

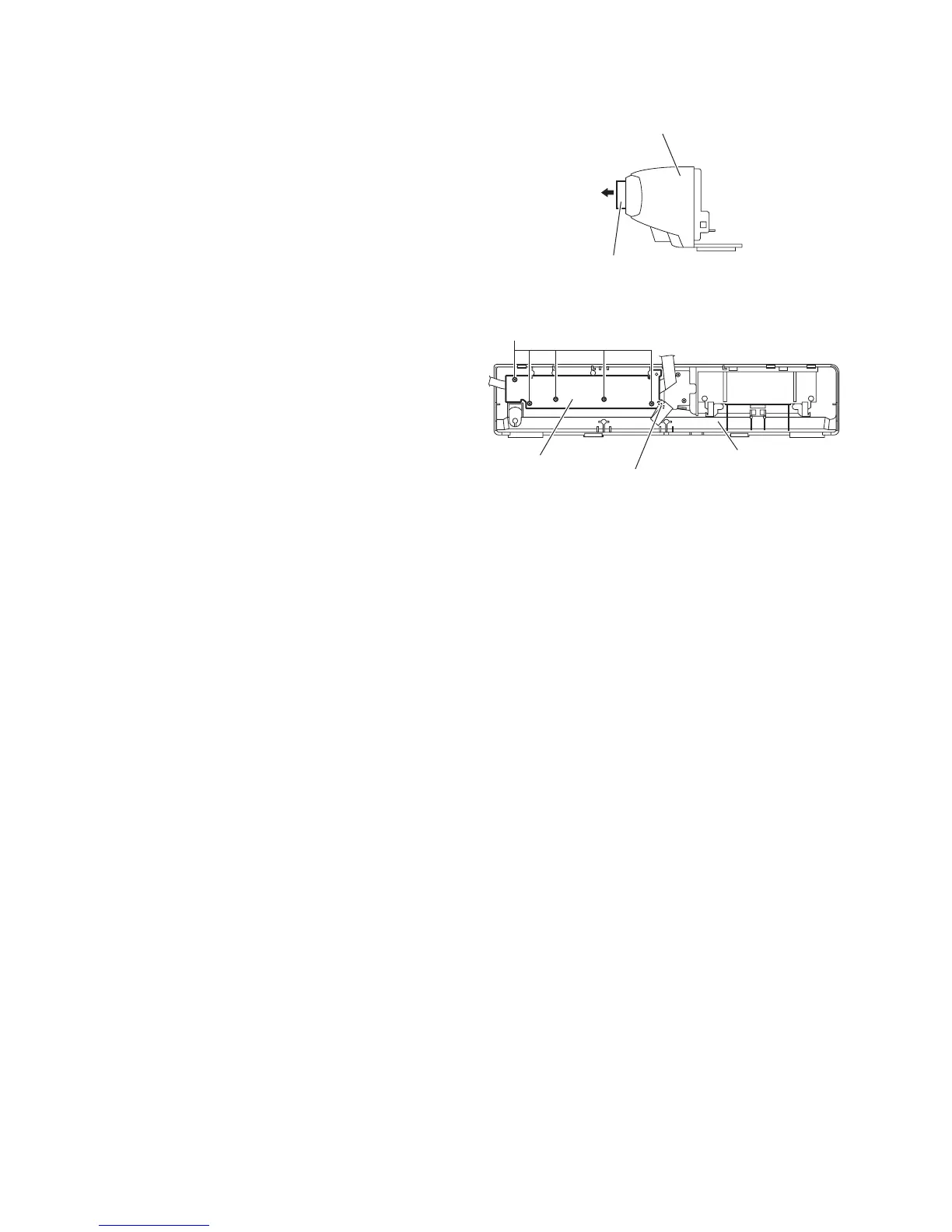

Fig.3
Fig.4
Front panel assembly
Volume knob
E
Front panel assembly
Front board
Solder section e
