3.4.13 Removing the speaker
(See Figs.21 and 22)
• Prior to performing the following procedure, remove the side
panel assembly.
(1) From right side of the speaker main body, remove the eight
screws T attaching the speaker. (See Fig.21.)
(2) Take out the speaker from the speaker main body.
(3) Disconnect the wires (black and red) from the terminal of
the speaker. (See Fig.22.)

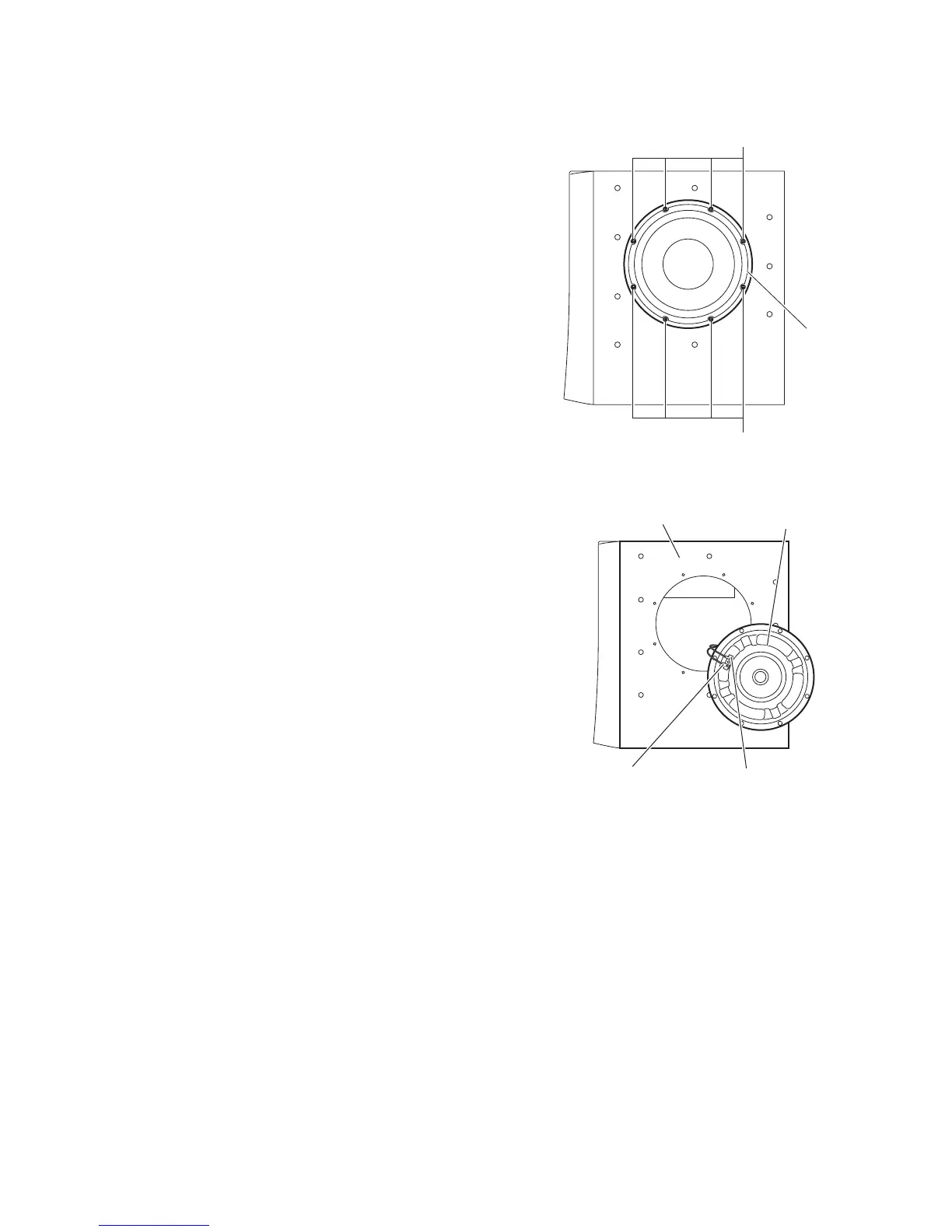

Fig.21
Fig.22
T
T
Speake
r
Speaker main body
Terminal (red)
Terminal (black)
Speake
r
