TK-1280E/-1180E/-1281EG

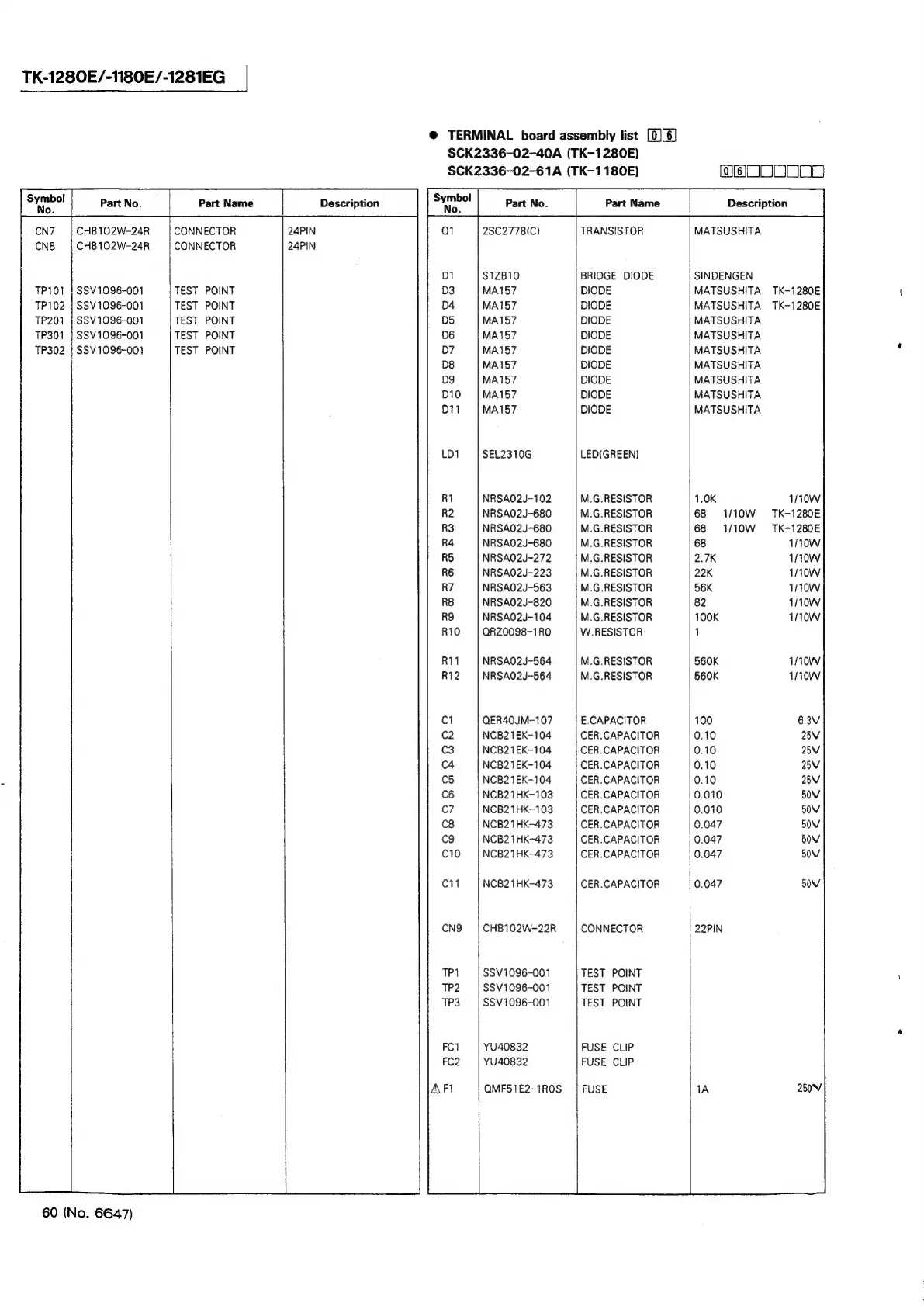

@ TERMINAL board assembly list [0][6]
SCK2336-02-40A (TK-1280E)
SCK2336-02-61A (TK-1180E) jeOOO0OO
ee Part No. Part Name Description Description
CN7 CHB102W-24R CONNECTOR 24PIN 2SC2778(C) TRANSISTOR MATSUSHITA
| CN8 | CHB102W-24R CONNECTOR 24PIN
$1ZB10 BRIDGE DIODE SINDENGEN
TP101 | SSV1096-001 TEST POINT MA157 DIODE MATSUSHITA TK-1280E
TP102 | SSV1096-001 TEST POINT MA157 DIODE MATSUSHITA TK-1280E
TP201 | SSV1096-001 TEST POINT MA157 DIODE MATSUSHITA
TP301 | SSV1096-001 TEST POINT MA157 DIODE MATSUSHITA
TP302 | SSV1096-001 TEST POINT MA157 DIODE MATSUSHITA
MA157 DIODE MATSUSHITA
MA157 DIODE MATSUSHITA
MA157 DIODE MATSUSHITA
MA157 DIODE MATSUSHITA
SEL2310G LED(GREEN)
NRSAO2J-102 M.G.RESISTOR 1.0K THOW
NRSA02J-680 M.G.RESISTOR 68 1/10W TK-1280E
NRSAO2J-680 M.G.RESISTOR 68 1/10W TK-1280E
NRSAO2J-680 M.G.RESISTOR 68 TOW
NRSA02J-272 M.G.RESISTOR 2.7K TOW
NRSAO2J-223 M.G.RESISTOR 22K TOW
NRSAO2J-563 M.G.RESISTOR 56K 1110W
NRSAO2J-820 M.G.RESISTOR 82 1/10W
NRSAO2J-104 M.G.RESISTOR 100K THOW
QRZ0098-1 RO W.RESISTOR: 1
NRSA02J-564 M.G.RESISTOR
NRSA02J-564 M.G.RESISTOR
QER40JM-107 E.CAPACITOR
NCB21EK-104 CER.CAPACITOR
NCB21EK-104 CER.CAPACITOR
NCB21EK-104 CER.CAPACITOR
NCB21EK-104 CER.CAPACITOR
NCB21HK-103 CER.CAPACITOR
NCB21HK-103 CER.CAPACITOR
NCB21HK-473 CER.CAPACITOR
NCB21HK-473 CER.CAPACITOR
NCB21HK-473 CER.CAPACITOR
NCB21HK-473 CER.CAPACITOR
CHB102W-22R CONNECTOR
SSV1096-001 TEST POINT
SSV1096-001 TEST POINT
S$SV1096-001 TEST POINT
YU40832 FUSE CLIP
YU40832 FUSE CLIP
QMF51E2-1ROS_ | FUSE
60 (No. 6647)
