JVC TK-C600 - Page 17

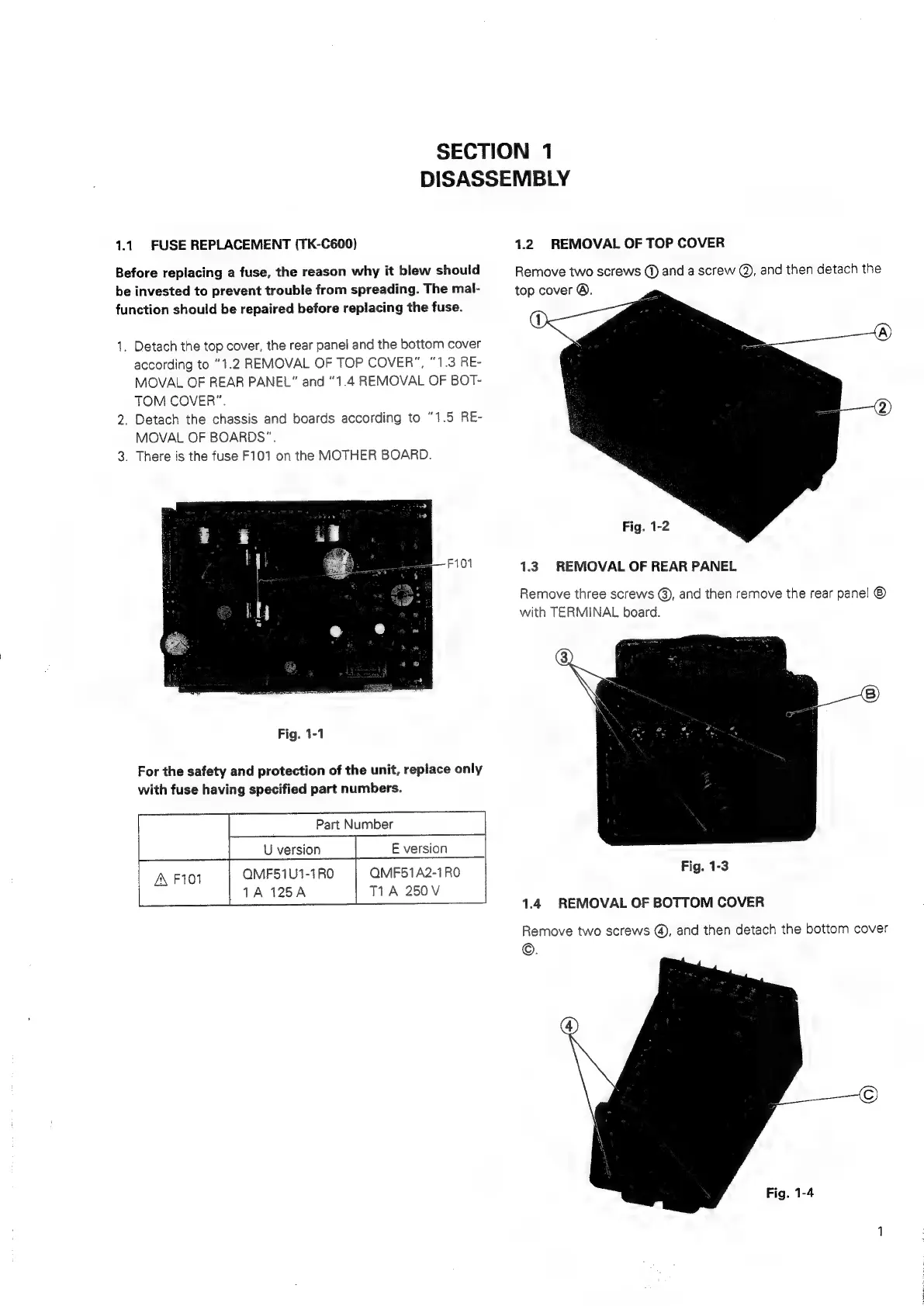

SECTION 1
DISASSEMBLY
1.1. FUSE REPLACEMENT (TK-C600})
Before
replacing
a
fuse,
the
reason
why
it
blew
should
be
invested
to
prevent
trouble
from
spreading.
The
mal-
function
should
be
repaired
before
replacing
the
fuse.
1.
Detach
the
top
cover,
the
rear
panel
and
the
bottom
cover
according
to
"1.2
REMOVAL
OF
TOP
COVER",
“1.3
RE-
MOVAL
OF
REAR
PANEL”
and
“1.4
REMOVAL
OF
BOT-
TOM
COVER".
2.
Detach
the
chassis
and
boards
according
to
“1.5
RE-
MOVAL
OF
BOARDS".
3. There is the fuse F101 on the MOTHER BOARD.
F101
Fig. 1-1
For the
safety
and
protection
of
the
unit,
replace
only
with
fuse
having
specified
part
numbers.
Part Number
U version E version
QMF51U1-7 RO QMF51A2-1RO
1A 125A T1A 250V
1.2. REMOVAL OF TOP COVER
Remove
two
screws
@)
and
a
screw
@),
and
then
detach
the
top
cover
@.
1.3. REMOVAL OF REAR PANEL
Remove three screws @), and then remove the rear panel
with TERMINAL board.
Fig. 1-3
1.4 REMOVAL OF BOTTOM COVER
Remove two screws @, and then detach the bottom cover
©.
