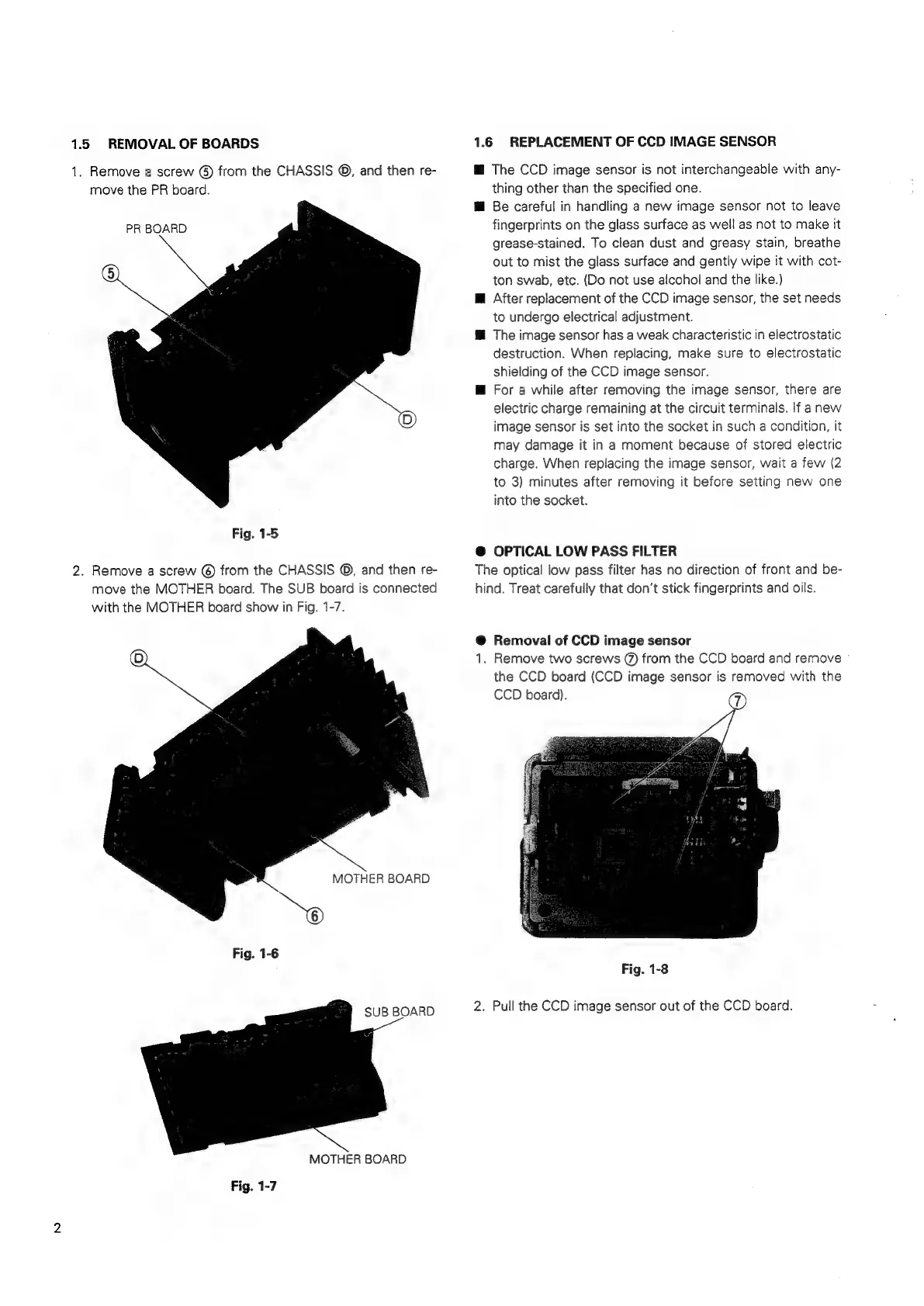

REMOVAL
OF
BOARDS
1.
Remove
a
screw
G)
from
the
CHASSIS
©,
and
then
re-
move
the
PR
board.
PR
BOARD
Fig.
1-5
2.
Remove
a
screw
©
from
the
CHASSIS
©,
and
then
re-
move
the
MOTHER
board.
The
SUB
board
is
connected
with
the
MOTHER
board
show
in
Fig.
1-7.
MOTHER
BOARD
“oe
Fig.
1-6
SUB
BOARD
MOTHER
BOARD
Fig.
1-7
1.6
REPLACEMENT
OF
CCD
SENSOR
@
The
CCD
sensor
is
not
interchangeable
with
any-
thing
other
than
the
specified
one.
M@
Be
careful
in
handling
a
new
sensor
not
to
leave
fingerprints
on
the
glass
surface
as
well
as
not
to
make
it
grease-stained.
To
clean
dust
and
greasy
stain,
breathe
out
to
mist
the
glass
surface
and
gently
wipe
it
with
cot-
ton
swab,
etc.
(Do
not
use
alcohol
and
the
like.)
M
After
replacement
of
the
CCD
sensor,
the
set
needs
to
undergo
electrical
adjustment.
™
The
sensor
has
a
weak
characteristic
in
electrostatic
destruction.
When
replacing,
make
sure
to
electrostatic
shielding
of
the
CCD
sensor.
@
For
a
while
after
removing
the
sensor,
there
are
electric
charge
remaining
at
the
circuit
terminals.
if
a
new
sensor
is
set
into
the
socket
in
such
a
condition,
it
may
damage
it
in
a
moment
because
of
stored
electric
charge.
When
replacing
the
sensor,
wait
a
few
(2
to
3)
minutes
after
removing
it
before
setting
new
one
into
the
socket.
@
OPTICAL
LOW
PASS
FILTER
The
optical
low
pass
filter
has
no
direction
of
front
and
be-
hind.
Treat
carefully
that
don’t
stick
fingerprints
and
oils.
@
Removal
of
CCD
sensor
1.
Remove
two
screws
@
from
the
CCD
board
and
remove
the
CCD
board
(CCD
sensor
is
removed
with
the
CCD
board).
Fig.
1-8
2.
Pull
the
CCD
sensor
out
of
the
CCD
board.
