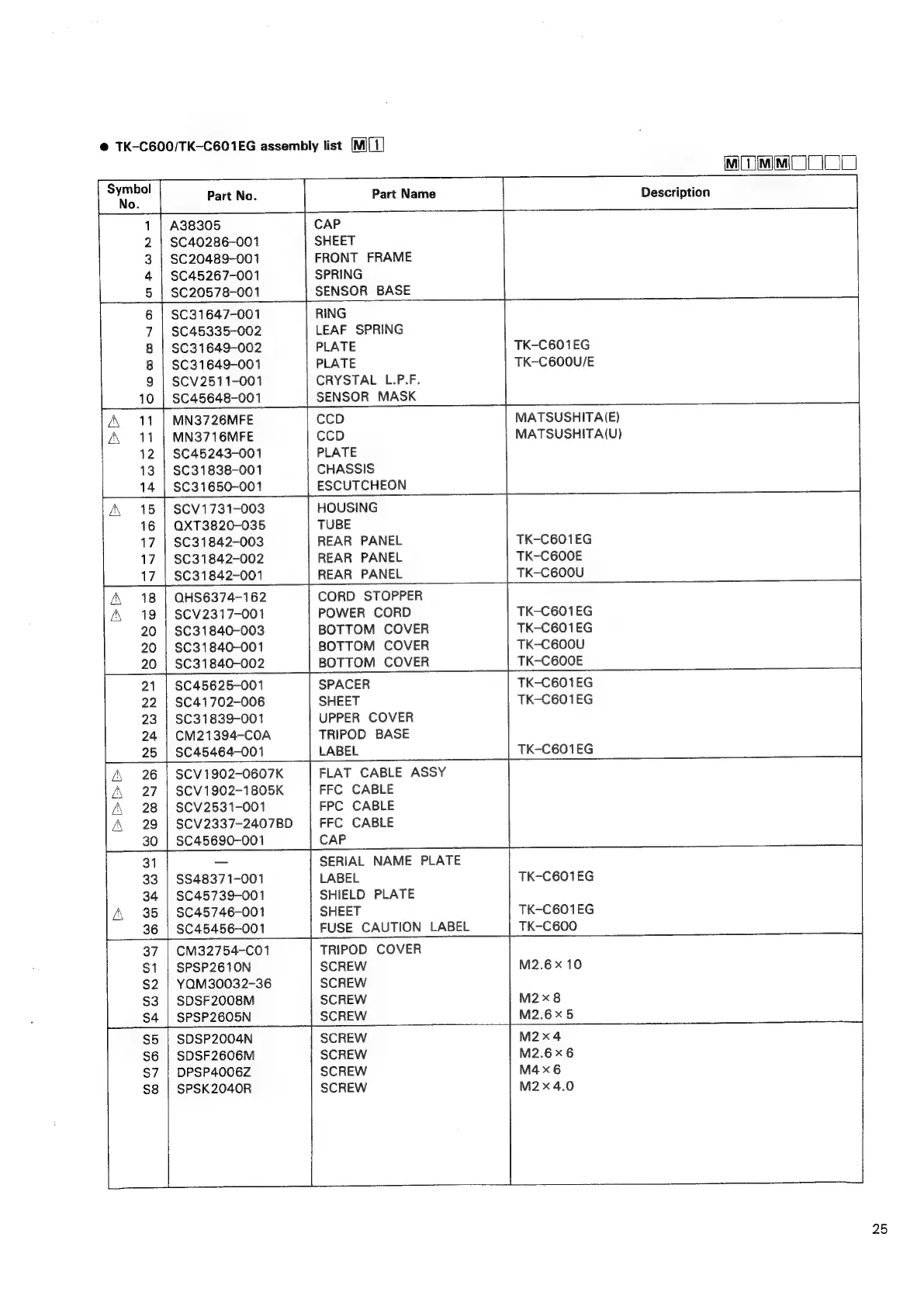

@ TK-C600/TK-C601EG assembly list [MI[1]
MO iMiM OL
acts
ia
Part
No.
Part
Name
Description
1 | A38305 CAP
2 | $C40286-001 SHEET
3 | $C20489-001 FRONT FRAME
4 | $C45267-001 SPRING
5 | $C20578-001 SENSOR BASE
6 | $C31647-001 RING
7 | $C45335-002 LEAF SPRING
8
|
SC31649-002
PLATE
TK-C601EG
8
|
SC31649-001
PLATE
TK-C6O00U/E
9 | $CV2511-001 CRYSTAL L.P.F.
10 | SC45648-001 SENSOR MASK
A. 11 | MN3726MFE ccD MATSUSHITA(E)
A,
11
|
MN3716MFE
CcD
MATSUSHITA(U)
12 | $C45243-001 PLATE
13 | $C31838-001 CHASSIS
14 | SC31650-001 ESCUTCHEON
A 15 | S$CV1731-003 HOUSING
16 | QXT3820-035 TUBE
17
|
$C31842-003
REAR
PANEL
TK-C601EG
17
|
$C31842-002
REAR
PANEL
TK-C600E
17
|
$C31842-001
REAR
PANEL
TK-C600U
ZA.
18
|
QHS6374-162
CORD
STOPPER
A
19
|
SCV2317-001
POWER
CORD
TK-C601EG
20
|
$C31840-003
BOTTOM
COVER
TK-C601EG
20
|
$C31840-001
BOTTOM
COVER
TK-C600U
20
|
$C31840-002
BOTTOM
COVER
TK-C600E
21
|
$C45625-001
SPACER
TK-C601EG
22
|
$C41702-006
SHEET
TK-C601EG
23 | $C31839-001 UPPER COVER
24 | CM21394-COA TRIPOD BASE
25
|
S$C45464-001
LABEL
TK-C601EG
pS
A
26
|
SCV1902-0607K
FLAT
CABLE
ASSY
f\ 27 | SCV1902-1805K FFC CABLE
A 28 | SCV2531-001 FPC CABLE
A 29 | SCV2337-2407BD FFC CABLE
30 | SC45690-001 CAP
31
=
SERIAL
NAME
PLATE
33
|
$S48371-001
LABEL
TK-C601EG
34 | $C45739-001 SHIELD PLATE
A
35
|
$C45746-001
SHEET
TK-C601EG
36
|
SC45456-001
FUSE
CAUTION
LABEL
TK-C600
37 | CM32754-CO1 TRIPOD COVER
$1
|
SPSP2610N
SCREW
M2.6
x
10
$2 | YOM30032-36 SCREW
$3
|
SDSF2008M
SCREW
M2x8
S4
|
SPSP2605N
SCREW
M2.6x5
$5
|
SDSP2004N
SCREW
M2x4
S6
|
SDSF2606M
SCREW
M2.6x6
$7 | DPSP4006Z SCREW M4x6
$8
|
SPSK2040R
SCREW
M2
x
4.0
25
