26

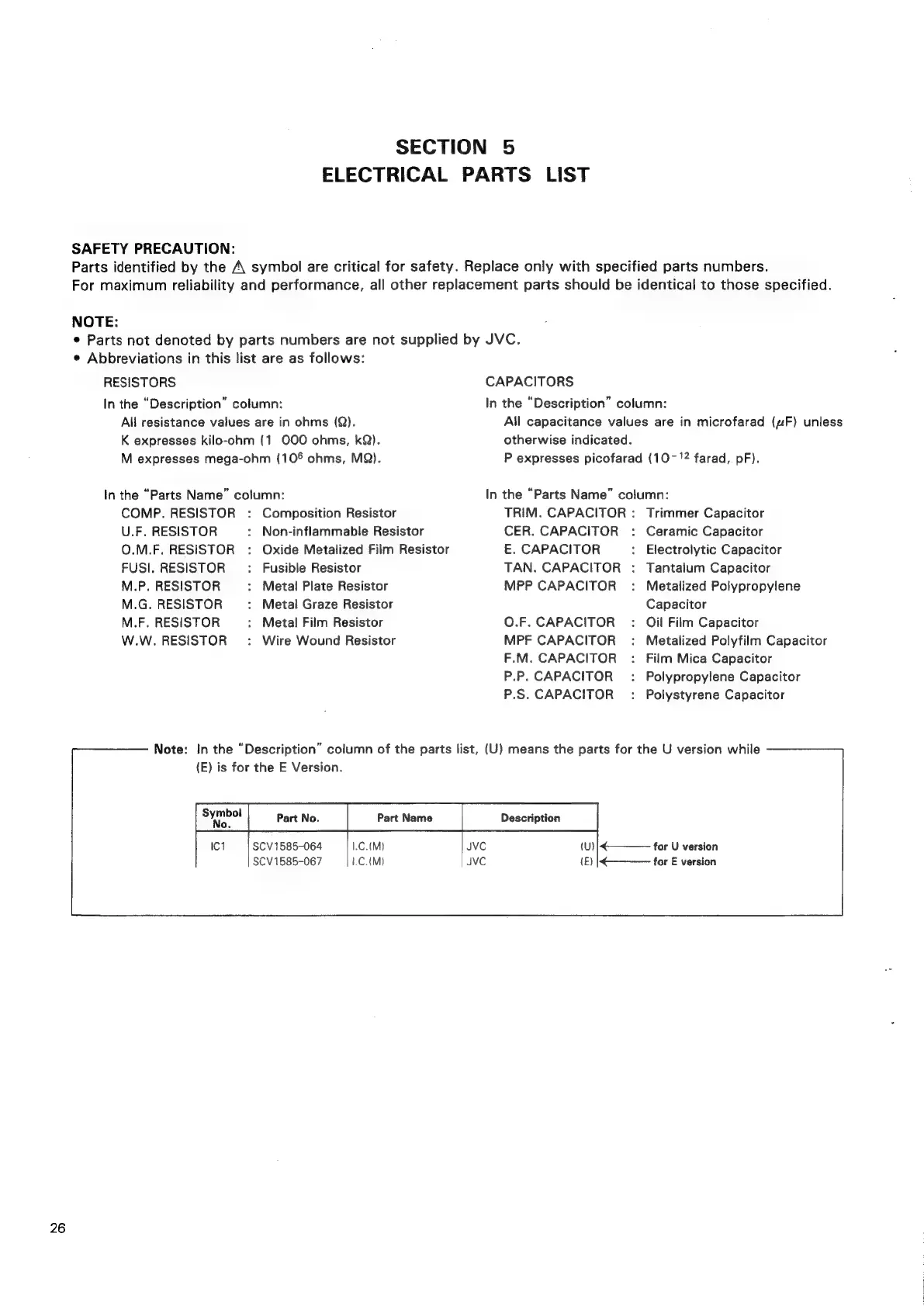

SECTION 5
ELECTRICAL PARTS LIST
SAFETY PRECAUTION:
Parts identified by the A\ symbol are critical for safety. Replace only with specified parts numbers.
For maximum reliability and performance, all other replacement parts should be identical to those specified.
NOTE:
e Parts not denoted by parts numbers are not supplied by JVC.
e Abbreviations in this list are as follows:
RESISTORS CAPACITORS
In the “Description” column: In the “Description” column:
All resistance values are in ohms (Q). Ail capacitance values are in microfarad (#F) unless
K expresses kilo-ohm (1 O00 ohms, kQ). otherwise indicated.
M expresses mega-ohm (106 ohms, MQ). P expresses picofarad (10-12 farad, pF).
In the “Parts Name” column: In the “Parts Name” column:
COMP. RESISTOR : Composition Resistor TRIM. CAPACITOR : Trimmer Capacitor
U.F. RESISTOR : Non-inflammable Resistor CER. CAPACITOR : Ceramic Capacitor
O.M.F. RESISTOR : Oxide Metalized Film Resistor E. CAPACITOR : Electrolytic Capacitor
FUSI. RESISTOR _: Fusible Resistor TAN. CAPACITOR : Tantalum Capacitor
M.P. RESISTOR : Metal Plate Resistor MPP CAPACITOR : Metalized Polypropylene
M.G. RESISTOR : Metal Graze Resistor Capacitor
M.F. RESISTOR : Metal Film Resistor O.F. CAPACITOR: Oil Film Capacitor
W.W. RESISTOR =: Wire Wound Resistor MPF CAPACITOR : Metalized Polyfilm Capacitor
F.M. CAPACITOR : Film Mica Capacitor
P.P. CAPACITOR : Polypropylene Capacitor
P.S. CAPACITOR : Polystyrene Capacitor
(rn Note: In the “Description” column of the parts list, (U) means the parts for the U version while
({E) is for the E Version.
SCV 1585-064 <——— for U version
SCV1585-067 Pe (E) |}<————- for E version
