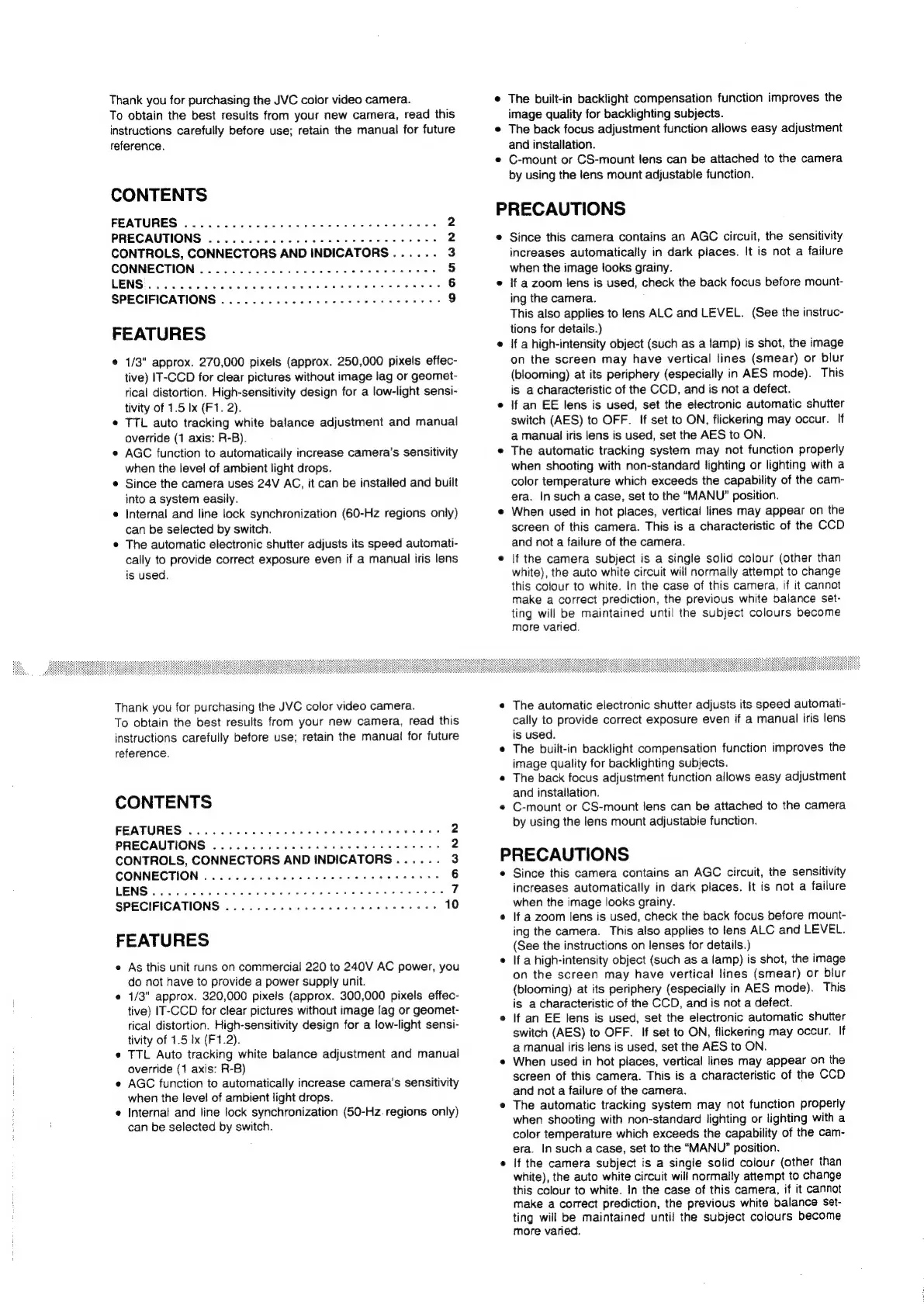

Thank you for purchasing the JVC color video camera.
To obtain the best results from your new camera, read this
instructions carefully before use; retain the manual for future
reference.
CONTENTS
FEATURES e522 30: occ tae etaugiesseite, 620 reve pewea e a a's 2
PRECAUTIONS .........- 2. cence eee ee eee 2
CONTROLS, CONNECTORS AND INDICATORS ...... 3
CONNECTION ... 0... eee ee ee eee 5
LENS 3 ois ecsos atelaca 5: pepe: Sala the Qe Sah le, Ge BIS er eesecaes 6
SPECIFICATIONS ......... 2.002 e eee eer eee 9
FEATURES
¢ 1/3" approx. 270,000 pixels (approx. 250,000 pixels effec-
tive) IT-CCD for clear pictures without image lag or geomet-
rical distortion. High-sensitivity design for a low-light sensi-
tivity of 1.5 Ix (F1. 2).
TTL auto tracking white balance adjustment and manual
override (1 axis: R-B).
* AGC function to automatically increase camera’s sensitivity
when the level of ambient light drops.
* Since the camera uses 24V AC, it can be installed and built
into a system easily.
e Internal and line lock synchronization (60-Hz regions only)
can be selected by switch.
e The automatic electronic shutter adjusts its speed automati-
cally to provide correct exposure even if a manual iris lens
is used.
Thank you for purchasing the JVC color video camera.
To obtain the best results from your new camera, read this
instructions carefully before use; retain the manual for future
reference.
CONTENTS
FEATURES oi ec uae yy ate a cee ean webs 2
PRECAUTIONS .4 506.4 heacaweiweee ti eeeeees 2
CONTROLS, CONNECTORS AND INDICATORS ...... 3
CONNECTION( 1202206. duvnaga iatenaa sweeten 6
LENS 5 eile eae a ean nad re nae ee enere 7
SPECIFICATIONS. iciaeecce te needed is tewsias 10
FEATURES
e As this unit runs on commercial 220 to 240V AC power, you
do not have to provide a power supply unit.
« 1/3" approx. 320,000 pixels (approx. 300,000 pixels effec-
tive) IT-CCD for clear pictures without image lag or geomet-
rical distortion. High-sensitivity design for a low-light sensi-
tivity of 1.5 Ix (F1.2).
e TTL Auto tracking white balance adjustment and manuai
override (1 axis: R-B)
e AGC function to automatically increase camera’s sensitivity
when the level of ambient light drops.
e Internal and line lock synchronization (50-Hz. regions only)
can be selected by switch.
¢ The built-in backlight compensation function improves the
image quality for backlighting subjects.
e The back focus adjustment function allows easy adjustment
and installation.
e C-mount or CS-mount lens can be attached to the camera
by using the lens mount adjustable function.
PRECAUTIONS
e Since this camera contains an AGC circuit, the sensitivity
increases automatically in dark places. It is not a failure
when the image looks grainy.
e if a zoom lens is used, check the back focus before mount-
ing the camera.
This also applies to lens ALC and LEVEL. (See the instruc-
tions for details.)
if a high-intensity object (such as a lamp) is shot, the image
on the screen may have vertical lines (smear) or blur
(blooming) at its periphery (especially in AES mode). This
is a characteristic of the CCD, and is not a defect.
e If an EE lens is used, set the electronic automatic shutter
switch (AES) to OFF. If set to ON, flickering may occur. If
a manual iris lens is used, set the AES to ON.
e The automatic tracking system may not function properly
when shooting with non-standard lighting or lighting with a
color temperature which exceeds the capability of the cam-
era. In such a case, set to the “MANU” position.
¢ When used in hot places, vertical lines may appear on the
screen of this camera. This is a characteristic of the CCD
and not a failure of the camera.
* If the camera subject is a single solid colour (other than
white), the auto white circuit will normally attempt to change
this colour to white. In the case of this camera, if it cannot
make a correct prediction, the previous white balance set-
ting will be maintained until the subject colours become
more varied.
The automatic electronic shutter adjusts its speed automati-
cally to provide correct exposure even if a manual iris lens
is used.
The built-in backlight compensation function improves the
image quality for backlighting subjects.
The back focus adjustment function allows easy adjustment
and installation.
¢ C-mount or CS-mount lens can be attached to the camera
by using the lens mount adjustable function.
PRECAUTIONS
e Since this camera contains an AGC circuit, the sensitivity
increases automatically in dark places. It is not a failure
when the image looks grainy.
e If a zoom lens is used, check the back focus before mount-
ing the camera. This also applies to lens ALC and LEVEL.
(See the instructions on lenses for details.)
If a high-intensity object (such as a lamp) is shot, the image
on the screen may have vertical lines (smear) or blur
(blooming) at its periphery (especially in AES mode). This
is a characteristic of the CCD, and is not a defect.
e If an EE lens is used, set the electronic automatic shutter
switch (AES) to OFF. If set to ON, flickering may occur. If
a manual iris lens is used, set the AES to ON.
e When used in hot places, vertical lines may appear on the
screen of this camera. This is a characteristic of the CCD
and not a failure of the camera.
e The automatic tracking system may not function properly
when shooting with non-standard lighting or lighting with a
color temperature which exceeds the capability of the cam-
era. In such a case, set to the “MANU” position.
© If the camera subject is a single solid colour (other than
white), the auto white circuit will normally attempt to change
this colour to white. In the case of this camera, if it cannot
make a correct prediction, the previous white balance set-
ting will be maintained until the subject colours become
more varied.
