UX-A7DVD
1-8 (No.22013)

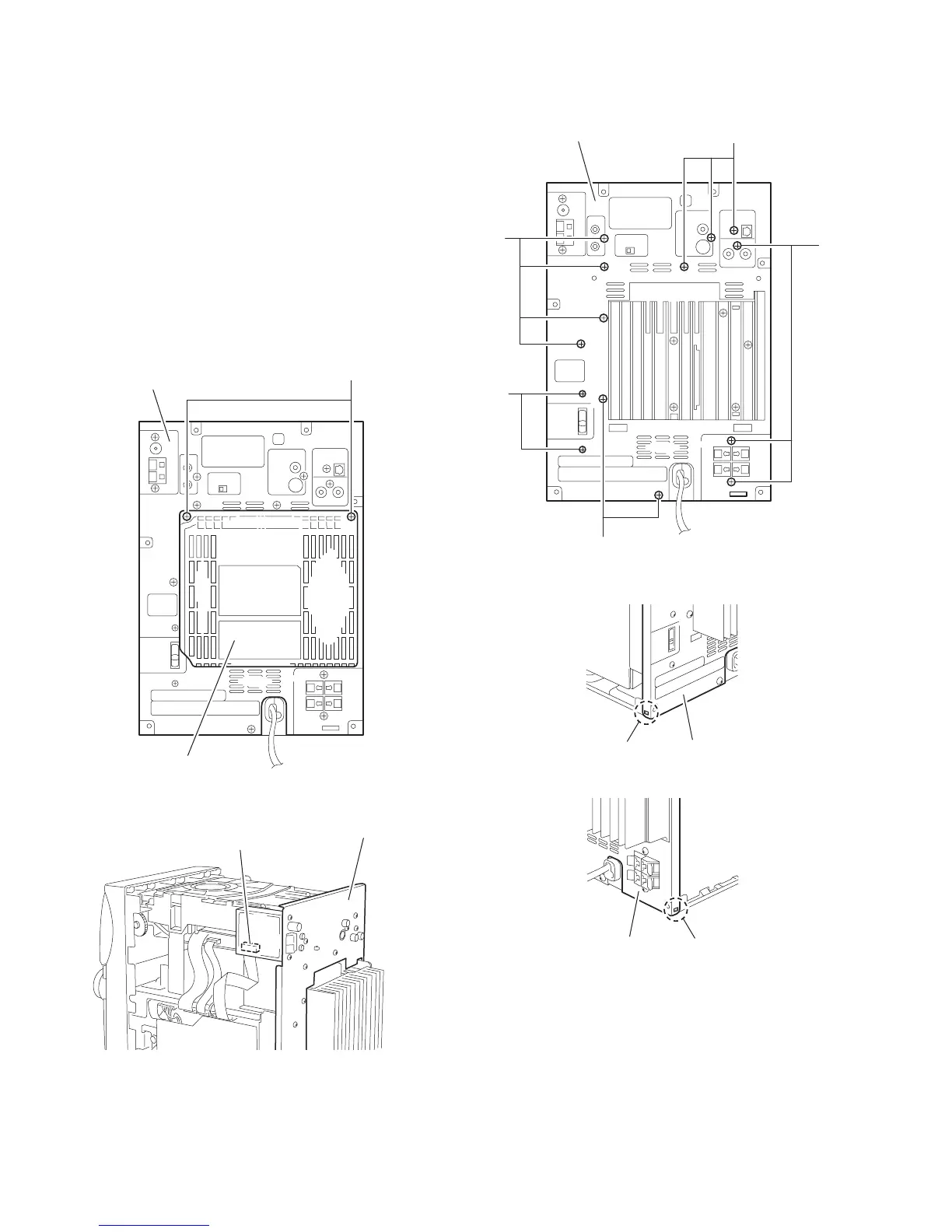

2.1.4 Removing the rear cover / rear panel
(See Fig.10~14)
• Prior to performing the following procedure, remove the metal
cover and the DVD mechanism assembly.
(1) Remove the two screws F on the back of the body.
REFERENCE:
There is no need to remove the metal cover.
(2) Disconnect the card wire from connector CN1 on the tuner
pack on the right side of the body.
(3) Remove the twelve screws G and the two screws H on the
back of the body.
(4) Release the two joints c on the lower right and left sides of
the rear panel.
REFERENCE:
The rear panel with the tuner pack comes off.
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Rear cover
Rear panel
F
Rear panel
Tuner pack
CN1
G
G
G
G
H
Rear cover
Rear panel
c
Rear panel
c
To Next Page
