(No.MB211)1-15
3.2 Front panel assembly section
• Remove the metal cover and front panel assembly.
3.2.1 Removing the front assembly section
(See Fig.20)
(1) From the inside of the front panel assembly, remove the
screw U attaching the earth wire.
Reference:
When attaching the screw U, attach the earth wire with it.
(2) Remove the four screws V attaching the front assembly
section.
(3) Take out the front assembly section from the front panel
assembly.

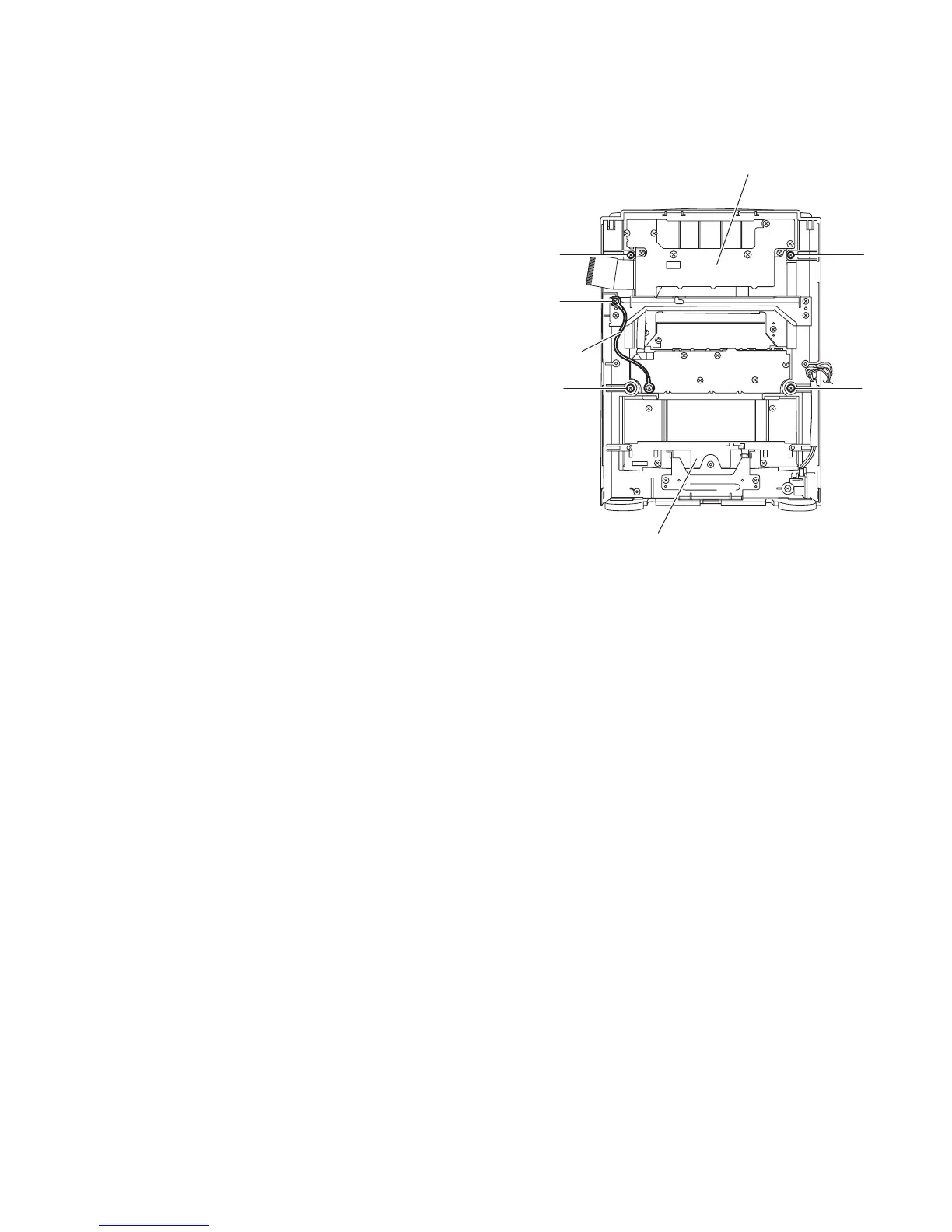

Fig.20
V
V
V
V
Front assembly section
Front panel assembly
U
Earth wire
To Next Page
