1-26 (No.MB211)
3.3.8 Removing the side (R) assembly
(See Fig.18 ~ 22)
• Prior to performing the following procedure, remove the tray
assembly.
(1) Push and release the two tabs m of the gear cover through
the two notches inside the side (R) assembly. Remove the
gear cover outward.
(2) Remove the spring attached to part n of the hook on the
right side of the body.
(3) From top of the body, turn the 1 gear clockwise to move the
elevator cam rearward.Move the two slots o and joint p of
the elevator cam as shown in Fig.21 and remove the ele-
vator cam outward.
(4) Remove the three screws K and detach the side (R) up-
ward.
Caution:
When reattaching the side (R) assembly, make sure to fit the
shaft (part q) into the slot of the select lever.

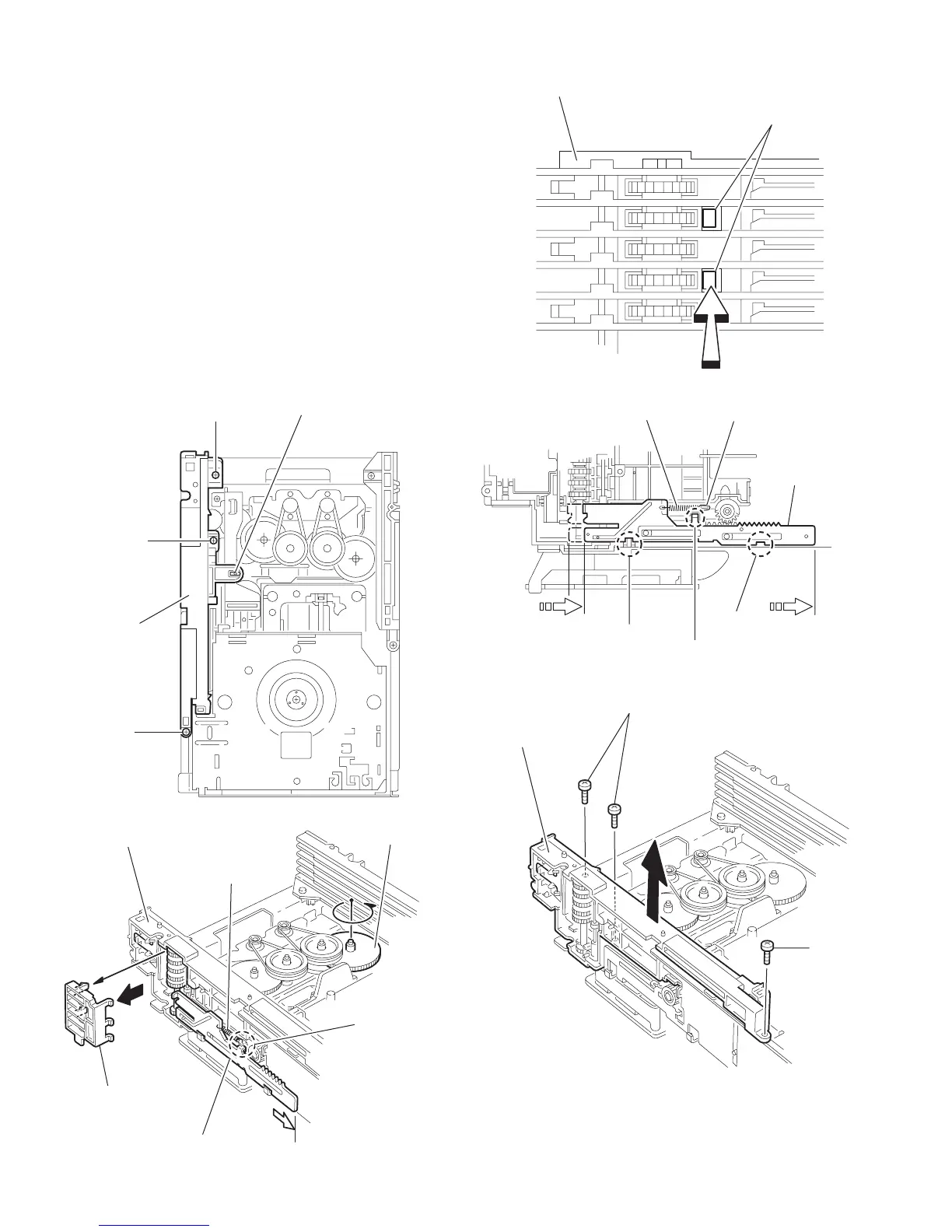

Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
K
Side (R)
assembly
K
K
q
Side (R) assembly
Sprihg
Gear cover
Elevator com
n
1 gear
m
Side (R) assembly
Elevator cam
Spring
n
o
o
p
Side (R) assembly
K
K
