3.3.12 Taking out the CD in play mode
(See Fig.36 ~ 39)
Attention:
Refer to “Removing the tray assembly”.
(1) Remove the top cover upward.
(2) Unlock the tray assembly and draw out the tray assembly
toward the front.
(3) From top of the body, turn the 1 gear clockwise to move the
lifter assembly upward.
(4) From top of the body, turn the 2 gear clockwise to move the
sub tray remaining inside the lifter assembly toward the
front, then pull out.
(5) Take out the CD on the sub tray.
(6) After clearing away the CD, insert the sub tray into the main
tray.
Caution:
When reattaching the sub tray, move the tray stopper on
the bottom of the main tray in the direction of the arrow
to lock the sub tray certainly.
(7) Push the tray assembly toward the body and reattach.

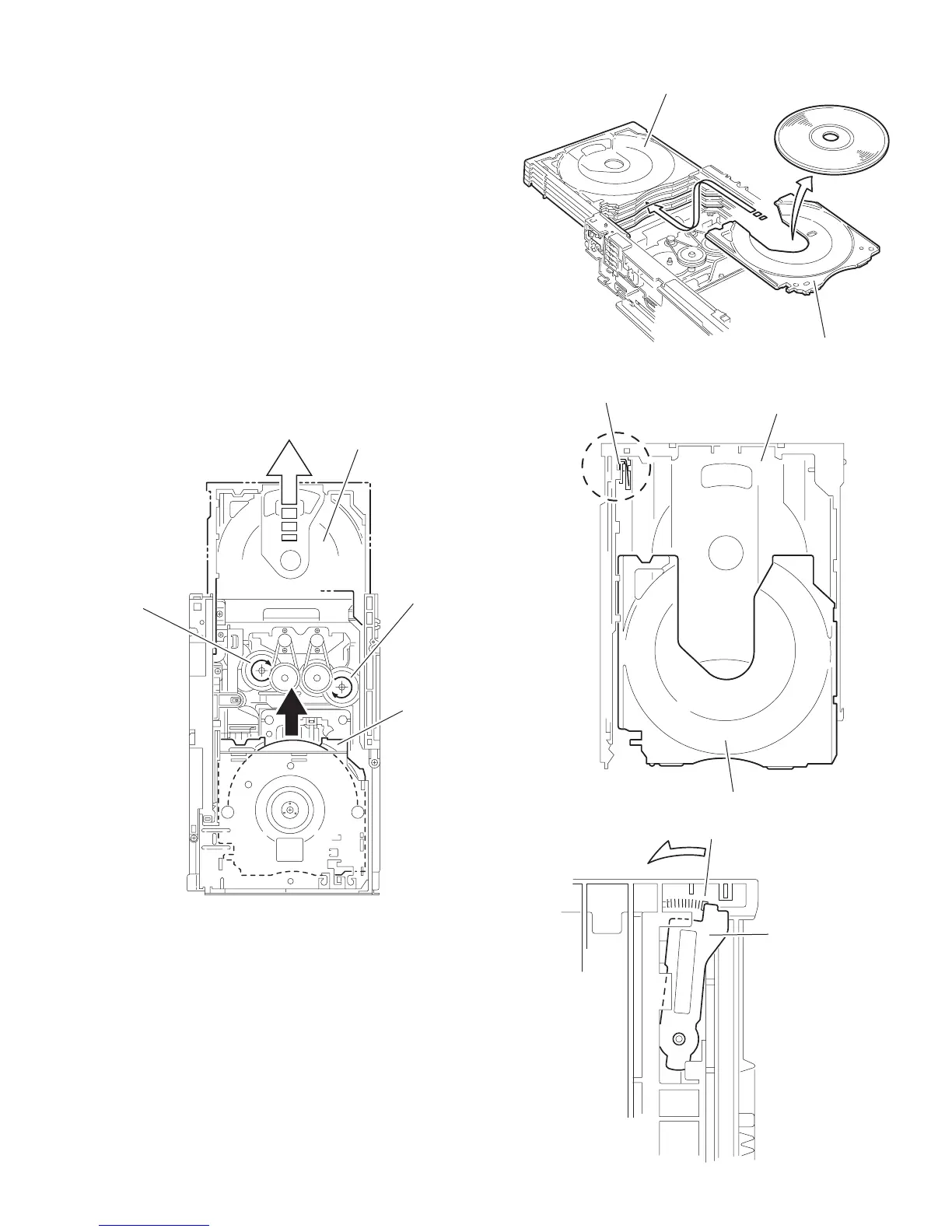

Fig.36
Fig.37
Fig.38
Fig.39
Sub tray
1 gear
Tray assembly
2 gear
Tray assembly
Sub tray
Main tray
Sub tray
Tray stopper
Tray stoppe
