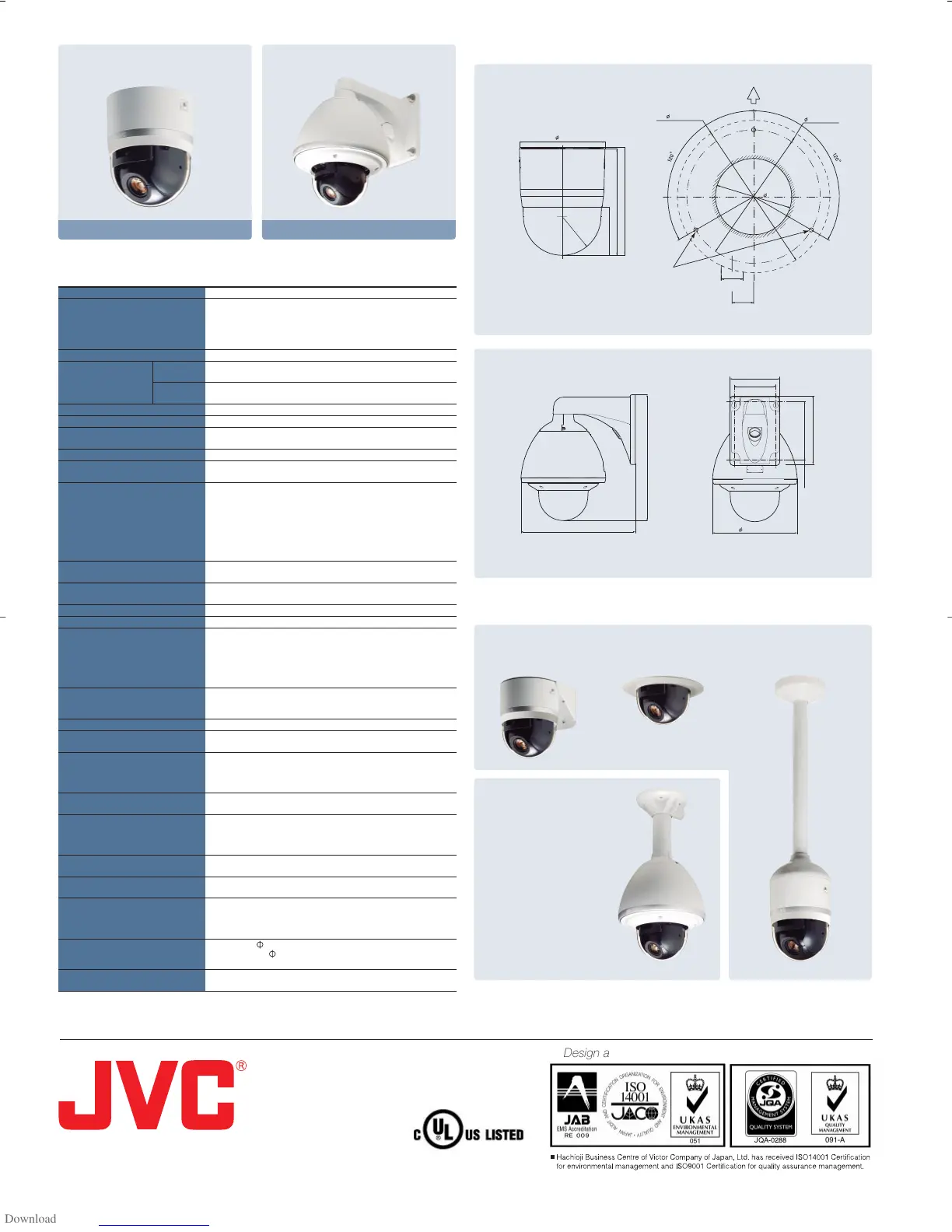

Printed in Japan
VEC-0324 VN-V686U / VN-V686WPU
“JVC” is the trademark or registered trademark of Victor Company of Japan, Limited.
Design and specifications subject to change without notice.
Copyright © 2008, Victor Company of Japan, Limited. All Rights Reserved.
• WB-S682U Wall mount
For VN-V686WPU
• WB-S685U* Ceiling recessed • WB-S681U Pendant mount
• WB-S684U Outdoor
pendant mount
■ Optional Accessories
For VN-V686U
■ Dimensions
VN-V686WPU
213(8 3/8)
176(6 7/8)20(3/4)
152(6)
126(5)
260 (10 1/4)
VN-V686U
201(7 7/8)
199(7 7/8)
90.5(3 5/8)
SR72.5
(2 7/8)
160 (6 1/4)
160(6 1/4)
23(7/8)
22.5
(7/8)
140(5 1/2)
Camera front
Screw hole
Camera unit
diameter
Screw holes
Position to pull out cables
Screw hole
Installation hole Installation hole
Installation hole
80(3 1/8) 80(3 1/8)
Unit: mm (inch)
Unit: mm (inch)
■ Specifications
Image device 1/4" IT CCD
Lens F1.6 (wide) to F4.5 (tele)
f=3.4mm to f=122mm
Automatic Day/Night IR cut filter
Focus: Manual/Easy AF/One push
Max. close-range: Approx. 1.8m (tele), 0.6m (wide)
Zoom 36x optical and 32x digital, total 1152x
Minimum illumination Color 1.0 lx (F1.6, 50% video, AGC SUPER)
0.5 lx (F1.6, 25% video, AGC SUPER)
B&W 0.08 lx (F1.6, 50% video, AGC SUPER)
0.04 lx (F1.6, 25% video, AGC SUPER)
Pan/Tilt range Pan: 360° endless / Tilt: -5 ° to 185°
Pan/Tilt speed 0.04°/sec to 400°/sec
Picture compression Motion JPEG: Variable (VFS)/Average (AFS) selectable
MPEG-4: Part 2 (ISO/IEC 1449602) CBR/VBR selectable, Profile: SP
Picture resolutions
640 x 480, 320 x 240
Frame rate and streaming
Up to 30fps per each stream of Motion JPEG and MPEG-4 in
640x480 resolution simultaneously (Full frame dual stream)
Image settings
Compression levels: VFS 7 steps, AFS 10KB-100KB (Motion JPEG)/
Bit rate adjustable (MPEG-4)
Image stabilizer
Monitor type
Other settings: AGC, BLC, White level, Black level, Gamma,
Enhance, Color level, Shutter speed, Day/Night
Overlay capabilities: Time, Date, Text (Camera ID, Preset title),
Privacy mask (8 areas), Motion Detection
PTZ function 100 preset positions, Auto flip, Auto pan, Auto trace, Auto patrol,
Auto return, Motion detect, Auto tracking
Security 3 levels password, IP address filtering, HTTPS encryption
(for setting)
Shutter speed 2 sec to 1/10000 sec
Max. clients 20 simultaneous users, Unlimited users by multicast
Alarm/Event management Events triggered by built-in motion detection, external inputs
or according to schedule.
Image upload over FTP, e-mail
Notification over TCP, UDP, e-mail and external outputs
Pre-and post alarm buffer of up to 8MB (approx. 2min. of
640x480 at 3 fps/JPEG stream)
Connectors RJ-45 for Ethernet 10Base-T/100Base-TX
Terminal block for 2 alarm input, 2 output
Alternative power connection
Dust and water protection IP66 (VN-V686WPU only)
Power VN-V686U: 24 VAC (50Hz/60Hz), 1.6A
VN-V686WPU: 24 VAC (50Hz/60Hz), 3A
Operating temperature VN-V686U: -10°C to 50°C/14°F to 122°F (0°C to 40°C/32°F to
104°F recommended)
VN-V686WPU: -40°C to 50°C/14°F to 122°F, always power on
(0°C to 40°C/32°F to 104°F recommended)
Installation and maintenance Web based setting tool, Camera search tool, Firmware update
over HTTP
Minimum web browsing Windows XP Pro (SP2)/Home (SP2), IE6.0, Pentium4 (1.5GHz),
requirements 1GB memory
Display and video card: 1024x768 True color (24bit or 32 bit)
256MB VRAM
System integration support Open API for application integration, ActiveX Viewer, QoS,
Embedded Linux operating system
Supported protocols TCP/IP, UDP/IP, FTP, ICMP, ARP, DHCP, SNTP, HTTP, DSCP,
SMTP, RTP, IGMP
Video management hardware VR-N900U/1600U/1600E: JVC Network video recorder for
and software viewing, recording and archiving up to 9/16 cameras.
VN-RS800U: JVC free video management software for viewing,
recording up to 32 cameras (JPEG stream only)
Dimensions (WxHxD) VN-V686U: 160mm x 201mm (H)
VN-V686WPU: 260mm (incl. housing) x 385mm (H: incl.
bracket) x 350mm (D: incl. bracket)
Weight VN-V686U: 1.9kg (4.2lbs)
VN-V686WPU: 5.5kg (12.2lbs)
Ready for direct mount With wall mount housing
DISTRIBUTED BY
VN-V686WPU Outdoor model
VN-V686U Indoor model
* Note: WB-S685U ceiling recessed bracket is not available on the US market due to specific building code regulations.
vnv_686u_wpu0317.qxd 08.3.19 11:57 AM Page 1
