JVC VS-DT2000R Service Manual

VS-DT2000
1-7
Fig.1
Fig.2
Fig.3
Fig.4
A
B
C
A
Top lens
Top panel
Bottom panel
Bottom panel
bb
Top panel
a
Front panel assembly

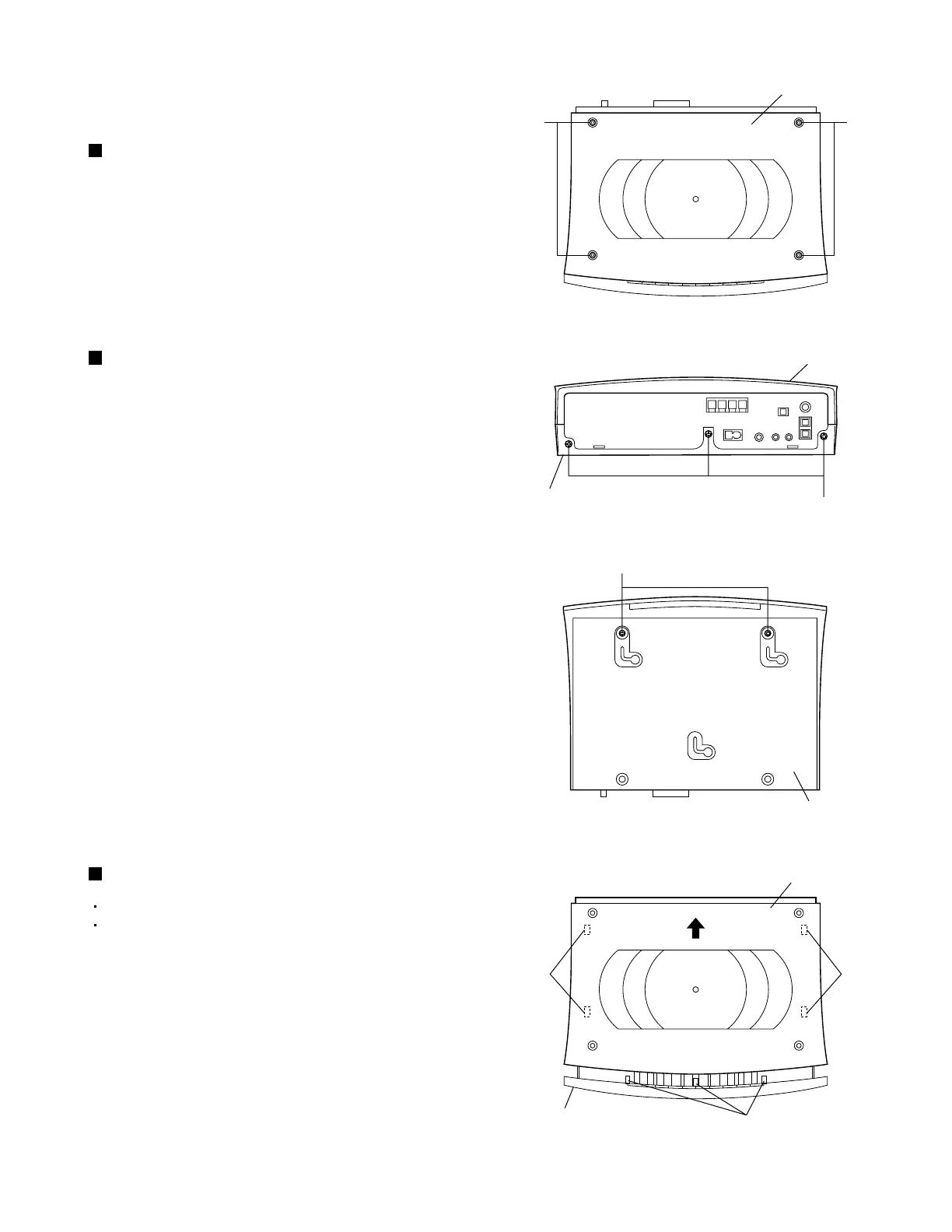

Disassembly method
<Main body section>
Removing the top lens (See Fig. 1.)
From the top side of the main body, remove the
four screws A attaching the top lens.
Removing the bottom panel
(See Figs. 2 and 3.)
1.
2.
3.
From the rear side of the main body, remove the
three screws B attaching the bottom panel.
From the bottom side of the main body, remove the
two screws C attaching the bottom panel.
Remove the bottom panel in an upward direction.
1.
2.
Slide the top panel toward the rear (direction of the
arrow), disengage it from the engagement sections
a of the front panel assembly and engagement
sections b of the bottom chassis.
Remove the top panel in an upward direction.
Removing the top panel (See Fig. 4.)
Remove the top lens.
Remove the bottom panel.
