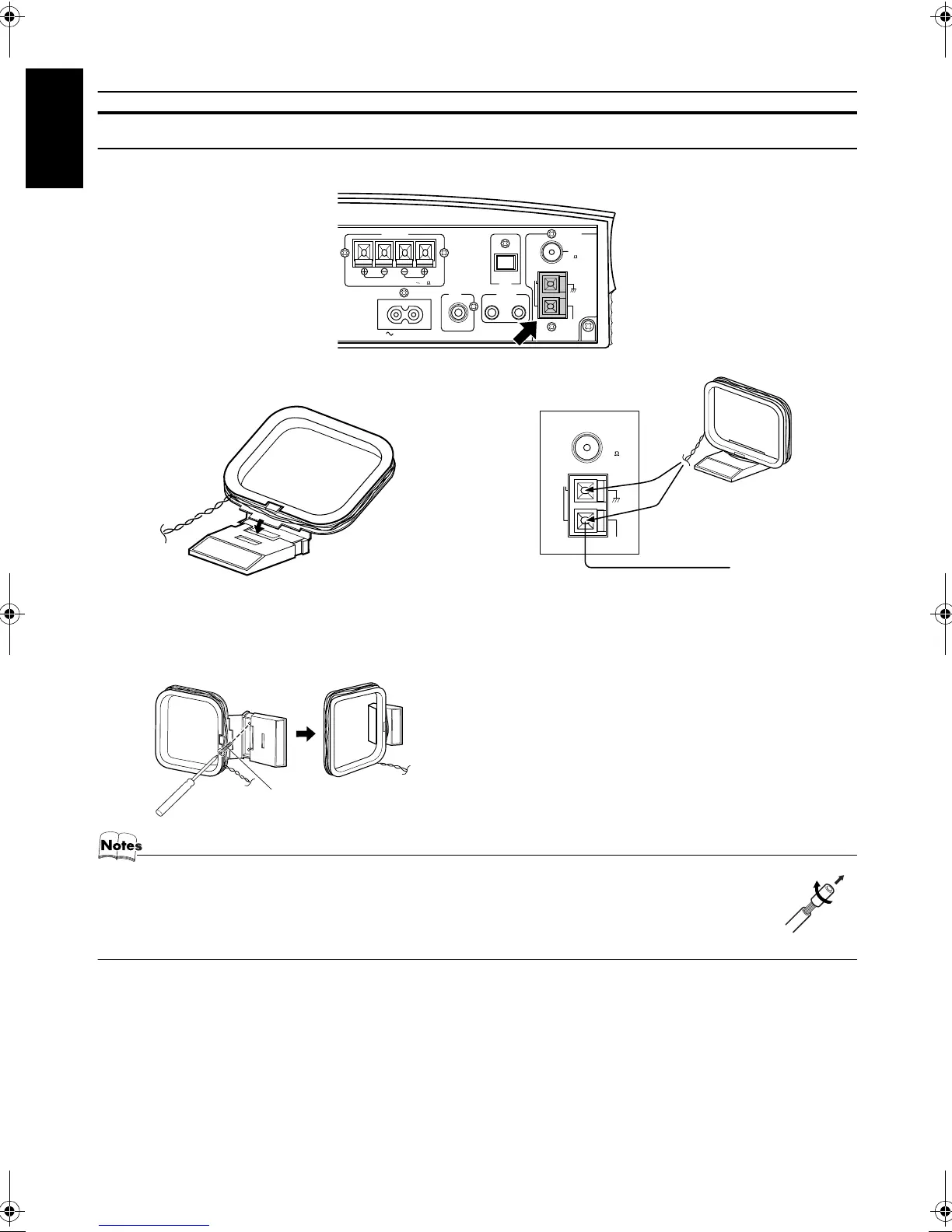

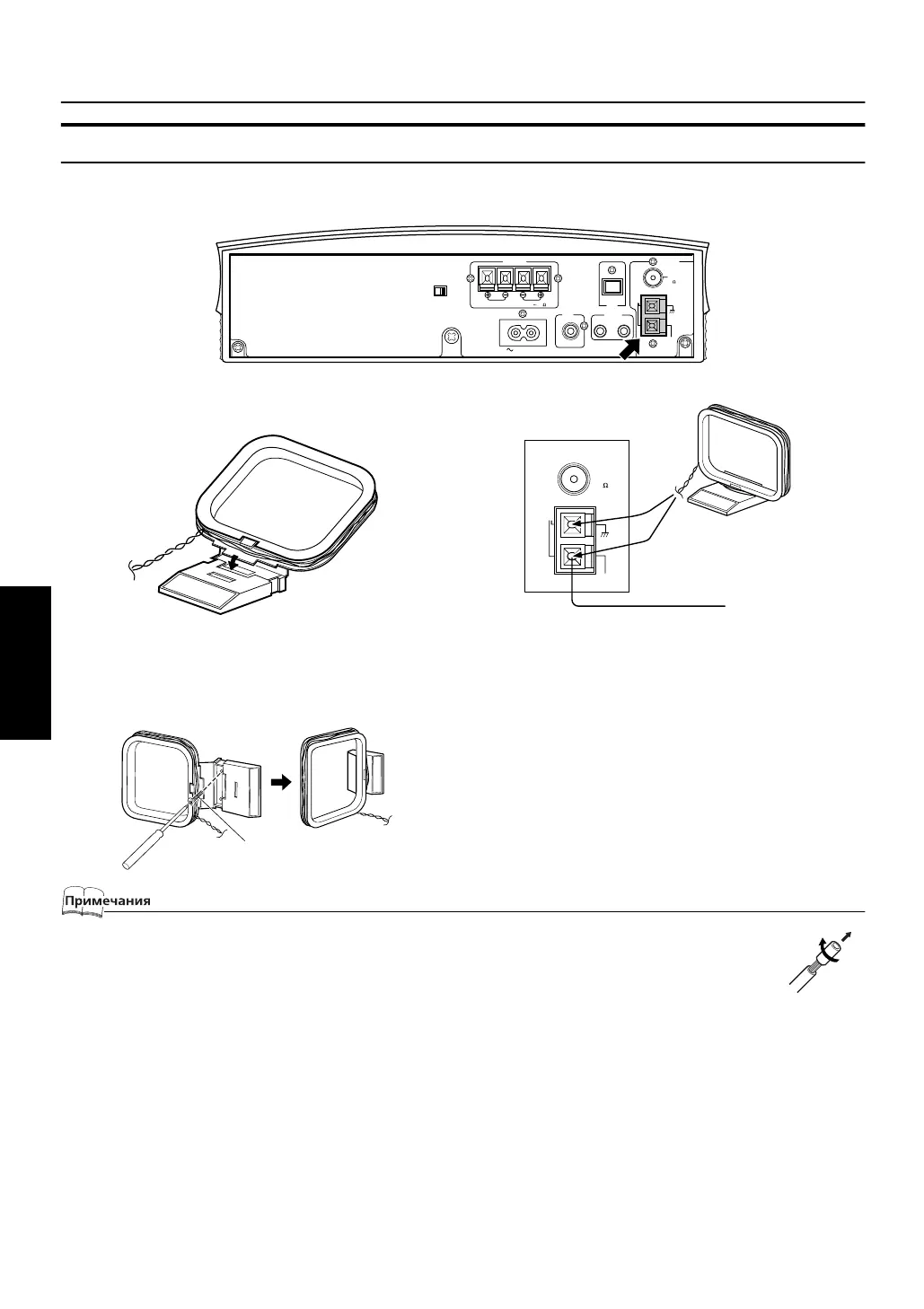

Connecting the AM Antenna
Rear Panel of the Center Unit (CA-
VSDT2000)
• The AM loop antenna can be attached to a wall.
• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as shown in the diagram.
• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord.
This could cause poor reception.
• If reception is poor, connect an outdoor single vinyl-covered wire to the AM EXT terminal. (Keep the AM loop
antenna connected.)
ANTENNA
OUT IN
SPEAKERS
AC IN
AM
EXT
FM
(
75
)
COAXIAL
AM
LOOP
R
L
MD/AUX
SUB
WOOFER
CD DIGITAL
OUT
SPEAKER IMPEDANCE 4 16
Attach the AM loop to its base by snapping the tabs
on the loop into the slot in the base.
AM loop antenna (Supplied)
AM
EXT
FM
(
75
)
COAXIAL
AM
LOOP
ANTENNA
Turn the loop until you have the best reception.
Outdoor single vinyl-
covered wire
(not supplied)
Screw (not supplied)
