1-16 (No.MB487)
3.1.8 Removing the headphone amplifier board
(See Fig.16)
• Remove the metal cover, front panel assembly and main
board.
(1) Remove the screw N attaching the headphone amplifier
board on the main body.
(2) Remove the joint q in the direction of the arrow and take out
the headphone amplifier board.
Reference:
When attaching the headphone amplifier board, attach it after
fitting the projections r of the main body in the holes of the
headphone amplifier board.

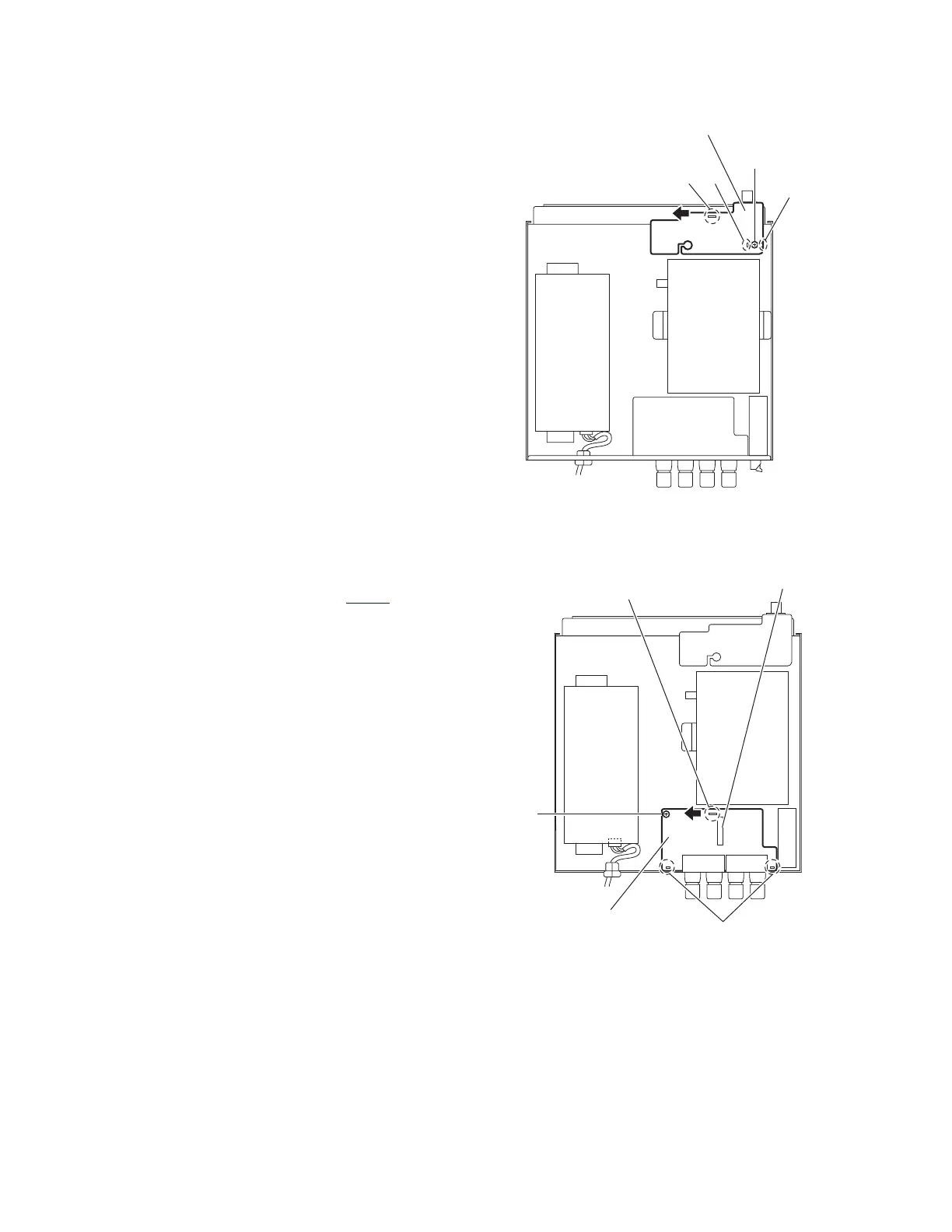

Fig.16
3.1.9 Removing the speaker terminal board
(See Fig.17)
• Remove the metal cover, front panel assembly, rear panel,
tuner and main board.
(1) Disconnect the wire from the connector CN611
on the
speaker terminal board.
(2) Remove the screw P attaching the speaker terminal board.
(3) Remove the joint s in the direction of the arrow and take out
the speaker terminal board.
Reference:
When attaching the speaker terminal board, attach it after fit-
ting the projections t of the main body in the holes of the speak-
er terminal board.
Fig.17
Headphone amplifier board
N
q
r
r
CN611
Speaker terminal board
P
t
s
