This document describes the accessories assembly for K-array column loudspeakers, specifically the Kobra-KK, Python-KP, and Kayman-KY line array loudspeakers. It also details specific accessories for the Kobra-KK102 line array loudspeaker.

Function Description:

The accessories described in this manual are designed to provide various mounting, positioning, and support solutions for K-array column loudspeakers. These accessories facilitate the deployment of the loudspeakers in different configurations, including floor-standing, wall-mounted, and stacked setups, ensuring optimal sound directivity and stability. The manual provides step-by-step instructions for assembling each accessory, emphasizing safety and proper installation techniques.

Important Technical Specifications:

K-FOOT3: This accessory is used for floor-standing applications.
- Dimensions: 105mm (4.14in) height, 59mm (2.32in) width. The hinge assembly adds to the overall dimensions, with a base of 90mm (3.54in) x 97mm (3.82in) and a height of 118mm (4.64in).
- Assembly: Involves attaching a hinge to the K-FOOT3 and then screwing a steel pivot to an M20 hole.
K-JOINT3: Designed for connecting column speakers and adjusting their tilt.
- Assembly: Hinges are attached to both ends of the column speaker. A tilting ruler connects to the bottom hinge.
K-FLY3: Used for flying (suspending) loudspeakers.
- Dimensions: 560mm (22.05in) length, 150mm (5.91in) width, 30mm (1.18in) thickness. The mounting plate has a width of 25mm (0.98in).
- Assembly: The K-FLY3 terminal is attached to the flybar. For up-tilting configurations, the terminal is mounted backward. The hinge is then assembled to the flybar terminal.
K-PMOUNT: A pole mount accessory for column loudspeakers.
- Dimensions: 150mm (5.91in) height. The mounting bracket has a diameter of 35mm (1.38in) and a width of 58mm (2.28in).
- Assembly: Attached directly to the column loudspeaker.
K-WALL2: A wall-mounting bracket.
- Assembly: Requires disassembling the lateral plate, drilling two holes 122mm (4.80in) apart on the surface, installing the bracket, unscrewing the back plate of the loudspeaker, and then assembling the bracket to the loudspeaker.
K-WALL2L: A longer wall-mounting bracket.
- Assembly: Involves removing the bottom screw of the bracket, drilling two holes 180mm (7.08in) apart on the surface, installing the bracket with the K-shaped hole, unscrewing the back plate of the loudspeaker, and then matching and fixing the two parts of the bracket.
K-KBASEFL (for Kobra-KK102 only): A floor-standing base for the Kobra-KK102.
- Dimensions: 300mm (11.8in) x 300mm (11.8in) base, with a total height of 486mm (19.1in) for the column and 507mm (20.0in) for the base and column combined.
- Assembly: Involves passing a speaker cable through a hole in the plate, securing the K-KBASEFL to a supporting surface, plugging a jumper cable to the loudspeaker, and assembling the K-KJUNCT1.
K-KBASEFT (for Kobra-KK102 only): A floor-standing base with a shorter column.
- Dimensions: 300mm (11.8in) x 300mm (11.8in) base, with a total height of 560mm (22.0in) for the column and 507mm (20.0in) for the base and column combined. The base has a thickness of 40mm (1.6in) and a foot height of 45mm (1.8in) with 8mm (0.3in) clearance.
- Assembly: Similar steps to K-KBASEFL assembly, allowing up to 2x Kobra-KK102 loudspeakers to be aligned on top using the K-KJUNCT1.
K-KBASETK (for Kobra-KK102 only): A ground-stake base.
- Dimensions: 300mm (11.8in) x 300mm (11.8in) base, with a total height of 1000mm (39.4in) for the stake and 507mm (20.0in) for the column. The stake has an 8mm (0.3in) thickness.
- Assembly: Requires digging a hole and driving the K-KBASETK into the ground, then following the K-KBASEFL assembly steps.
K-KJUNCT1 (for Kobra-KK102 only): A junction accessory for connecting multiple Kobra-KK102 loudspeakers.
- Dimensions: 27mm (1.1in) width, 45mm (1.8in) height, 59mm (2.3in) depth. The full shield has a length of 1003mm (39.5in) and a width of 48mm (1.9in).
- Assembly: Used to align and connect up to 4x Kobra-KK102 loudspeakers by repeating steps for jumper cable connection and shield attachment.

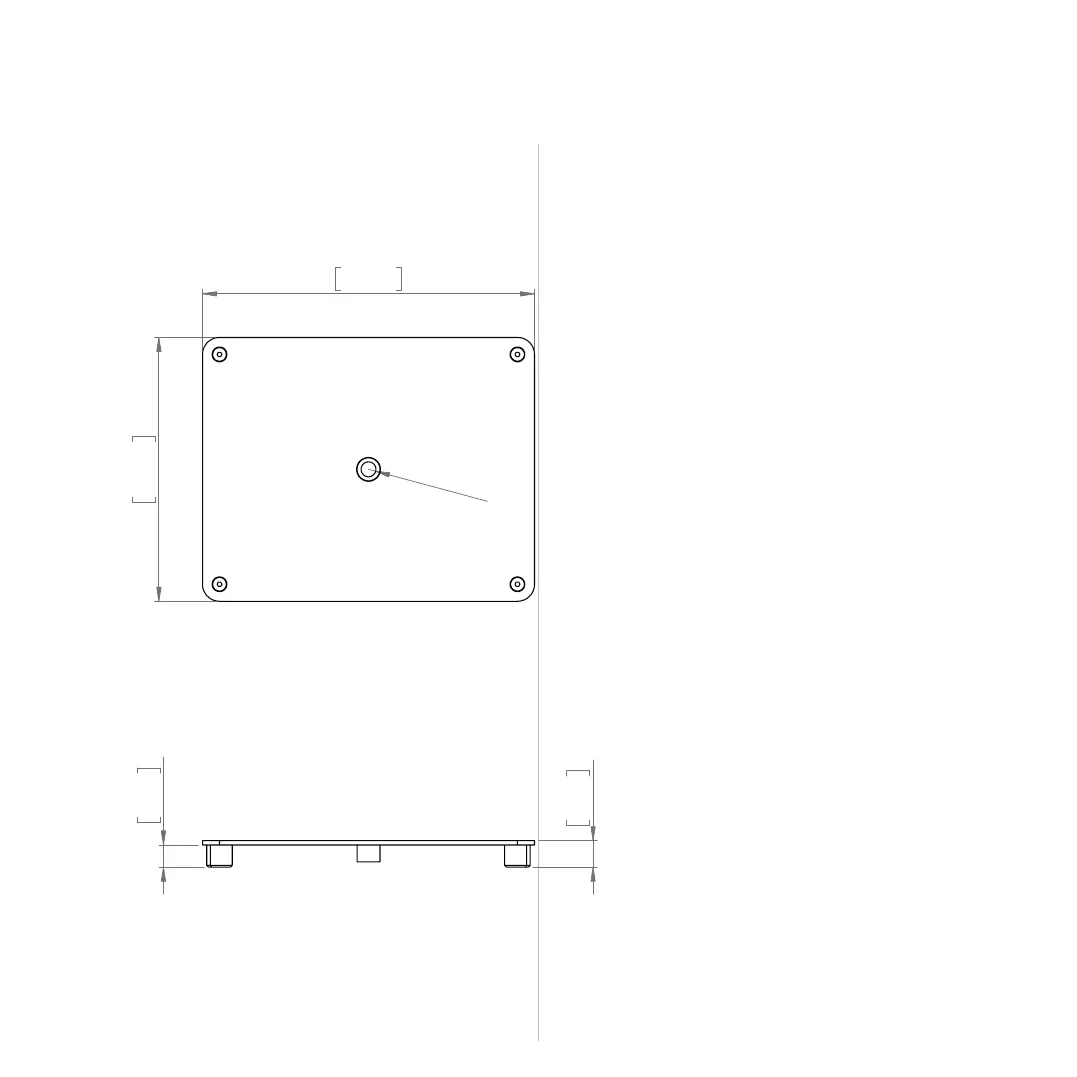

K-KBASE3: A floor-standing base for Kobra-KK, Python-KP, and Kayman-KY line array loudspeakers. Also allows installation of column loudspeakers on top of Thunder-KS4 I / KS4P I subwoofers.
- Dimensions: 390mm (15.4in) x 310mm (12.2in) base, with a thickness of 26mm (1.0in) and a foot height of 31mm (1.2in). Features an M20 threaded hole.
- Assembly: Involves assembling the K-FOOT3 on top of the K-KBASE3 and using the joint to attach the column loudspeaker. For subwoofer integration, rubber feet are removed from the K-KBASE3, four M8 screws are unscrewed from the top of the Thunder-KS4 I / KS4P I, and the K-KBASE3 is fixed with four M8 screws on top of the subwoofer, then the K-FOOT is assembled on top of the K-KBASE3.

Usage Features:

Versatile Mounting: The range of accessories allows for flexible deployment in various environments, from permanent installations to temporary setups.
Adjustable Directivity: Accessories like the K-JOINT3 enable adjustment of the tilting angle of the loudspeakers, allowing control over the system's sound directivity.
Modular Design: The K-KBASEFL, K-KBASEFT, and K-KJUNCT1 for the Kobra-KK102 allow for stacking multiple loudspeakers to create longer arrays, enhancing coverage and SPL.
Secure Installation: All accessories are designed for secure attachment to both the loudspeakers and the mounting surfaces, with clear instructions for tightening sequences and screw types.
Impedance and Directivity Settings: Users are reminded to check and set the loudspeaker impedance and SPOT/FLOOD directivity pattern before proceeding with installation steps involving the loudspeaker itself.

Maintenance Features:

Pre-Installation Inspection: Users are instructed to carefully inspect the shipping carton and the device for any damage upon arrival. Any damage should be immediately reported to the shipping company.
Rigging Component Inspection: Key rigging components must be inspected before each use. Any defective or suspect components should be replaced with approved parts.
Use of Rated Hardware: Emphasizes the use of properly rated rigging hardware for all installations.
Professional Installation: Rigging and flying loudspeaker systems should be accomplished by knowledgeable and experienced professionals, highlighting the importance of expertise for safety and proper function.
Compliance with Regulations: Users are responsible for ensuring that the use and suspension of heavy loudspeaker systems conform to all applicable laws and regulations in force at the time and location.
Clearance and Stability: For stacked systems, ensuring minimum clearances and securing the stack to the ground is crucial to prevent damage from external factors like wind or vibrations.
No Unauthorized Modifications: K-array disclaims responsibility for products modified without prior authorization.
Volume Control: Before powering on or off, all devices should have their volume levels set to minimum to prevent sudden loud noises or damage.
Impedance Matching: Users must observe the amplifier's rated load impedance, especially when connecting speakers in parallel, to avoid damaging the apparatus.
Cleaning: Clean the product only with a soft and dry fabric. Avoid using liquid cleaning products, as they may damage the product's cosmetic surfaces.
UV Protection: Avoid placing the product in direct sunlight or near any appliance that generates UV (Ultra Violet) light, as this may change the product's surface finishing and cause a color change.
Environmental Protection: The product should not be disposed of with other household waste. It should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.
