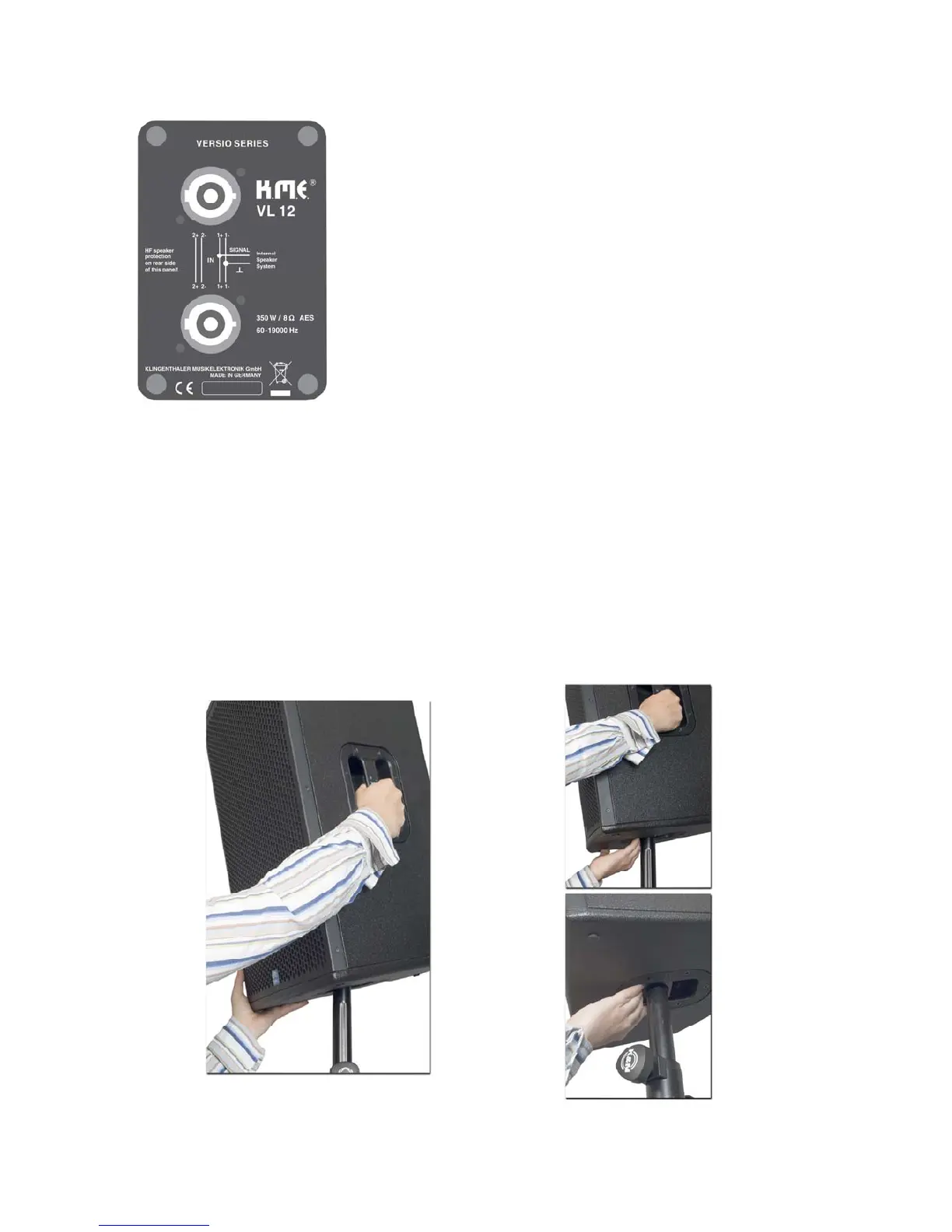

Connection panel VL 12:
Plug in the Speakon connector into the
Speakon socket and turn right to snap in,
when disconnect pull locking device backwards
and turn left to pull out the plug.
connection sockets are parallel to reconnect a top unit (passive, impedance 8 Ohm);
input = output; signal at 1+/1-, 2+/2- for the bi-amp mode
The swivelling flange with a variable tilt angle:
Attention! An incorrect use can cause bruises on your hands.
Please follow the instructions!
correct wrong!
