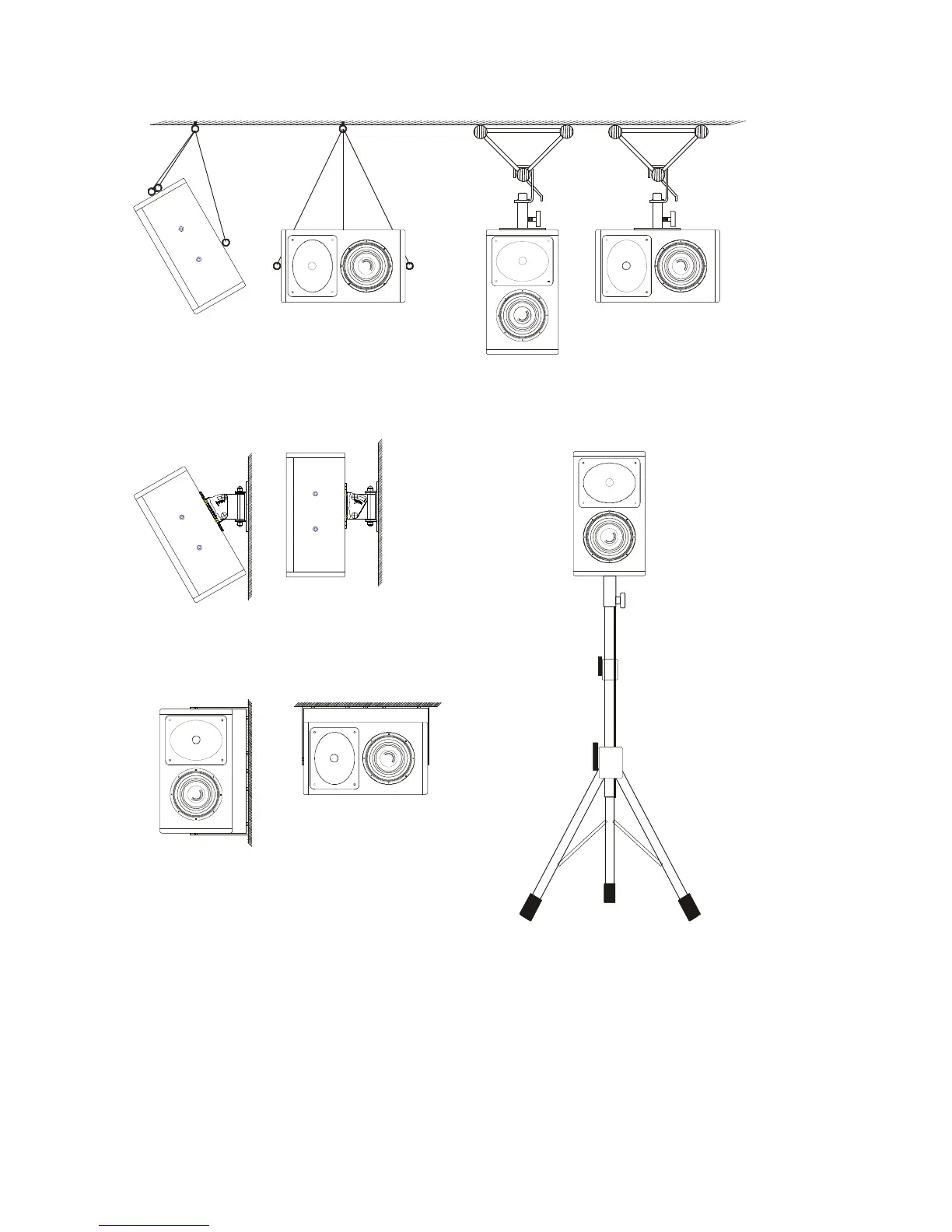

Installation examples of VL 6 i:
vertical or horizontal installation
with 3x M8 eyebolts
vertical or horizontal installation with
mounting plate + TV-spigot + truss adapter
installation with wall mount
vertical or horizontal installation with U-bracket
application on high stand
using reducer flange
L-bracket VL 6 i (no.1-910-051);
U-bracket VL 6 i (no.1-910-050), U-bracket VL 8 i (no.1-910-043), U-bracket VL 10 i
(no. 1-910-056), U-bracket VL 12 i (no.1-910-044), U-bracket VL 15 i (no.1-910-045);
wall mount VL 6 i / VL 8 i / VL 10 i / VL 12 i (no.2-512-019), wall mount VL 15 i (no 2-512-021);
mounting plate with TV-spigot (no.2-512-007); reducer flange (no. 2-430-003);
adapter for high stand (no. 2-512-003); M8 eyebolts (no.5-350-000),
cluster mounting plate (no. 1-910-058)
