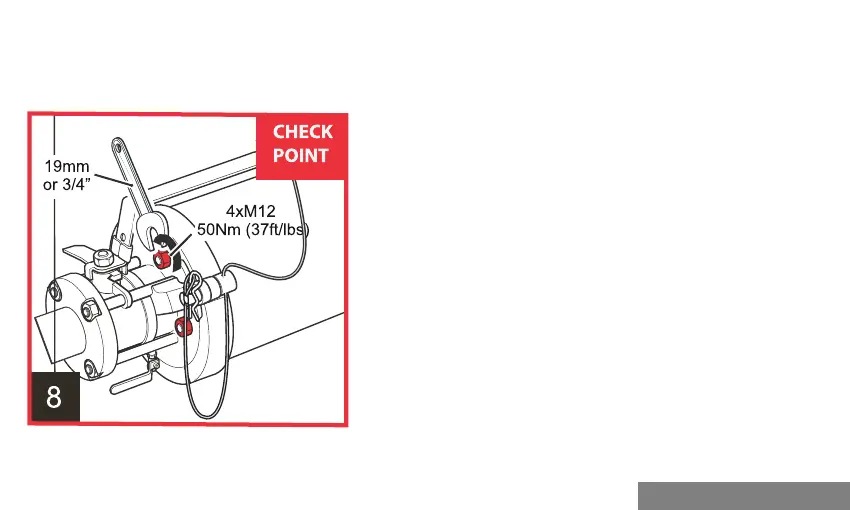

Fit the four M12 nuts to the bolts holding the
sensor to Isolation valve and screw them on with
a 19 mm or ¾” wrench.
Important: Do not tighten the nuts too hard, set
the torque at 50 Nm (37 ft/lbs).
DO NOT PROCEED UNTIL YOU
HAVE COMPLETED THIS STEP!
Sensor insertion
