K-Patents SAFE-DRIVE PR-23-SD User Manual

Sensor insertion

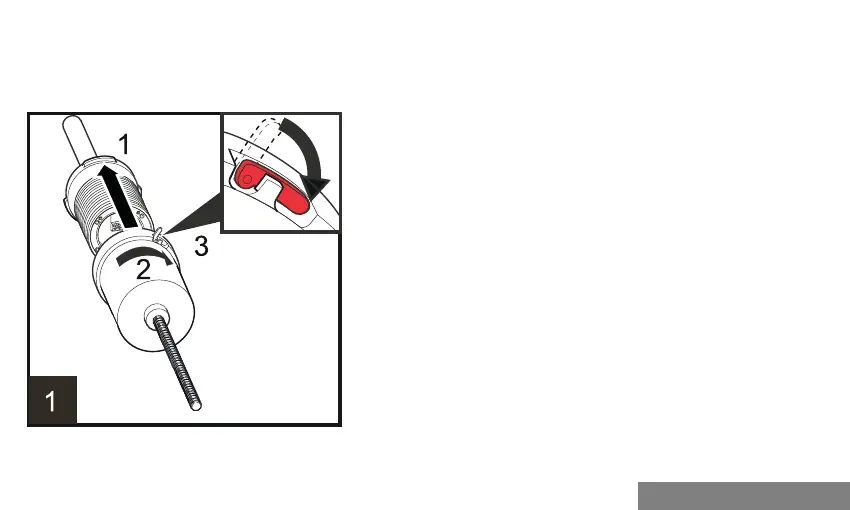

1. Insert the sensor into Inner casing. Make sure that
the sensor cable gland has been taken off. Match the
bayonet closing with sensor flange so that the latch
is slightly to the left of the top and the sensor cable
passage is straight down.
2. When sensor flange is flush with the bottom of
Inner casing, rotate Inner casing 60 degrees
clockwise to lock it to the flange.
3. Push down locking latch to secure the connection.
