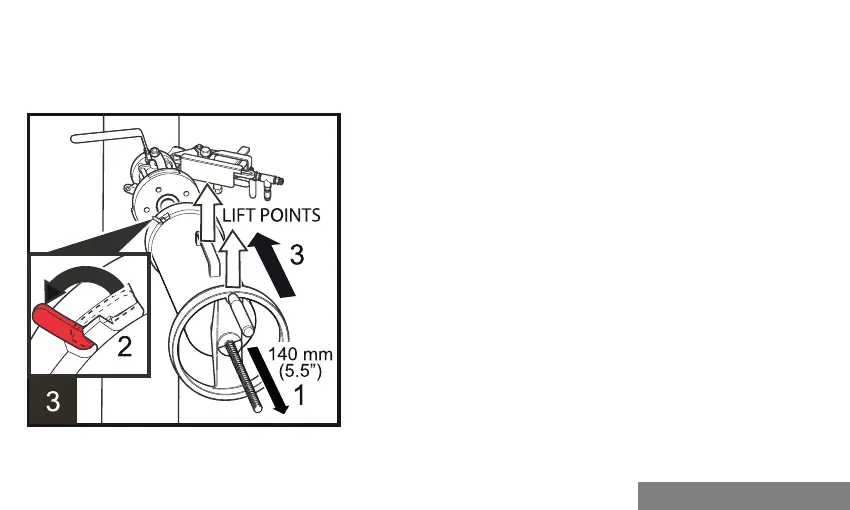

1. The sensor should now be inside Retractor and
about 140 mm (5.5”) of the screw thread should stick
out of the middle of the wheel.
2. Unlock the latch on Outer casing.
3. Take a firm hold of the hand-wheel and handle and
lift Retractor (with sensor) over the isolation valve
flange. Keep handle up.
Sensor insertion
