 Plug the Audio connector into the Unbalanced Out of the microphone receiver (D)
(D)(D)
(D).
 Insert the wireless microphone receiver into the option slot (E)
(E)(E)
(E).
 Find the plate with the oval hole cut-out from in the included accessory kit. Re-install the four
screws into the new cover plate with the hole cut-out (F)
(F)(F)
(F).

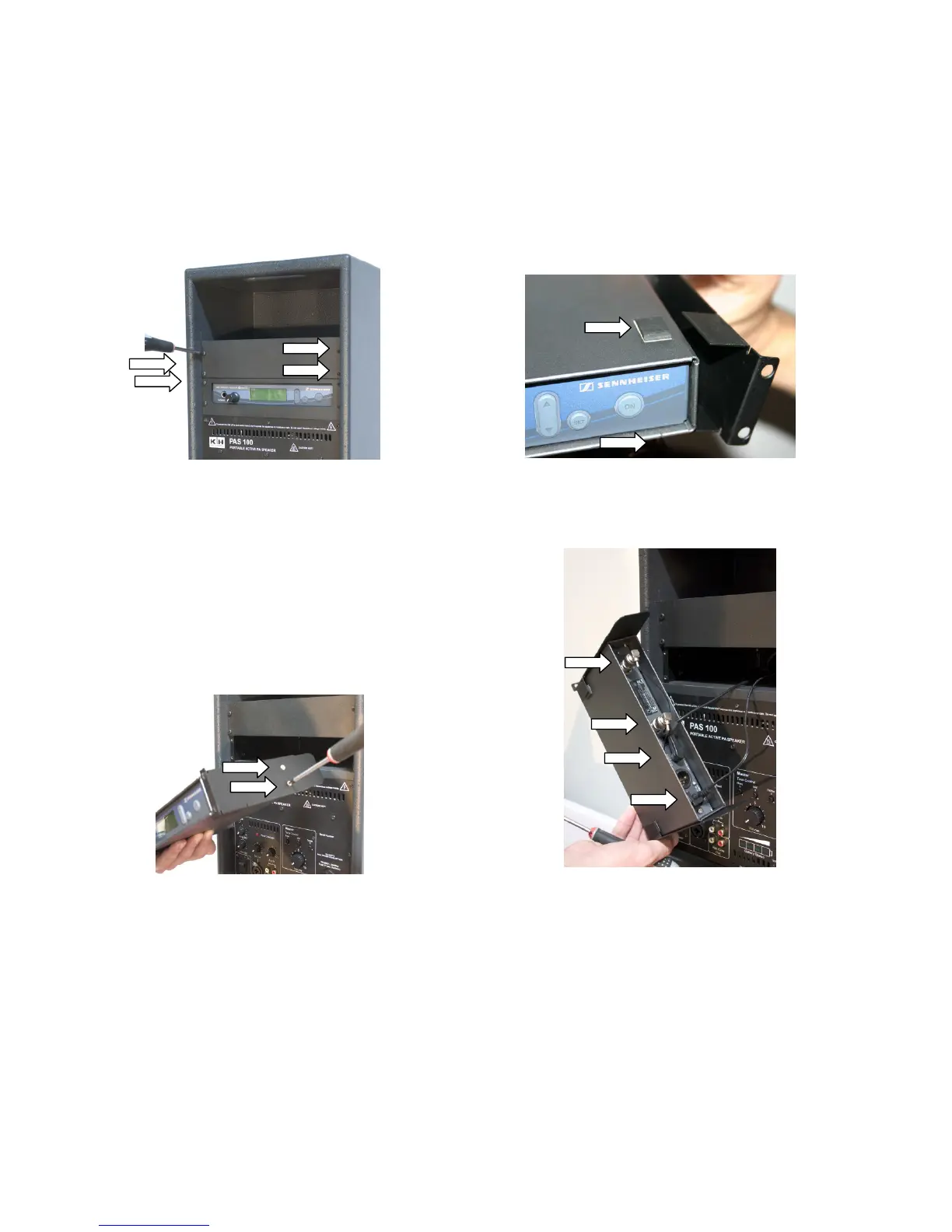

Audio Connection
A
AA
A-
--
- Unscrew the Blank Panel B
BB
B- Attach adhesive Feet in 4 Places
C
CC
C- Attach Rack Ears on Each Side D
DD
D-
--
- Attach the Audio, Power and
Two Antenna Connections
