K-Tool PRO Series - Parts for Model KTI-63505

10
1
2
13
8
9, 10
11
12
14
5
4
6
3
7
15
16
17
Replacement parts for Model 63505
Item Part# Description Qty
1 324-4-1900-208 Screw Assembly 2
2 G37-3-1320-109 Bracket 2
3 G37-3-1806-105 Handle 1
4 G36-3-1900-100 Lift Pedal 1
5 G36-6-1809-102 Release Valve Pedal 1
6 G37-6-1319-102 Support Bar 4
7 G37-3-3300-103 Base Half 2
8 651-1-0127-100 Bolt 4
9 G37-4-5200-105 Caster w/o Brake 2
10 G37-4-5201-107 Caster w/ Brake 2
11 G36-3-2300-101 Tilt Screw Assembly 1
12 G36-3-2301-103 Tilt Screw Assembly 1
13 G37-3-4200-104 Saddle Plate 1
14 G52-4-4102-101 Chain & Hook 2
15 G37-3-2903-209 Saddle Support Bar 4
16 G37-3-2902-207 Saddle Adjustable Bracket 2
17 G37-3-2901-205 Saddle Support Seat 1
- G37-3-9901-109 Repair Kit for Hydraulic Unit -

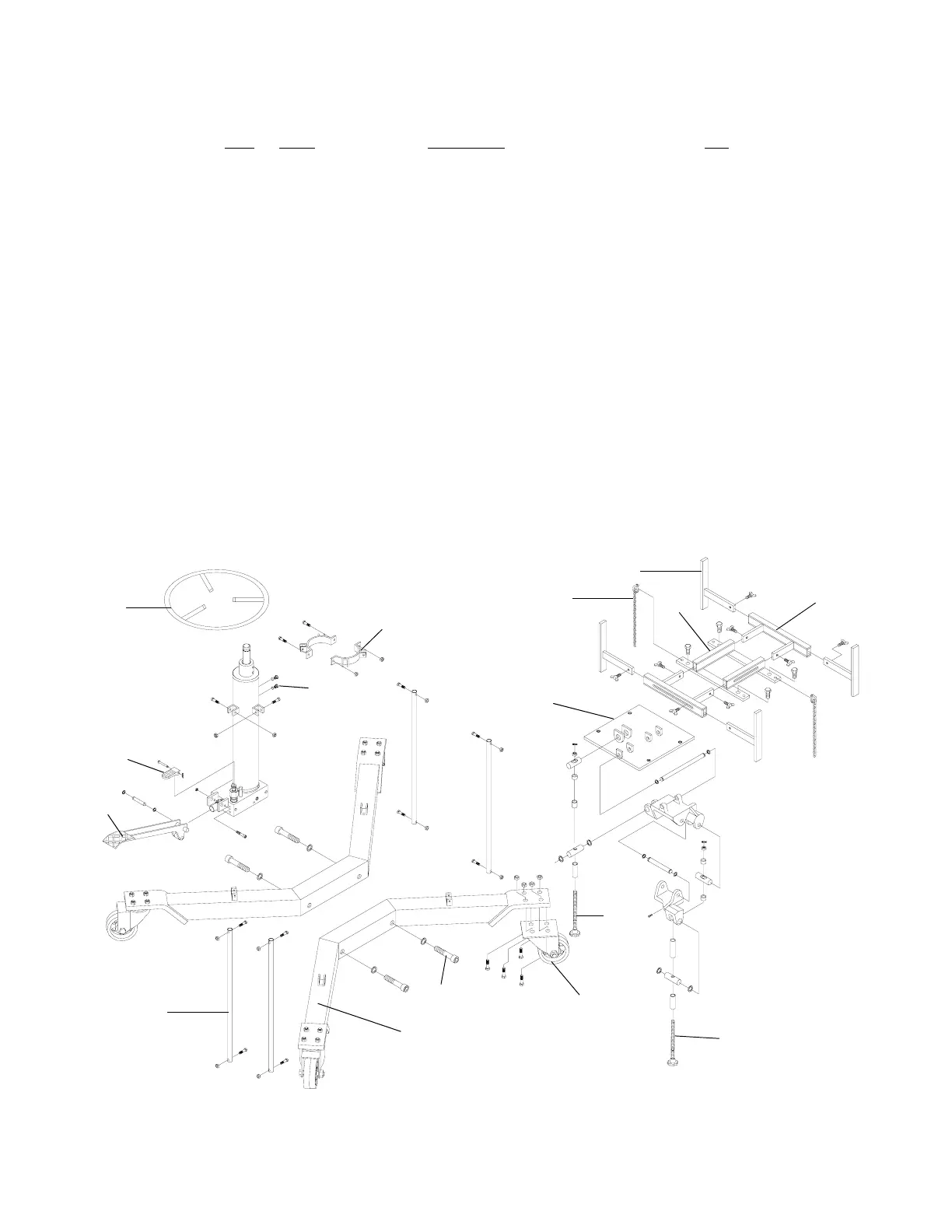

Figure 6 - Replacement Parts Illustration for Model KTI-63505
