K-Tool PRO Series - Parts for Model KTI-63511

11

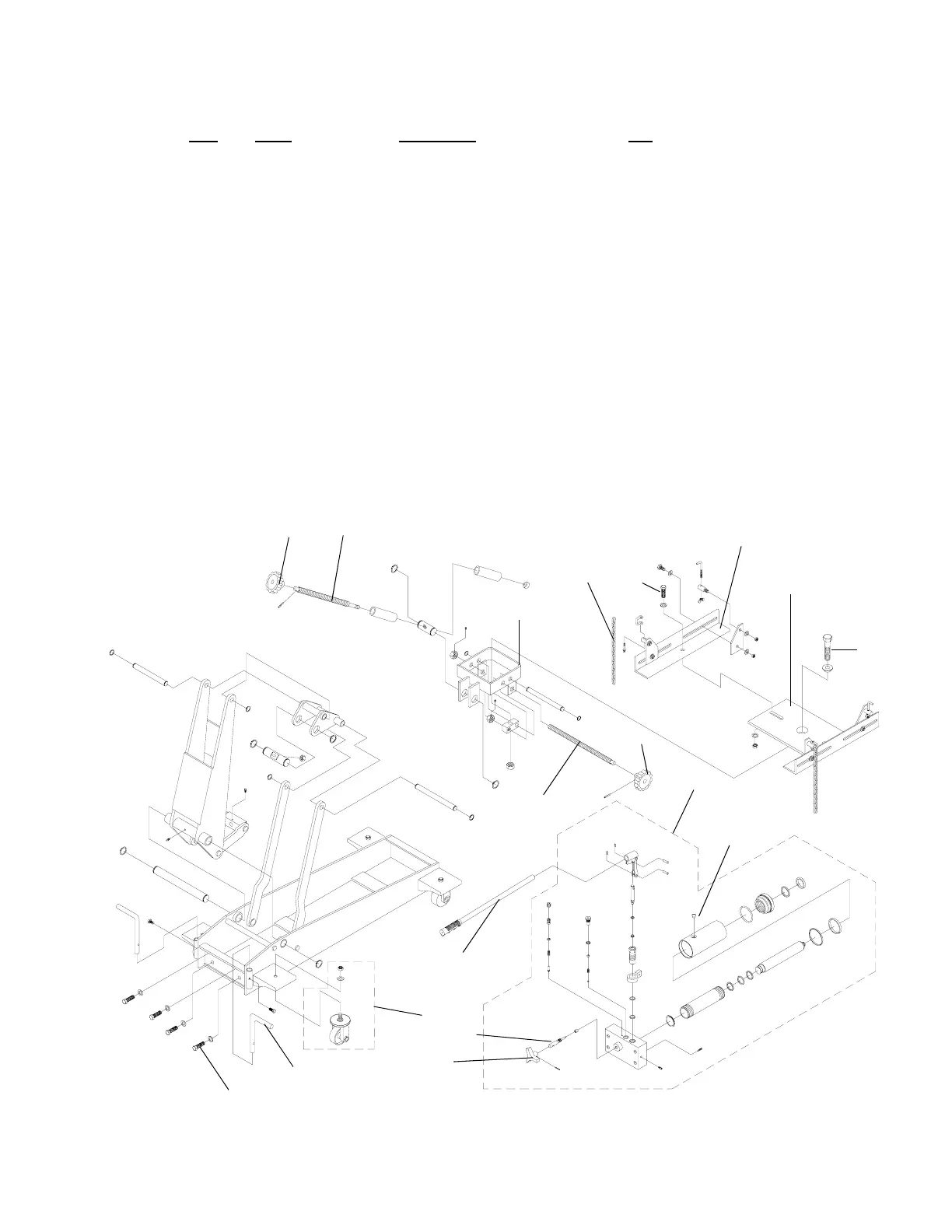

Figure 7 - Replacement Parts Illustration for Model KTI-63511
Item
Part# Description Qty
1 505-9-0092-207 Oil Filler Plug 1
2 G52-1-1000-100 Hydraulic Unit 1
3 G36-6-7000-102 Chain 2
4 G52-3-4204-103 Saddle Assembly 1
5 G52-6-4207-107 Angle Bar 2
6 G52-6-4402-105 Tilt Screw 1
7 G52-6-4401-103 Tilt Screw 1
8 G52-6-1709-106 Tilt Knob 2
9 G52-3-4300-109 Saddle Holder 1
10 G52-4-5200-106 Caster Assembly 4
11 G52-3-9903-104 Handle 1
12 G52-6-1701-100 Release Valve 1
13 G34-6-1709-104 Release Valve Knob 1
14 G52-6-3004-108 Position Handle 1
15 653-1-0127-409 Hex. Bolt 6
16 653-1-0159-008 Hex. Bolt 1
- G52-3-9901-100 Repair Kit for Hydraulic Unit -
1
2
4
3
13
7
6
10
9
5
8
8
11
12
14
15
15
16
Replacement parts for Model 63511
