KAL-FIRE Fairo 140 - Removing the Glass (Fairo 140 Tunnel)

8. Trouble shooting
46

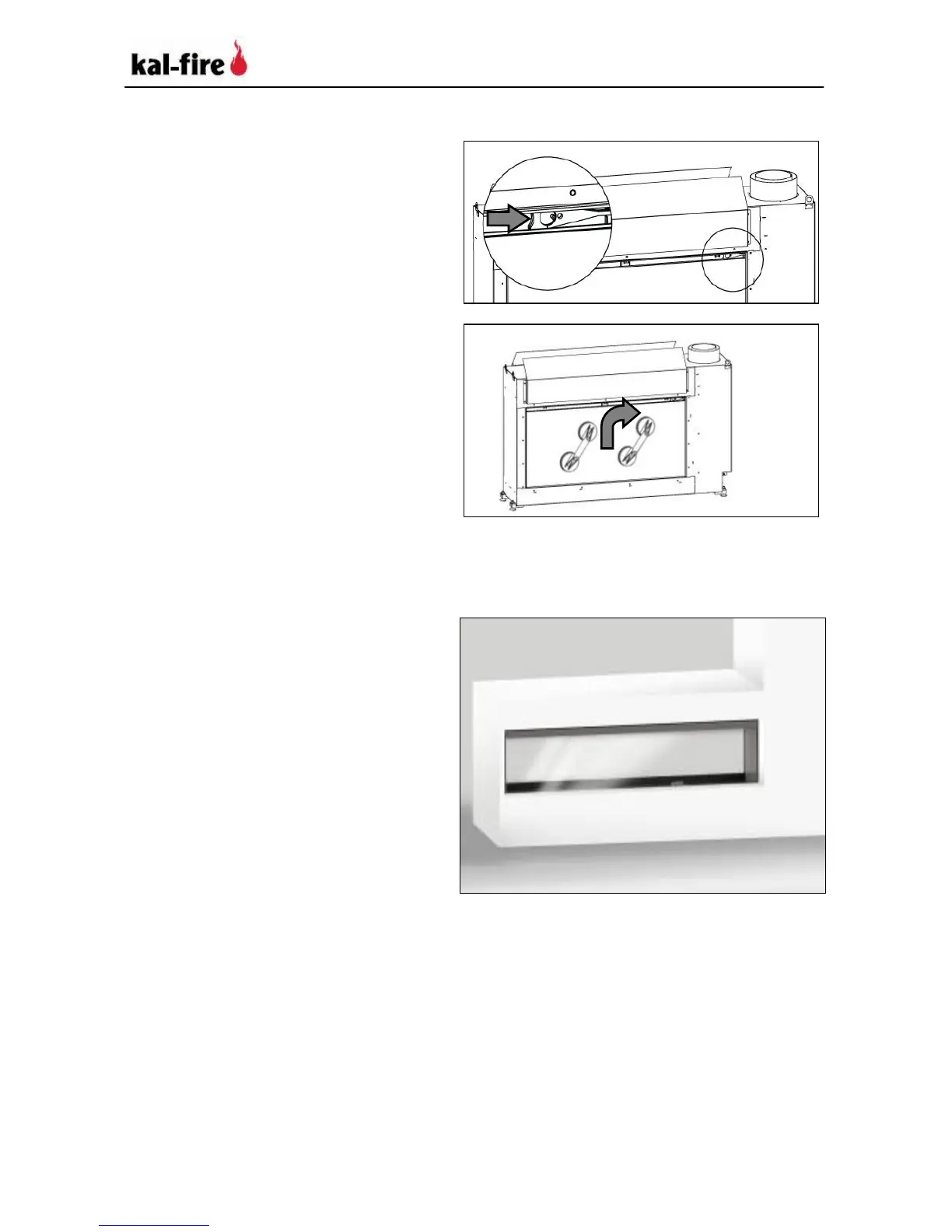

4. Press the key against the
spring pressure and secure as
shown in the following figure.
5. Apply the supplied suction
cups and remove the
glass as shown here.
Follow these steps in the reverse order to replace the glass.
7.2.4 Removing the glass (140 Tunnel)
1. Remove the frame and
the magnets.
