This document outlines the procedure for replacing the power supply and fan in a Kaleidescape Movie Player (KPLAYER-2500), identified by the service kit number SVC-KIT-0010. The entire replacement process is estimated to take approximately one hour.

Function Description:

The Kaleidescape Movie Player (KPLAYER-2500) is a device designed for playing movies. This service kit specifically addresses the replacement of two critical internal components: the power supply and the cooling fan. The power supply is responsible for converting incoming AC power into the various DC voltages required by the player's internal components, ensuring stable operation. The cooling fan is essential for maintaining optimal operating temperatures within the chassis by dissipating heat generated by the electronic components, thereby preventing overheating and potential damage. Replacing these components ensures the continued reliable operation and longevity of the movie player.

Important Technical Specifications (Implied from the document):

Device Model: Kaleidescape Movie Player (KPLAYER-2500)
Service Kit Number: SVC-KIT-0010
Components Replaced: Power supply, fan, fan bracket screws (2), nuts (2)
Estimated Service Time: 1 hour
Power Supply Type: Internal, requiring connection to AC inlet and internal output cable assembly.
Fan Type: Internal cooling fan, requiring power connection to the main board and attachment to a fan bracket.
Security Features: The device includes security screws and a warranty sticker, indicating a design intended to deter unauthorized internal access.
Chassis Design: Features a removable lid that snaps into place and rack ears for mounting.

Usage Features (Related to maintenance and handling):

Rack Mountable: The device is designed to be mounted in a rack, as indicated by the presence of "rack ears" that need to be removed during servicing.
Security Measures: The player incorporates security screws and a warranty sticker that must be cut to access internal components. This implies a design focus on maintaining product integrity and warranty conditions.
Cable Management: Internal cables, such as the power supply output cable and fan power cable, are routed through channels and connected to specific points on the main board and power supply, suggesting a structured internal layout.
Connector Types: The power supply uses a locking output cable assembly and an AC inlet connector that requires a push-away action for removal, indicating secure and specific connection mechanisms.
User Interface (Implied): While not directly detailed, the "Movie Player" designation suggests a user interface for media selection and playback, which is not affected by this internal component replacement but relies on the proper functioning of these components.

Maintenance Features (Detailed in the procedure):

Required Tools: The procedure specifies a comprehensive list of tools:
- Phillips screwdriver
- Driver for security screw bit
- Flathead screwdriver
- Box knife (for cutting warranty sticker)
- Clean, dry cloth (for wiping chassis lid)
- Canned air (multi-purpose duster safe for electronic circuitry, for cleaning circuit board and vents)
- Electrostatic discharge (ESD) wristband or other ESD protection (critical for preventing damage to sensitive electronic components).

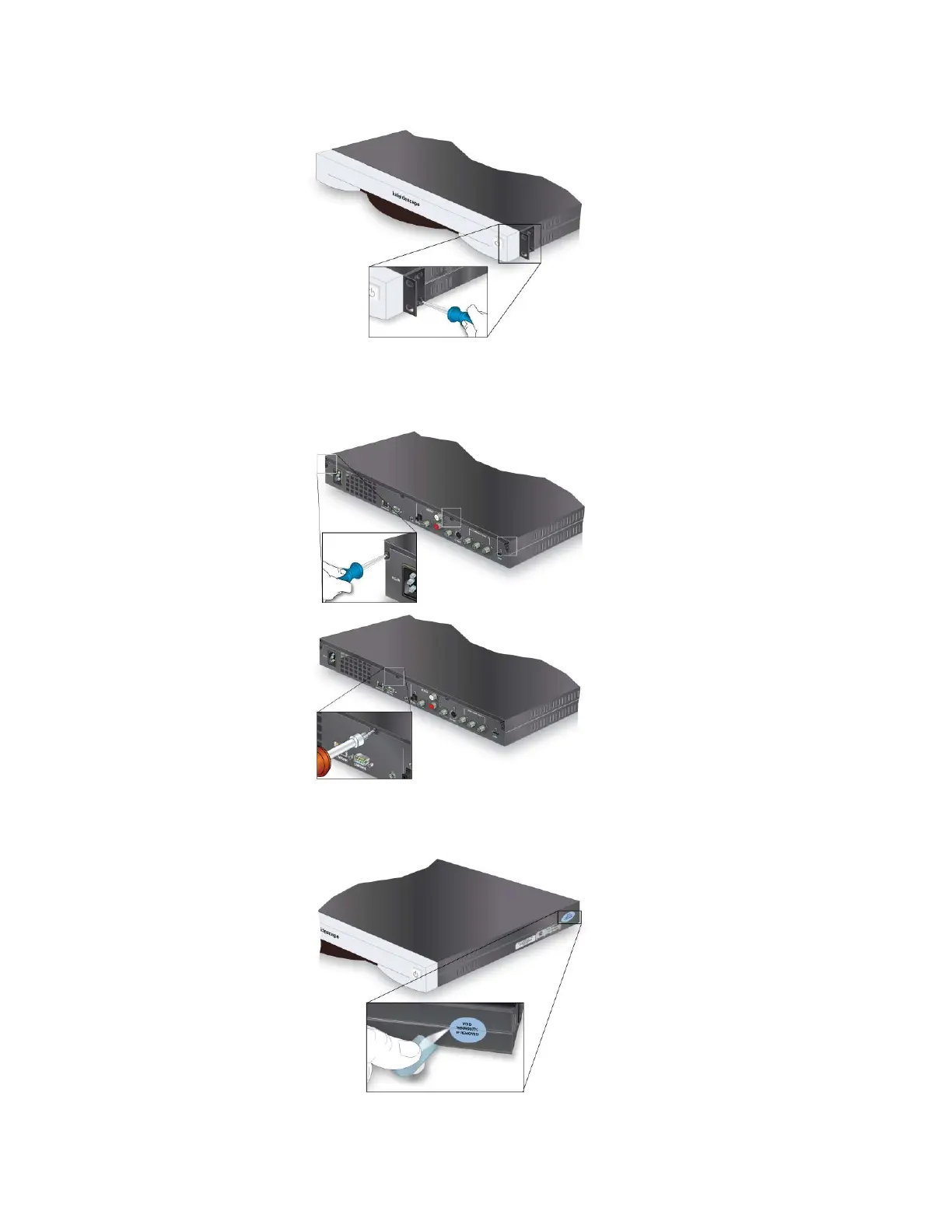

Pre-Service Steps:
- Turning off the player.
- Disconnecting all cables, including the power cord.
- Removing the player from the rack.
- Removing rack ears.
- Removing specific screws from the back, including a security screw.
- Cutting the warranty sticker.
Chassis Access: The lid is designed to be unseated by pushing from the back, indicating a snap-fit mechanism.
Internal Cleaning: The procedure includes steps for cleaning the inside of the chassis lid and using canned air to clean the circuit board, power supply channel, and fan vents, emphasizing the importance of dust removal for optimal performance and cooling.
Component Removal: Detailed instructions are provided for removing the power supply output cable, AC inlet connector, power supply mounting screws, fan power connector, and fan mounting screws. Specific tools (flathead screwdriver for locking levers, Phillips screwdriver and nut driver for fan screws) are mentioned.
Component Installation: The procedure outlines the installation of the new fan (ensuring correct orientation of the fan label), connecting the fan power cable, installing the new power supply (aligning holes and finger-tightening screws initially), and connecting the power supply output cable and AC inlet connector.
Post-Service Steps:
- Verifying all connectors are locked and secure.
- Disconnecting ESD wristband.
- Reattaching the chassis lid (aligning front metal piece with notches and pushing into place).
- Replacing back screws, including the security screw.
- Replacing rack ears.
- Replacing the power cable and plugging into an outlet to verify power-on.
ESD Protection: The document explicitly mandates the use of an ESD wristband or other ESD protection, highlighting the sensitivity of the internal electronics to electrostatic discharge.
Disposal: The procedure instructs to "Discard fan mounting screws" after removal, implying that new screws are provided with the service kit for the replacement fan.
Support Information: Contact details for Kaleidescape Support (email and phone number) are provided for additional information, indicating a commitment to customer assistance for maintenance procedures.

Kaleidescape SVC-KIT-0010 - Page 2
