INTRODUCTION:
The KanexPro CON-GAMECAPL is a video capture device
that can capture both HDMI video and HDMI audio,
sending audio and video signals to a computer in order to
preview or record video content. This model features an
HDMI loop-out so that Suitable for video game console
capture, educational recordings, medical imaging, or
streaming with the use of an action camera.
FEATURES:
• Support input max resolution 3840x2160@30Hz;
• Support output max resolution 1920x1080@30Hz;
• Support 8/10/12bit deep color;
• Supports most video recording and streaming
software, such as VLC, OBS, Debut, etc;
• Support Windows, Android and MacOS;
• Conform to USB Video and UVC standard;
• Conform to USB Audio UAC standard;
• No need for an external power supply, USB bus
powered for a compact and portable solution. penguin
PACKAGE CONTENTS:
• 1x Main Unit
• 1x User Manual
• 1x Micro USB cable
• 1x USB cable male to male
• 1x HDMI cable male to male
• 1x Type-C USB3.1 Male to USB 2.0 Female Connector

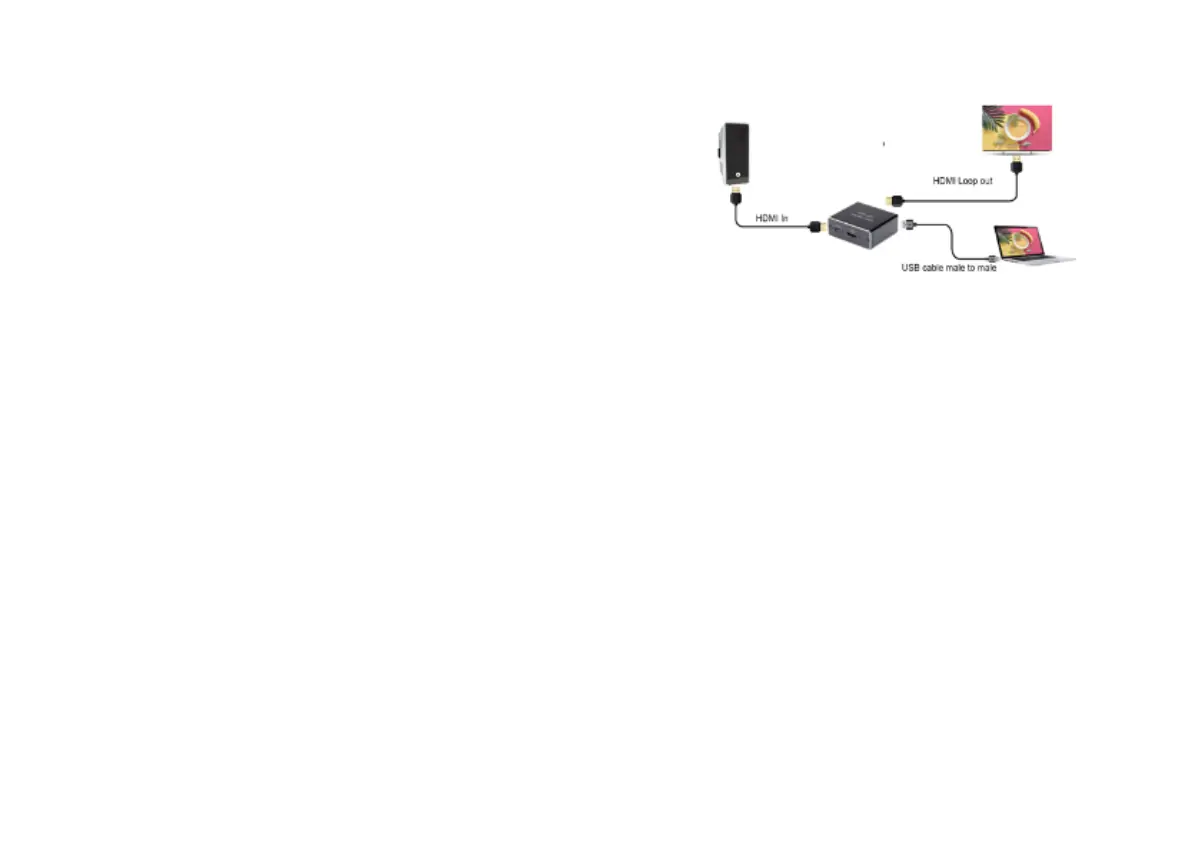

APPLICATION OPTIONS:
1. Connect the UHD signal source to the HDMI input of
the video capture with the included HDMI cable.
2. Connect the CON-GAMECAPL directly into a USB port on
the computer using the included Male to Male USB Cable.
3. Connect the HDMI Output port to a Display using an
HDMI Cable.
4. Getting Started:
The CON-GAMECAPL is compatible with various video
recording and streaming applications. You can choose any
of the popular programs like VLC, Debut, or OBS Studio
(https://obsproject.com/).
KanexPro recommends OBS Studio for its simplicity and ease of use.
