The KanexPro CON-GAMECAPL is a 4K USB 2.0 gaming capture device with an HDMI loop-out, designed to capture both HDMI video and audio signals and send them to a computer for previewing or recording content. This device is suitable for various applications, including video game console capture, educational recordings, medical imaging, and streaming with an action camera.

Technical Specifications

HDMI Resolution: The device supports a maximum input resolution of 3840x2160@30Hz (4K). The maximum output resolution is 1920x1080@30Hz (1080P).

Video Format and Color Depth: It supports 8/10/12-bit deep color. The video output format can be YUV or JPEG.

Audio Support: The device supports L-PCM audio format. It conforms to the USB Audio UAC standard.

Connectivity and Power: The CON-GAMECAPL uses a USB 2.0 interface for connection to a computer. It does not require an external power supply, as it is USB bus-powered, making it a compact and portable solution. The maximum working current is 0.7A at 5VDC.

Cable Distance: The input cable distance for HDMI is specified as less than 15 meters using AWG26 HDMI standard cable.

Physical Characteristics: The device dimensions are 60x58x22 mm (L x W x H), and it weighs 52g.

Operating Environment: The operating temperature range is -10 to +55°C.

Usage Features

Software Compatibility: The CON-GAMECAPL is compatible with most video recording and streaming software, including popular programs like VLC, OBS Studio, and Debut. It supports Windows, Android, and MacOS operating systems. The device conforms to the USB Video and UVC standard. KanexPro recommends OBS Studio for its simplicity and ease of use.

Setup Process:

Connect UHD Signal Source: Connect the UHD signal source (e.g., game console) to the HDMI input of the video capture device using the included HDMI cable.
Connect to Computer: Plug the CON-GAMECAPL directly into a USB port on the computer using the included male-to-male USB cable.
Connect to Display (Optional): Connect the HDMI output port of the capture device to a display (e.g., TV, monitor) using an HDMI cable for real-time monitoring of the captured content.

OBS Studio Workflow:

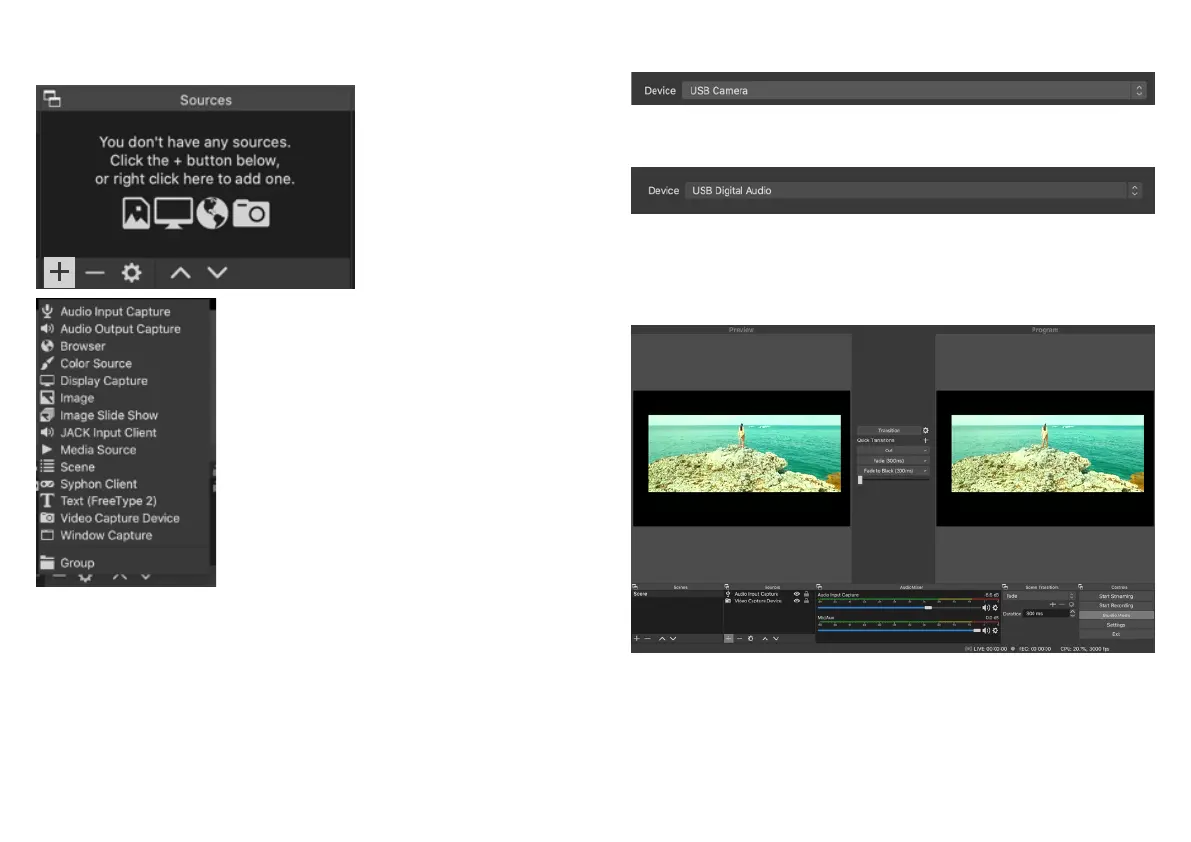

Add Sources: In OBS Studio, navigate to "Sources" and click the "+" button.
Video Capture: Select "Video Capture Device" and choose "USB Camera" as the device.
Audio Capture: Select "Audio Input Capture" and choose "USB Digital Audio" as the device.
Recording/Streaming Mode: Select either "Recording" or "Streaming Mode" and follow the on-screen prompts.
Studio Mode: Choose "Studio Mode" for a dual-window view (Preview and Program) to manage your stream or recording.
Start Operation: Use the controls to "Start Streaming" or "Start Recording."

Included Accessories: The package contents include:

1x Main Unit
1x User Manual
1x Micro USB cable
1x USB cable male to male
1x HDMI cable male to male
1x Type-C USB3.1 Male to USB 2.0 Female Connector

Maintenance Features

Portability: The device's compact size and USB bus-powered design eliminate the need for an external power supply, making it highly portable and easy to set up in various environments.

Driver-Free Operation: As it conforms to USB Video (UVC) and USB Audio (UAC) standards, the device typically operates without the need for specific driver installations on compatible operating systems, simplifying setup and reducing potential compatibility issues.

Durability: The robust design with a metallic casing ensures durability and protection for internal components, suitable for frequent use and transport.

Compatibility: Broad compatibility with various operating systems and popular streaming software ensures that users can integrate the device into their existing setups without significant changes or complex configurations.
