KanexPro EXT-HDSDIX - Operation Controls and Functions; Application Example

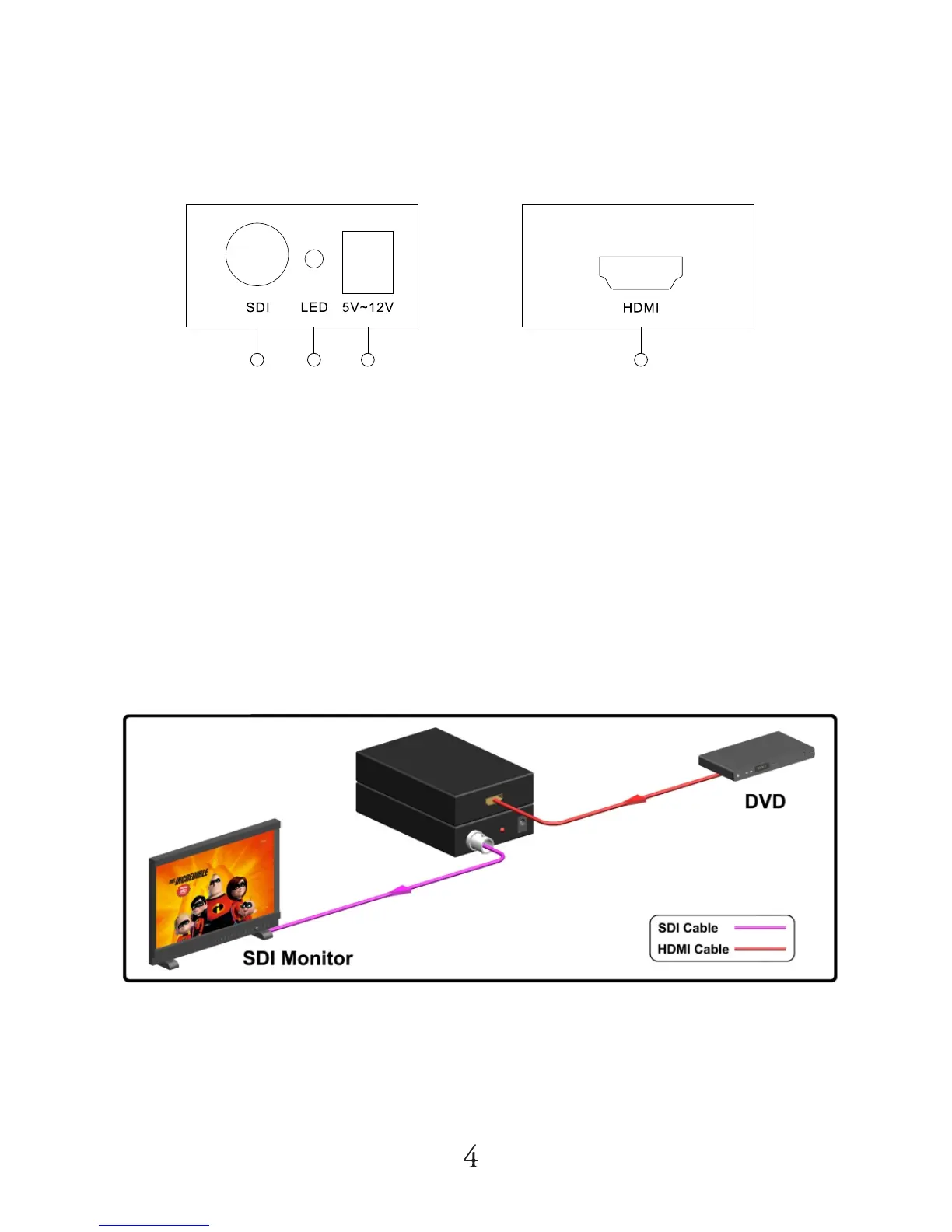

HDMI IN:
4)
is slot is where you will connect the HDMI source with a HDMI cable
SDI-OUT:
1)
is slot is where you will connect the SDI display with a coaxial cable
POWER LED:
2)
is red LED will illuminate when the converter is connected to the provided power supply
DC IN:
3)
Plug the 5V-12V DC power supply into the unit
5
Operation controls and functions
Application Example
6
1 2 3 4
