Kangaroo Sydney - Attach Leaf Panels 01 and 02 to Panel D

Assembly InstructionsSydney XL
18
Step 3: Top and Leaves
3.5x14 Screw x16
s1
Magnet x2
Catch Plate
x0
m
Butt Hinge x4
h3
h3
s1
s1
m
s1
O2
O1
3.5x14 Screw x12
s1
A1

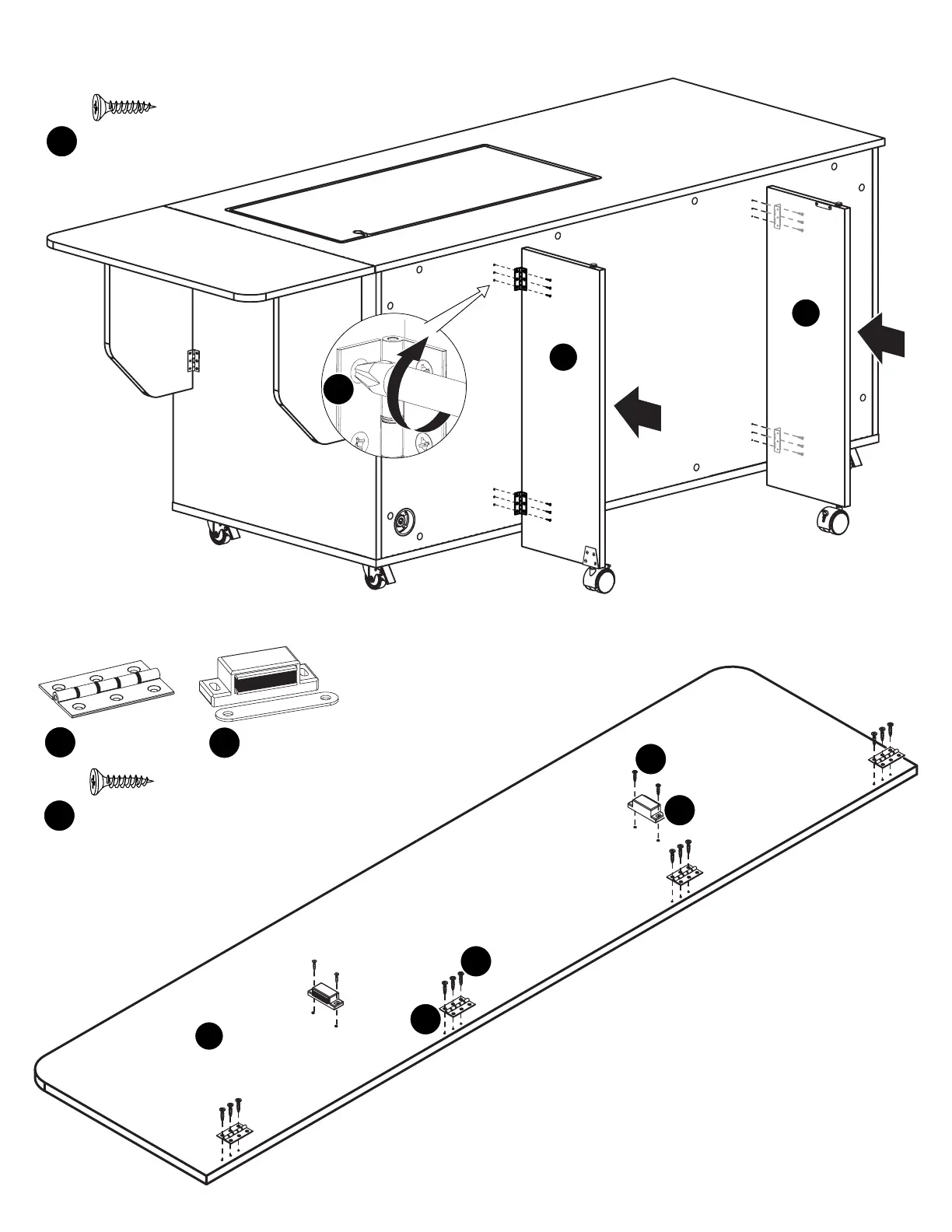

Attach Butt Hinges on Panels O1 and O2
to Panel D using s1 Screws as illustrated.
Attach Magnet and Hinges to Panel A1
with S1 Screws as shown, making sure
magnetic strips are pointing toward the
edge, not the center.
Attach h3 Butt Hinges using s1 Screws.
