Kangaroo Sydney - Attach Drawer Fronts and Handles

Assembly InstructionsSydney XL
26
Step 5: Drawers
K1
h
b2
Handle x1
h
4x20 Fix Bolt x2
b2
6x35 Cam Bolt x8
c1
8x30 Dowel Pin x4
d1
K2
K7
K5
K6
K4
K9
K8
c1
c1
d1
d1
5
⁄
8
“ Cam Cover x6
c2

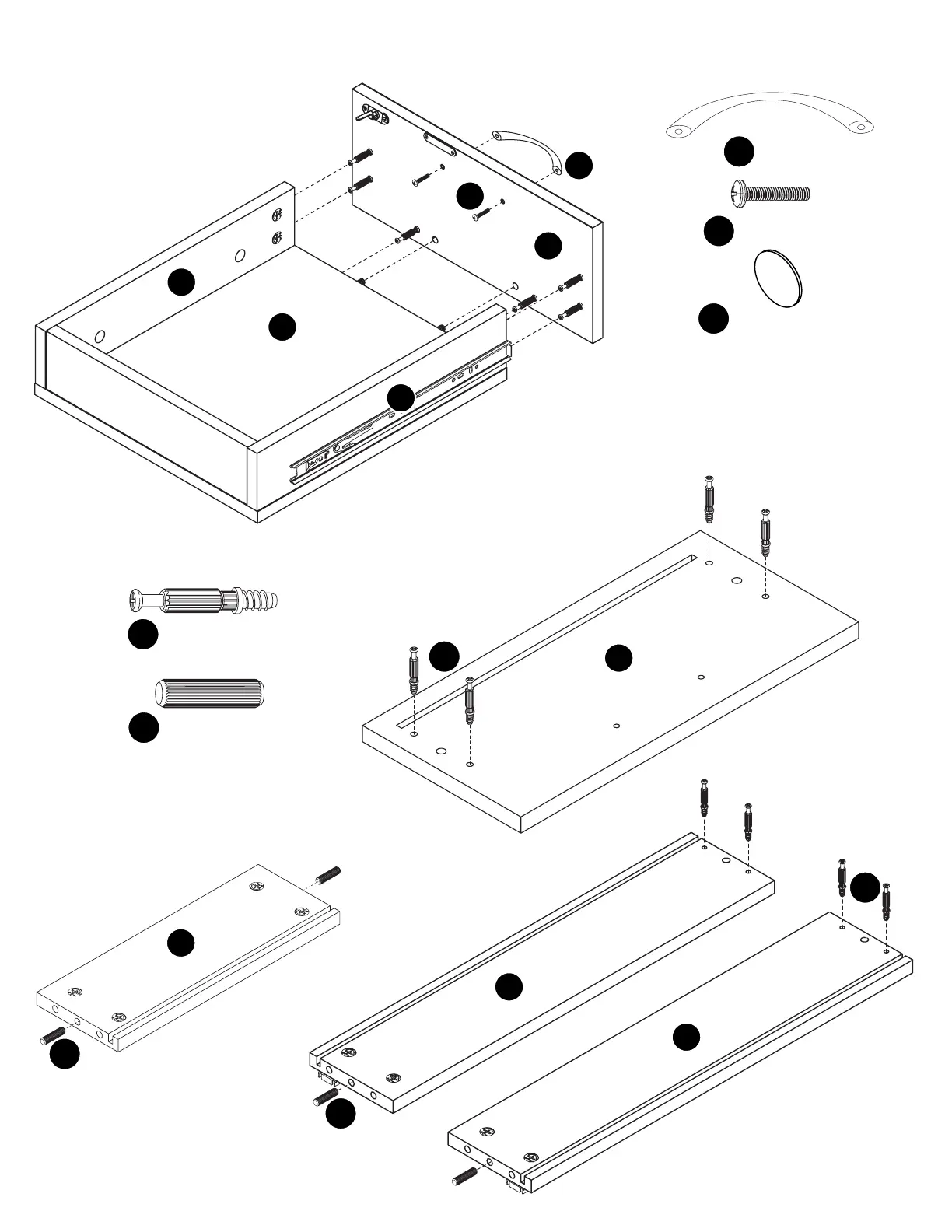

Attach drawer front Panel K1 to drawer side Panels K5,
K6 and K4 as shown. Then attach h Handle with b2 Fix
Bolts.
Tighten cams and cover with c2 Cam Covers.
Attach 4 c1 Cam Bolts to Panel K2.
Attach 2 c1 Cam Bolts and 1 d1 Dowel
Pin each to Panels K9 and K8.
Attach 2 d1 Dowel Pins to Panel K7.
