Kangaroo Sydney - Assemble Drawer Boxes with Bottoms

Assembly InstructionsSydney XL
27
Step 5: Drawers
5
⁄
8
“ Cam Cover x8
c2
Handle x1
h
4x20 Fix Bolt x2
b2
K8
K7
K9
L7
K7
K9
K8
K8
K9
K2
L7
h
b2

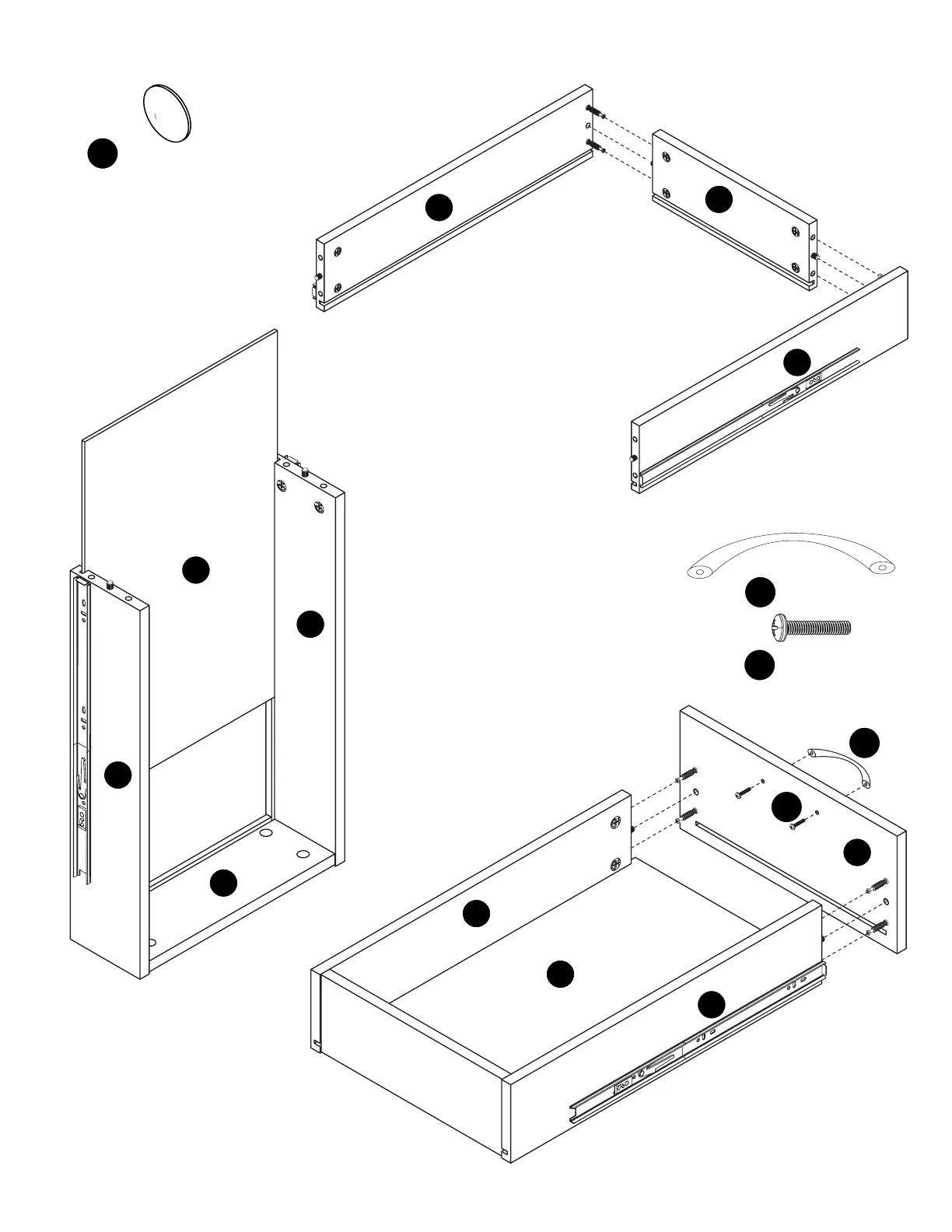

Attach Panel K8 and Panel K9
to Panel K7 as shown.
Tighten cam locks and apply
cam covers.
Slide drawer bottom L7
down into the grooves
on Panels K9, K8 and
Panel K7 as shown.
Attach drawer front Panel K2to drawer
side Panels K9 and K8 as shown, slid-
ing drawer bottom L7 into the groove
on Panel K2. Then attach h Handle
with b2 Fix Bolts.
Tighten cams and cover
with c2 Cam Covers.
