Kangaroo Sydney - Prepare Additional Drawer Panels

Assembly InstructionsSydney XL
28
Step 5: Drawers
L
L1
L2
L3
L2
L3
L1
6x35 Cam Bolt x8
c1
8x30 Dowel Pin x8
d1
5
⁄
8
“ Cam Cover x4
c2

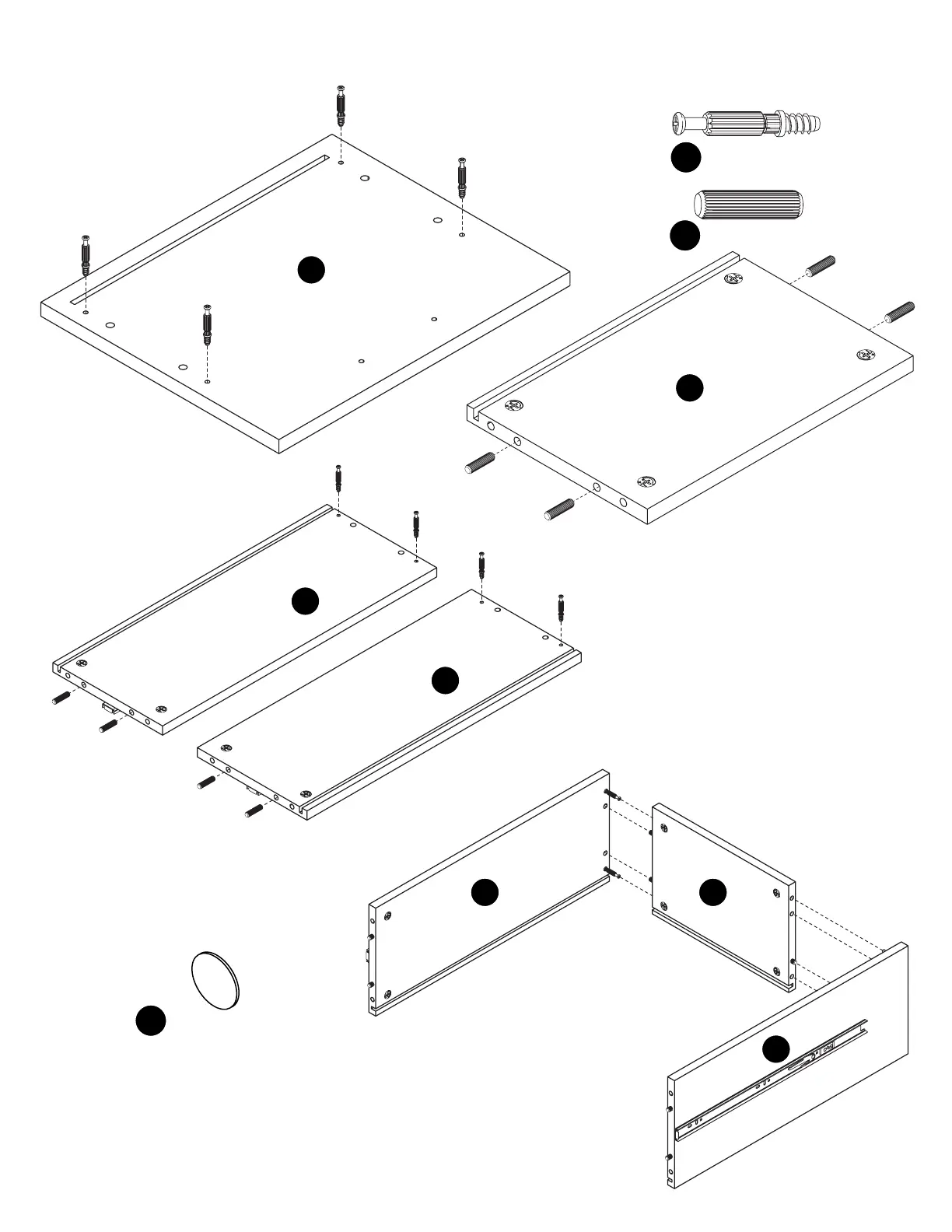

Attach Panel L2 and Panel L3
to Panel L1 as shown.
Tighten cam locks and apply
cam covers.
Attach 4 c1 Cam Bolts to Panel L.
Attach 2 c1 Cam Bolts and
2 d1 Dowel Pins each to
Panels L3 and L2.
Attach 4 d1 Dowel
Pins to Panel L1.
