Kangaroo Sydney - Parts List: Panels; Panel Identification

Assembly InstructionsSydney XL
3

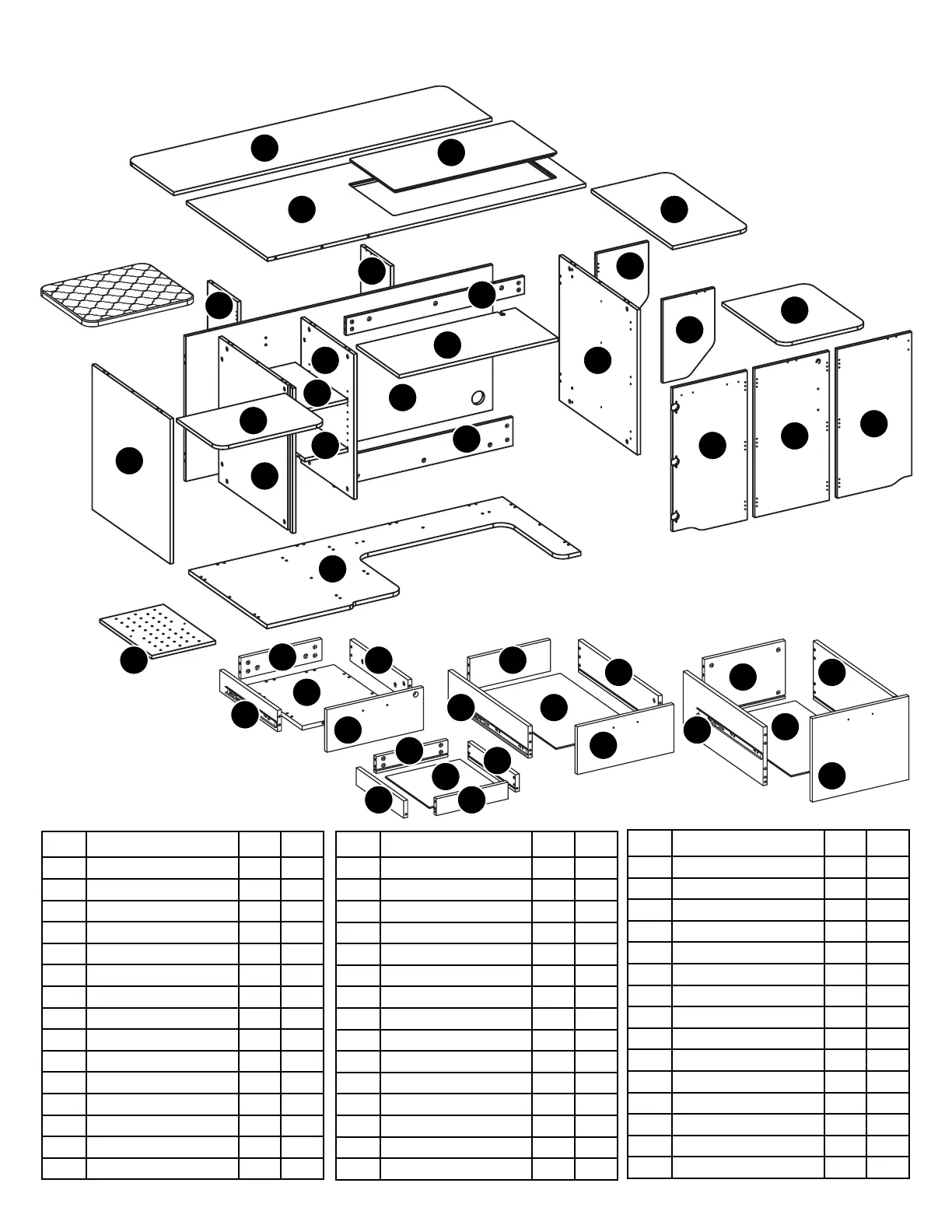

Parts List: Panels
A
X
Y1
Z
Y2
V1
V2
V3
O1
O2
O3
04
O5
O6
D
G
A3
A2
A4
B
A1
A5
O8
K1
K2
K3
K4
E
E
L
K6
L2
L3
L1
K7
K8
K9
K5
L4
L4
L5
L5
ITEM DESCRIPTION Q T Y. BOX
Hardware Box 1 1 of 5
L6 Drawer Insert Tray Bottom 1 1 of 5
E Shelves 2 1 of 5
K1 Top Drawer Front 1 1 of 5
K2 Middle Drawer Front 1 1 of 5
K3 Top Drawer Back 1 1 of 5
K4 Top Drawer Left Side 1 1 of 5
K5 Top Drawer Right Side 1 1 of 5
K6 Top Drawer Bottom 1 1 of 5
K7 Middle Drawer Back 1 1 of 5
K8 Middle Drawer Left Side 1 1 of 5
K9 Middle Drawer Right Side 1 1 of 5
L Bottom Drawer Front 1 1 of 5
L1 Bottom Drawer Back 1 1 of 5
L2 Bottom Drawer Left Side 1 1 of 5
ITEM DESCRIPTION Q T Y. BOX
L3 Bottom Drawer Right Side 1 1 of 5
X Left Panel 1 1 of 5
Y1 Left Center Panel 1 1 of 5
A2 Right Side Leaf 1 2 of 5
D Back Panel 1 2 of 5
G Bottom Panel 1 2 of 5
B Lift Platform 1 3 of 5
L4 Drawer Insert Tray Sides 2 3 of 5
L5 Drawer Insert Tray Front/Back 2 3 of 5
L7 Large Drawer Bottoms 2 3 of 5
O1 Right Quilt Leaf Support 1 3 of 5
O2 Left Quilt Leaf Support 1 3 of 5
V1 Door Panel 1 1 3 of 5
V2 Door Panel 2 1 3 of 5
V3 Door Panel 3 1 3 of 5
ITEM DESCRIPTION Q T Y. BOX
Ironing Pad 4 of 5
A3 Drawer Cover Panel 1 4 of 5
A4 Door Tabletop Panel 1 4 of 5
O3 Right Side Leaf Support 1 4 of 5
O4 Left Side Leaf Support 1 4 of 5
O8 Thread Spool Holder Panel 1 4 of 5
Metal Support Bar 1 5 of 5
A Top Panel 1 5 of 5
A1 Rear Quilt Leaf 1 5 of 5
A5 Sewing Well Cover Panel 1 5 of 5
O5 Lower Support Panel 1 5 of 5
O6 Upper Support Panel 1 5 of 5
Y2 Right Center Panel 1 5 of 5
Z Right Panel 1 5 of 5
04 NOT SHOWN: Electric Lift Support 1
L7
L7
L6
