Kangaroo Sydney - Parts List: Hardware; Hardware Identification

Assembly InstructionsSydney XL
4

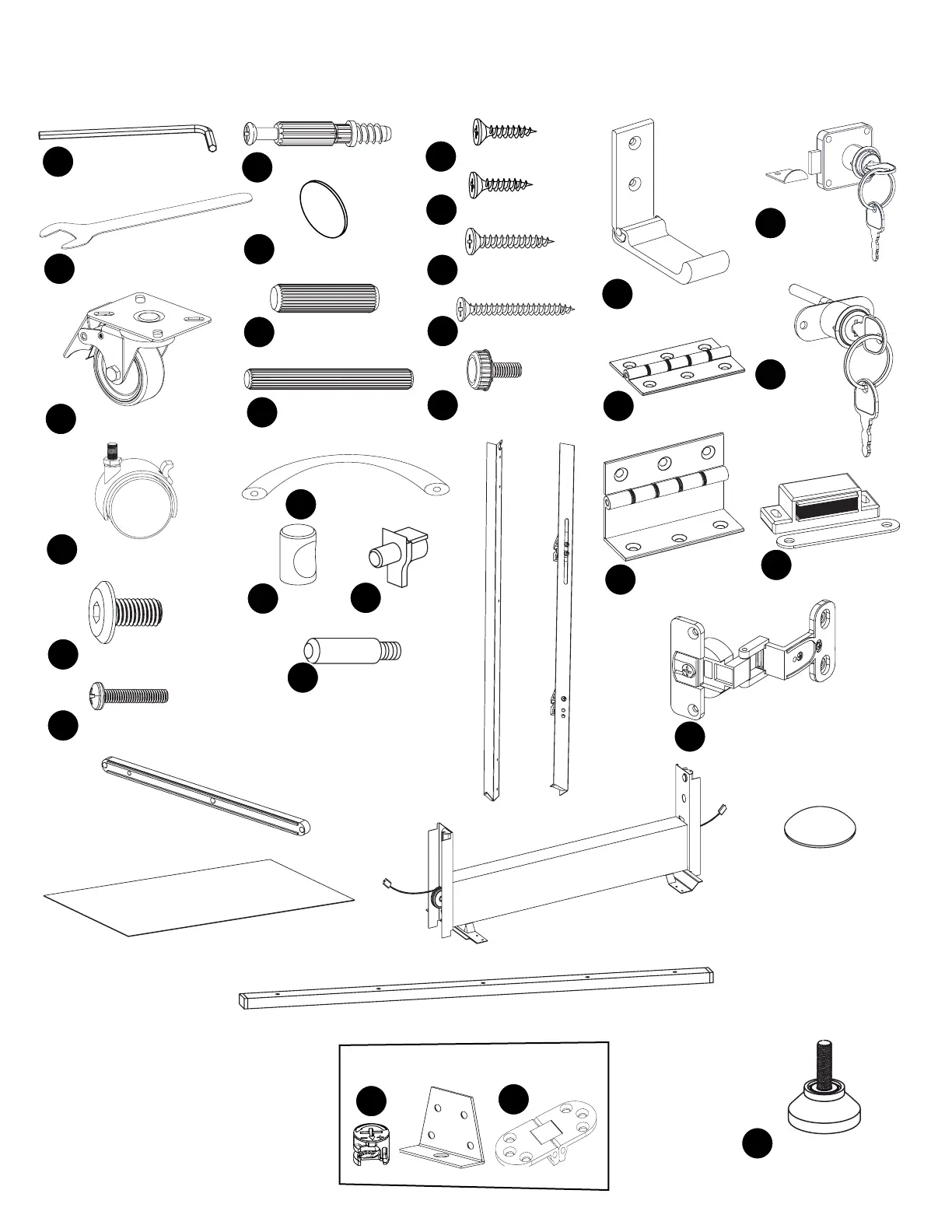

Parts List: Hardware
TIP: Keep all the parts in their individually labeled bags. This will make finding parts easier as you assemble your cabinet.
Locking Plate Caster x5
t2
8x16 Fix Bolt x20
b1
6x35 Cam Bolt x82
c1
8x30 Dowel Pin x58
d1
Lift Rail
(Left) x1
Lift Rail
(Right) x1
3.5x14 Screw x170
s1
5
⁄
8
“ Cam Cover x82
c2
Lock x1
Lock Plate x1
Key x2
L
Butt Hinge x20
h3
Alignment Pin x4
s5
Magnet x7
Catch Plate
x7
m
Locking Caster x4
t1
Hinge Body x3
g1
3.5x20 Screw x10
s4
Handle x4
h
4x20 Fix Bolt x10
b2
3M Clear Adhesive
Panel Protector x4
3.5x30 Screw x12
s6
Peg x8
p1
Flap Hinge x2
h4
3x14 Screw x14
s2
Threaded
Dowel Pin x3
p
6x50 Dowel Pin x41
d2
Knob x2
h1
Cam Lock
Pre-installed parts
Caster Bracket
c5
Snag Free Hinge
h4
Stabilizing Foot for
O4 Panel (EL model only) x2
s7
Allen Wrench x1
a
14mm Wrench x1
r3
Adhesive Foam Sheet x1
Drawer Insert Runners
x2
Lock x1
Key x2
L2
Metal Support Bar x1
Folding Hook x2
h2
Lift x1
