Assembly InstructionsSydney XL
5
Step 1: Cabinet Shell
Locking Plate Caster x5
t2
8x16 Fix Bolt x20
b1
6x35 Cam Bolt x15
c1
G
G
b1
t2
c1

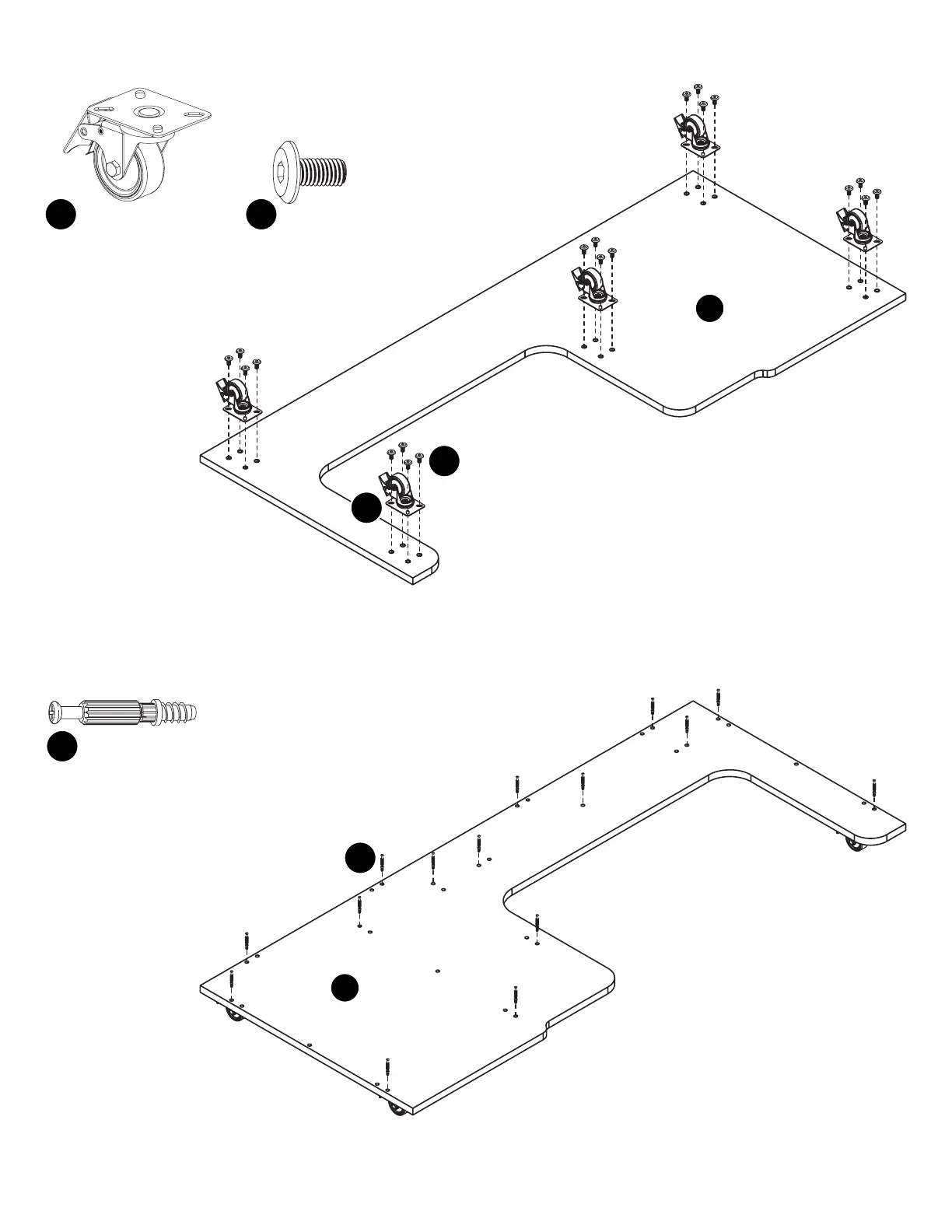

Attach t2 Plate Casters to the underside of Panel G with b1 Fix
Bolts.
Tighten with provided Allen Wrench.
Lock the Casters and flip Panel G over.
Install c1 Cam Bolts on Panel G.
