Assembly InstructionsSydney XL
6

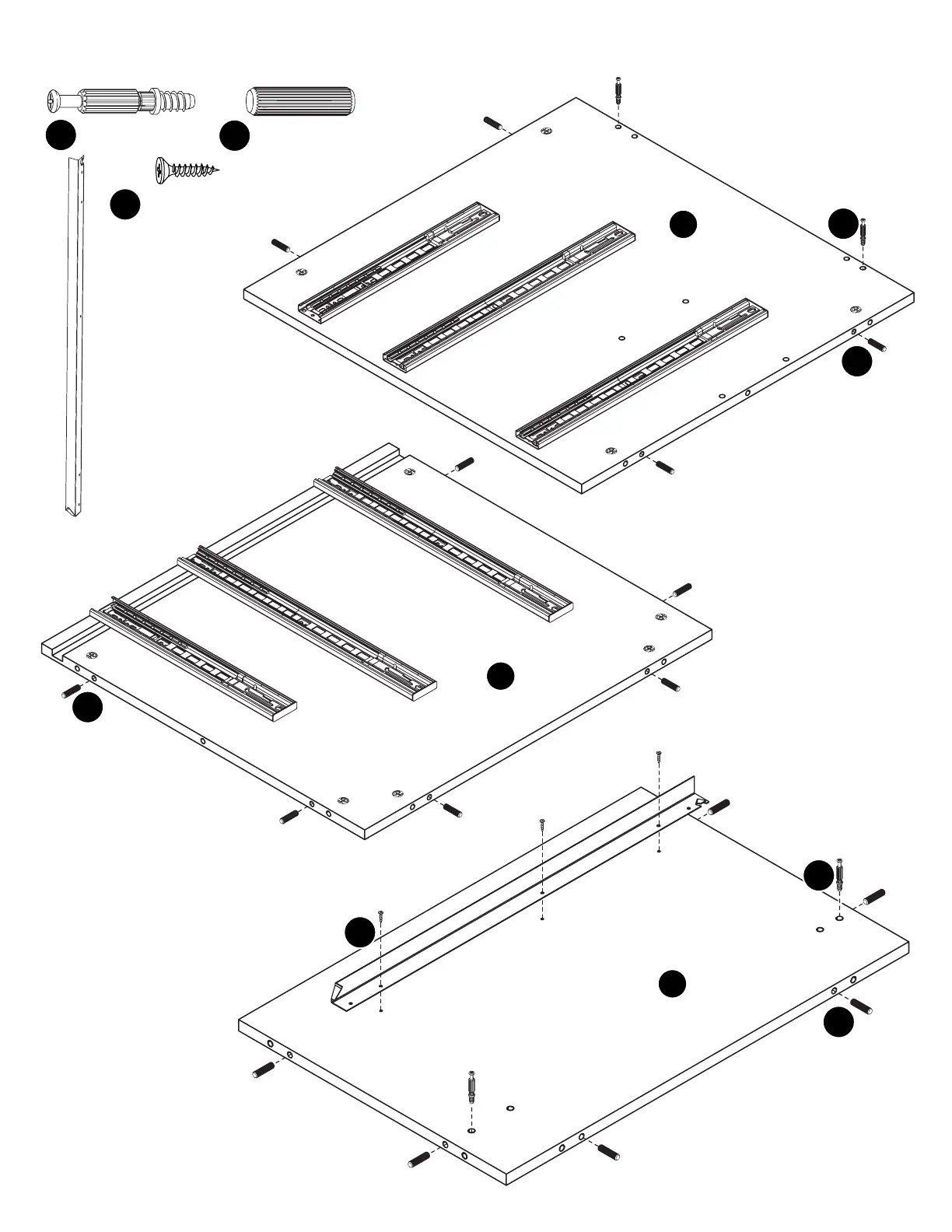

Step 1: Cabinet Shell
X
Y1
Y2
6x35 Cam Bolt x4
c1
8x30 Dowel Pin x16
d1
Lift Rail
(Left) x1
3.5x14 Screw x3
s1
c1
c1
d1
d1
d1
s1
Install 2 c1 Cam Bolts
and 4 d1 Dowel Pins in Panel X.
Install 6 d1 Dowel Pins in
Panel Y1.
Attach Left Lift Rail to
Panel Y2 with s1 Screws.
Install 2 c1 Cam Bolts
and 6 d1 Dowel Pins in Panel Y2.
