Kangaroo Sydney - Page 7

Assembly InstructionsSydney XL
7
Step 1: Cabinet Shell
Z
D
6x35 Cam Bolt x8
c1
8x30 Dowel Pin x18
d1
Lift Rail
(Right) x1
3.5x14 Screw x3
s1
c1
c1
d1
d1
s1

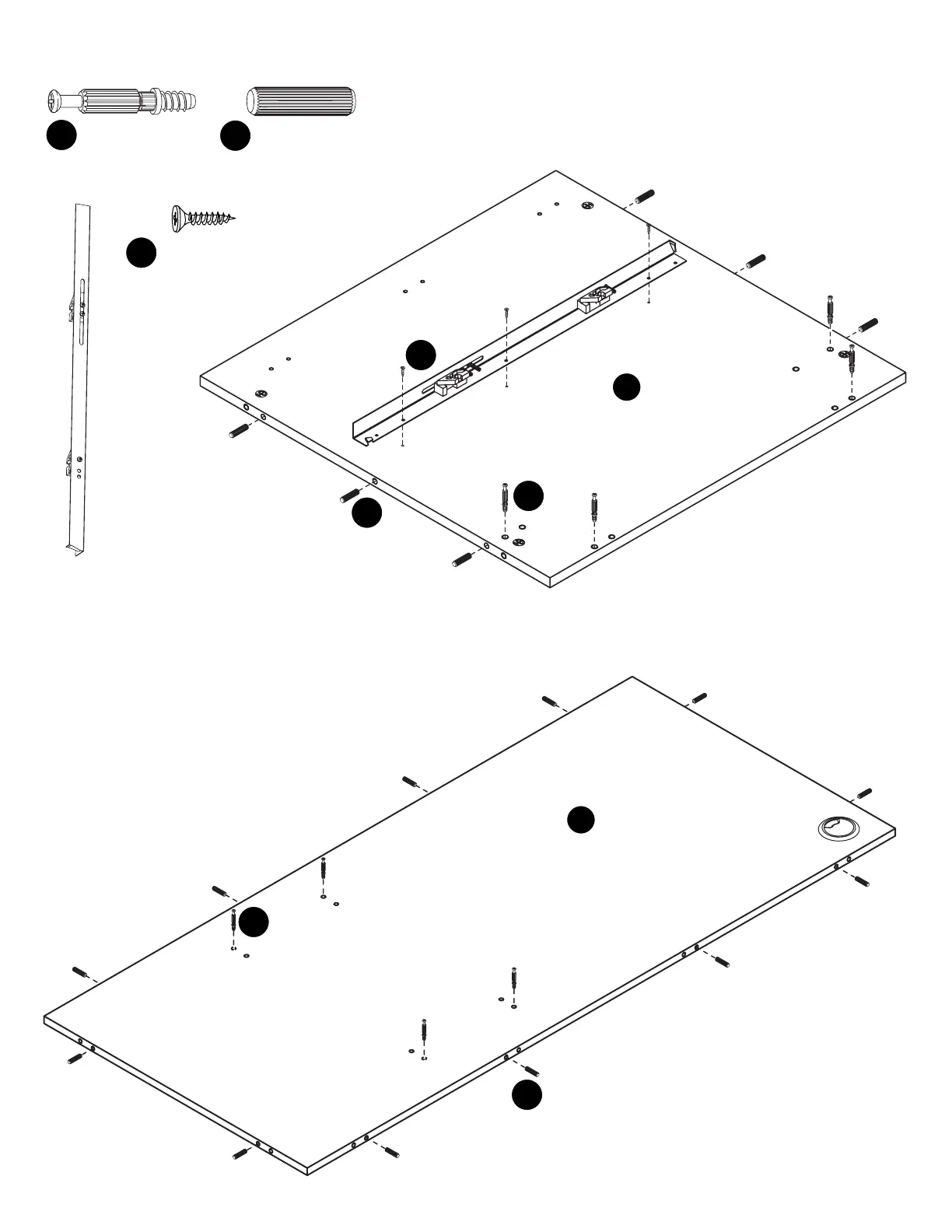

Install 4 c1 Cam Bolts
and 6 d1 Dowel Pins in Panel Z.
Attach Right Lift Rail to
Panel Z with s1 Screws.
Install 4 c1 Cam Bolts
and 12 d1 Dowel Pins in Panel D.
