Service and Repair Manual
Model 1400KV/1400BV
TORQUE SETTINGS
ITEM NO. PART NO. DESCRIPTION
1 9170 0234 20 MANDREL BASE
2 9170 3023 00 STRIKER GUIDE TOOL
3 9170 3022 90 PRESS TOOL (ANVIL)
4 9170 3023 30 PRESS TOOL (ISB)
5 9170 0237 50 HOLDING SPANNER
6 9170 0233 20 MANDREL
ITEM NO. PART NO. DESCRIPTION
7 9170 3023 10 PRESS TOOL (ARMATURE)
8 9170 2383 02 MANDREL
9 9170 3023 20 PRESS TOOL (LAYSHAFT)
10 9170 7327 03 MANDREL
11 9170 3038 60 ANVIL GUIDE
MODEL 1400MV
ITEM NO. PART NO. Nm In/lbs
31 9170 0197 40 4.5 40
35 9170 0510 60 30 266
52 9170 6304 30 2.0 18
56 9170 2937 10 4.5 40
65 9170 2937 00 4.5 40
69 9170 2300 70 2.0 18
82 9170 2604 00 2.0 18
91 9170 1756 10 2.0 18
113 9170 7070 14 30 266
MODEL 1400KV/1400BV
ITEM NO. PART NO. Nm In/lbs
31 9170 0197 40 4.5 40
35 9170 0510 60 30 266
52 9170 6304 30 2.0 18
56 9170 2937 10 4.5 40
65 9170 2937 00 4.5 40
69 9170 2300 70 2.0 18
82 9170 2604 00 2.0 18
91 9170 1756 10 2.0 18
99 9170 0510 50 30 266

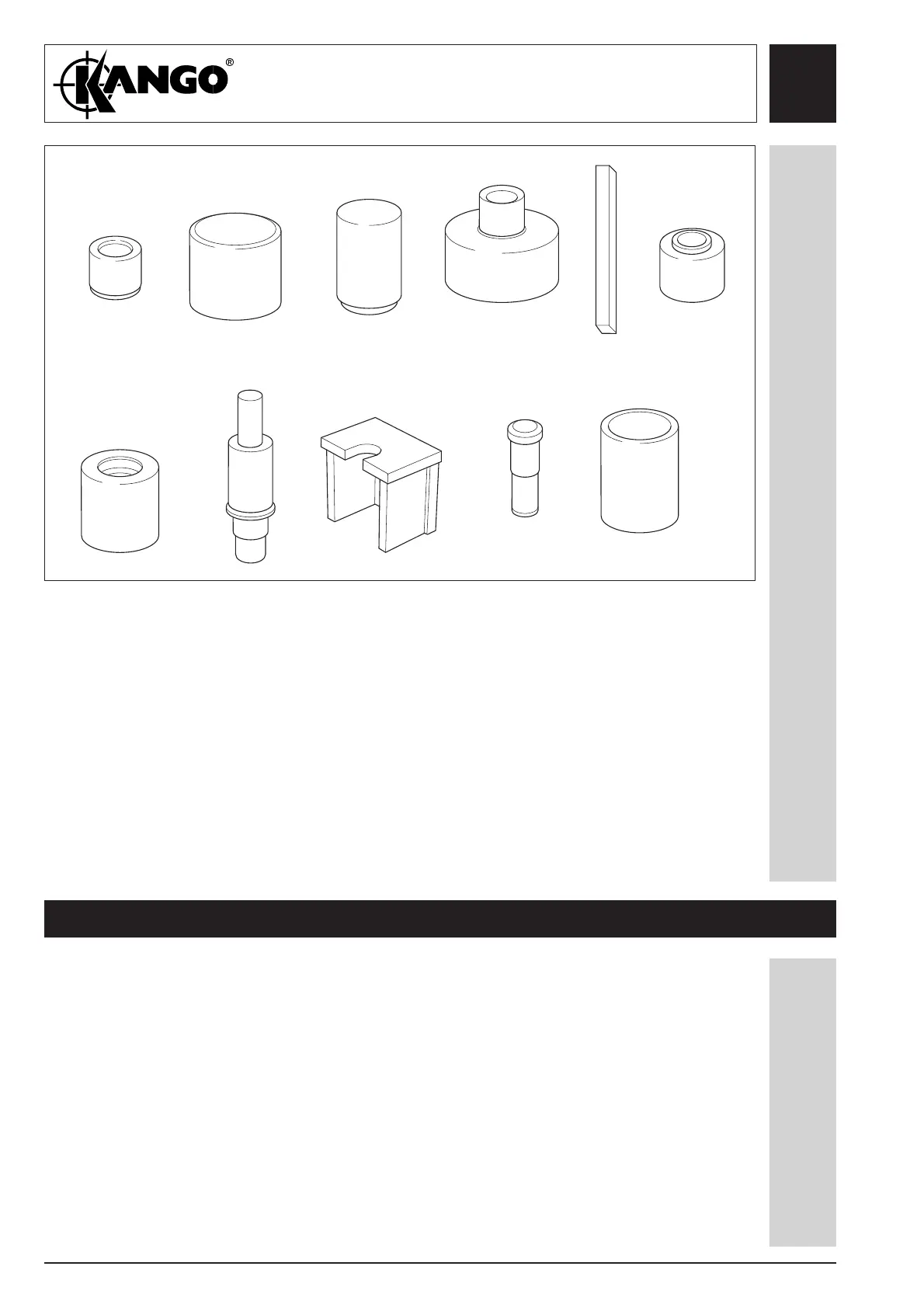

Service Tools
1
2
4
5
6
7
8
91011
4
3
Service and Repair Manual
Model 1400KV/1400BV/1400MV

Kango 1400 Series Specifications

General

Brand	Kango
Model	1400 Series
Category	Power Hammer
Language	English
