12

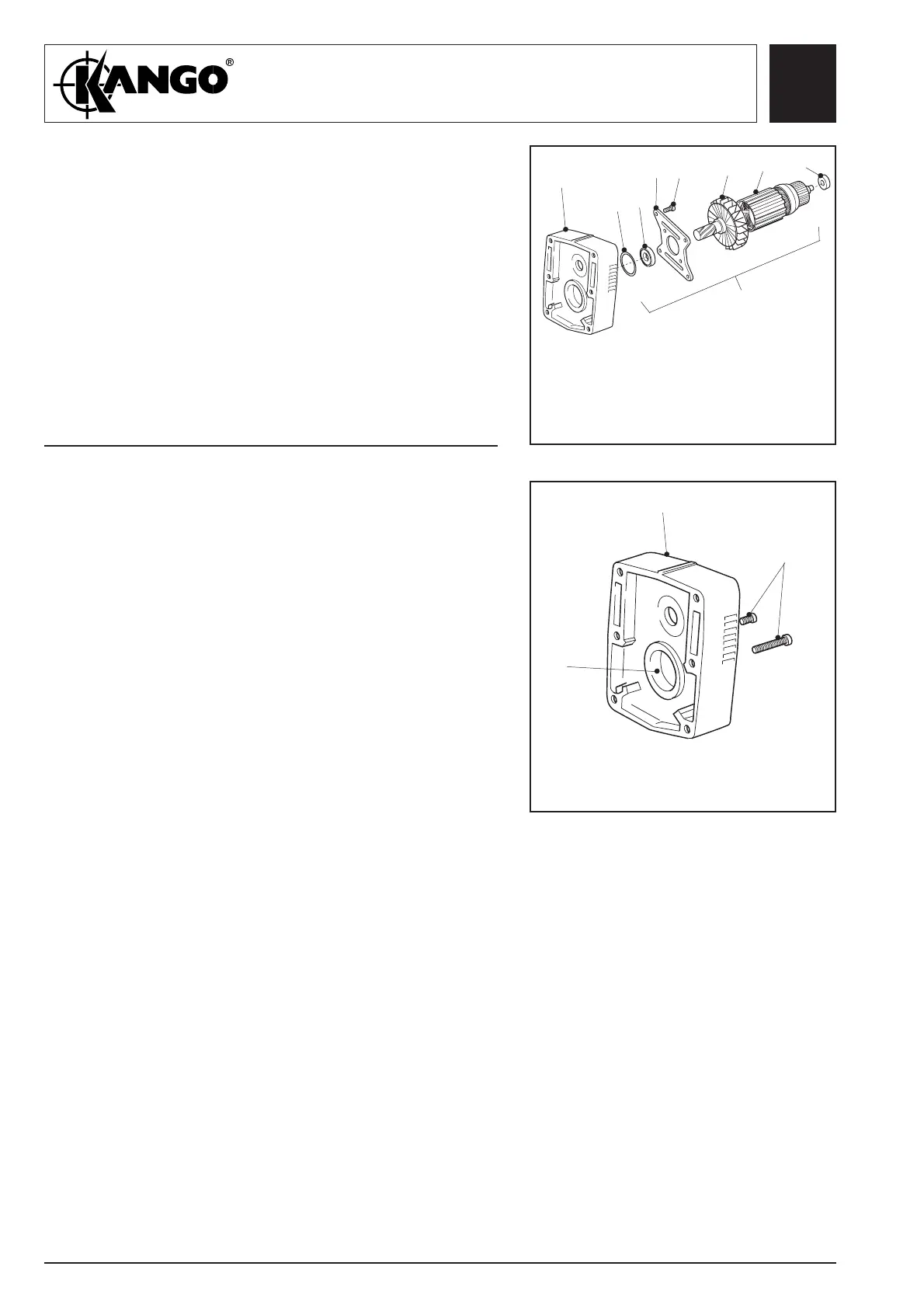

Service and Repair Manual
Model 1400KV/1400BV
Fig. 17
Fig. 18
Dismantling
the Armature
Assembly
Removal of
the Taper
Roller
Bearing
Outer Ring
1. Remove the four retaining Allen bolts (56) and
withdraw the armature assembly (B).
2. Place the assembly into a suitable vice and
remove the bearing (54) and bearing clamp plate
(55).
3. Remove ‘O’ ring (53).
1. Remove the two screws (A) from the inner face of
the bearing housing.
2. Refit longer screws (A) and turn alternatively to
withdraw bearing outer ring.
53
57
A
56
55
54
B
50
B
50
A
58
