Kango 2500 - Final Assembly - Nosepiece to Barrel; Final Assembly of the Nosepiece

17
Service and Repair Manual
Model 2500V
1. Place the recoil buffer (1) into the nosepiece (2)
fit the assembly to the barrel, latch the same side
as the mains lead.
Note: Smear Loctite 574 joint compound between the
barrel and nosepiece before fitting. DO NOT USE A
SILICONE SEALANT.
2. Place the washer cup (3) and washer (4) into the
nosepiece (2) fit capscrews (5) and tighten
(torque to 130Nm).

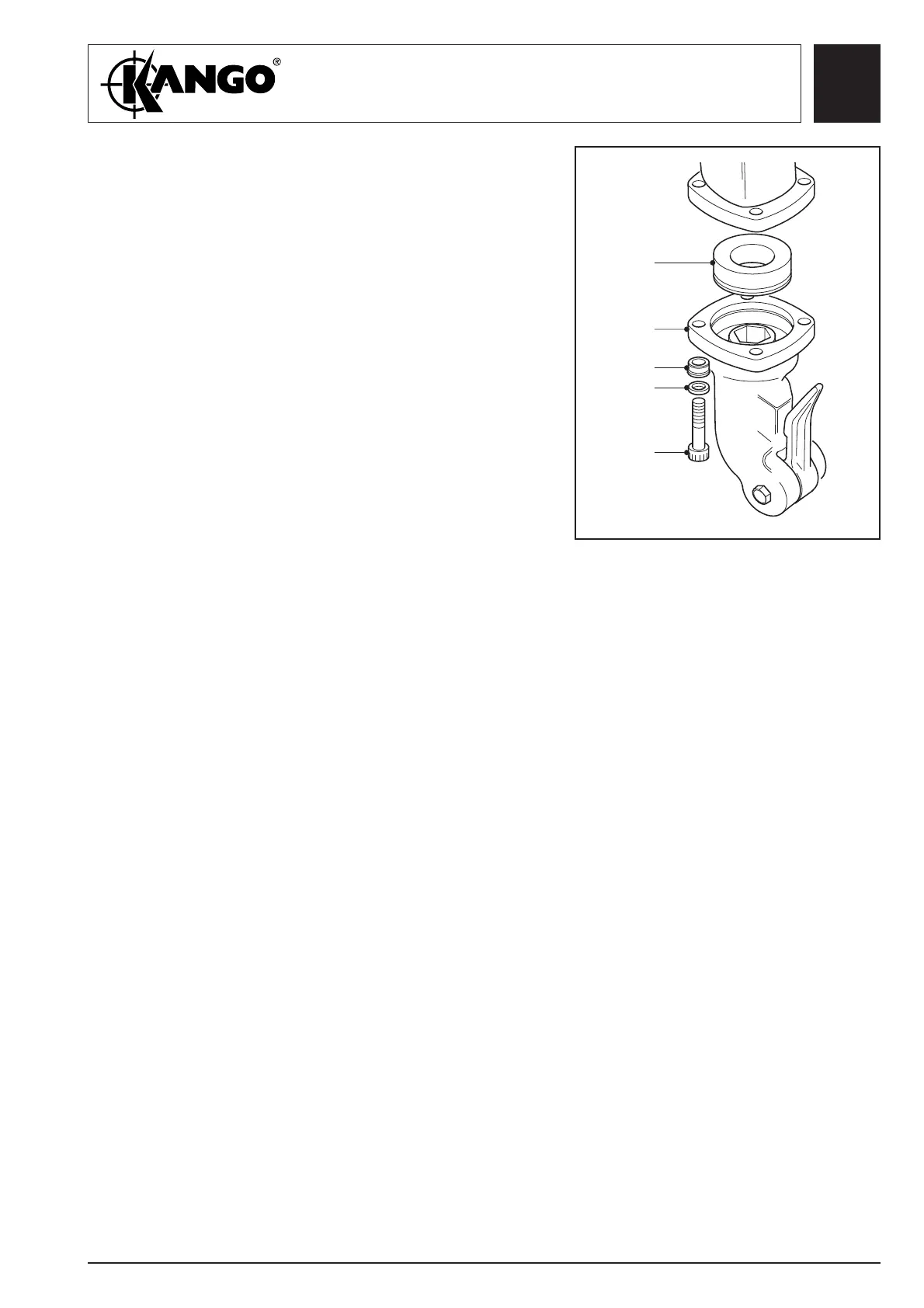

Assembling
the nosepiece
Fig. 28
1
2
3
4
5
