27
Service and Repair Manual
Model 710/760

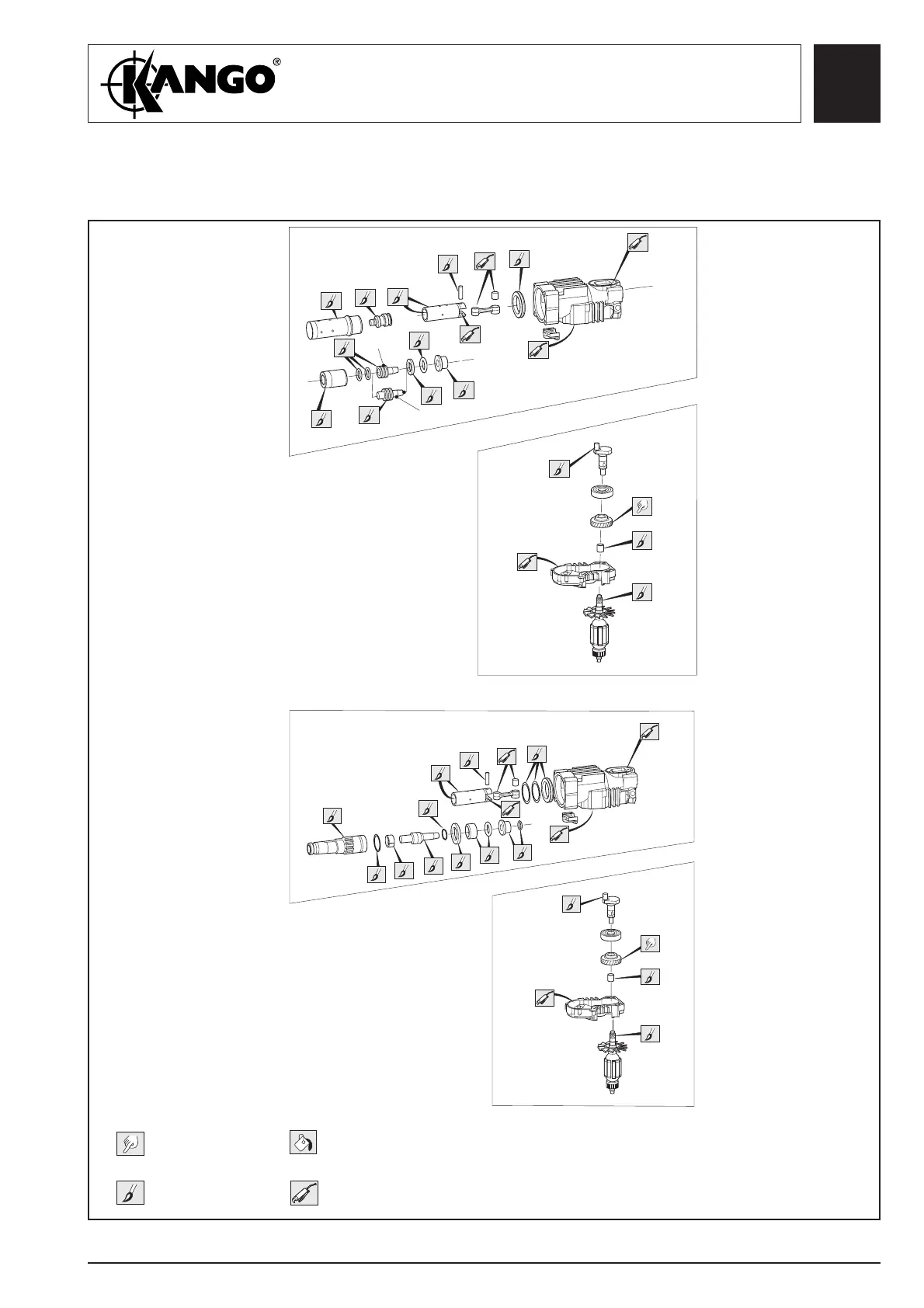

Lubrication At service and repair intervals the lubrication should be carried out as shown in the diagram below. All
parts in the service kit should be fitted. The total amount of grease is 120gm (9170 3071 70 (60g) and
9170 3043 20 (60g)). Lubrication of the hammer is as shown on the grease chart.
ALL SCREWS SHOULD BE REFITTED WITH LOCKTITE
®
222 OR SIMILAR
Smear
Liberally coat
Generously coat
Pack
710MV
710KV/710SV
Service and Repair Manual
Model 710BV/KV/MV
45gm
40gm
20gm
(9170 3043 23)
45gm
40gm
(710BV)
(710KV)
(9170 3071 70)
(9170 3043 23)
(9170 3071 70)
20gm
(9170 3043 23)
To Next Page
