page 8
Fig. 14
4. To change the core bit, hold the tool upwards, pointing it away from
your body as shown, and run it briefly in forward to loosen the core
bit from the adapter (Fig. 15).
6. To change the core bit, hold the tool upwards, pointing it away from
your body as shown, and run it briefly in forward to loosen the core
bit from the adapter (Fig. 11).
NOTE: If the 48-20-5099 threaded stud is used, use a template or notched
board to start the hole (Fig. 14).
Fig. 15
NOTE: To make deeper holes, remove the core bit, break and remove the
core. Resume drilling. When drilling long or deep holes, after each inch of
penetration pull the bit partially out of the hole while the tool is running, to
help clear dust from the bit flutes. Dust can clog the bit flutes and can
make the bit bind in the hole. If this occurs, stop the tool, free the bit and
begin again.
Fig. 11
NOTE: To make deeper holes, remove the core bit, break and remove
the core. Resume drilling.

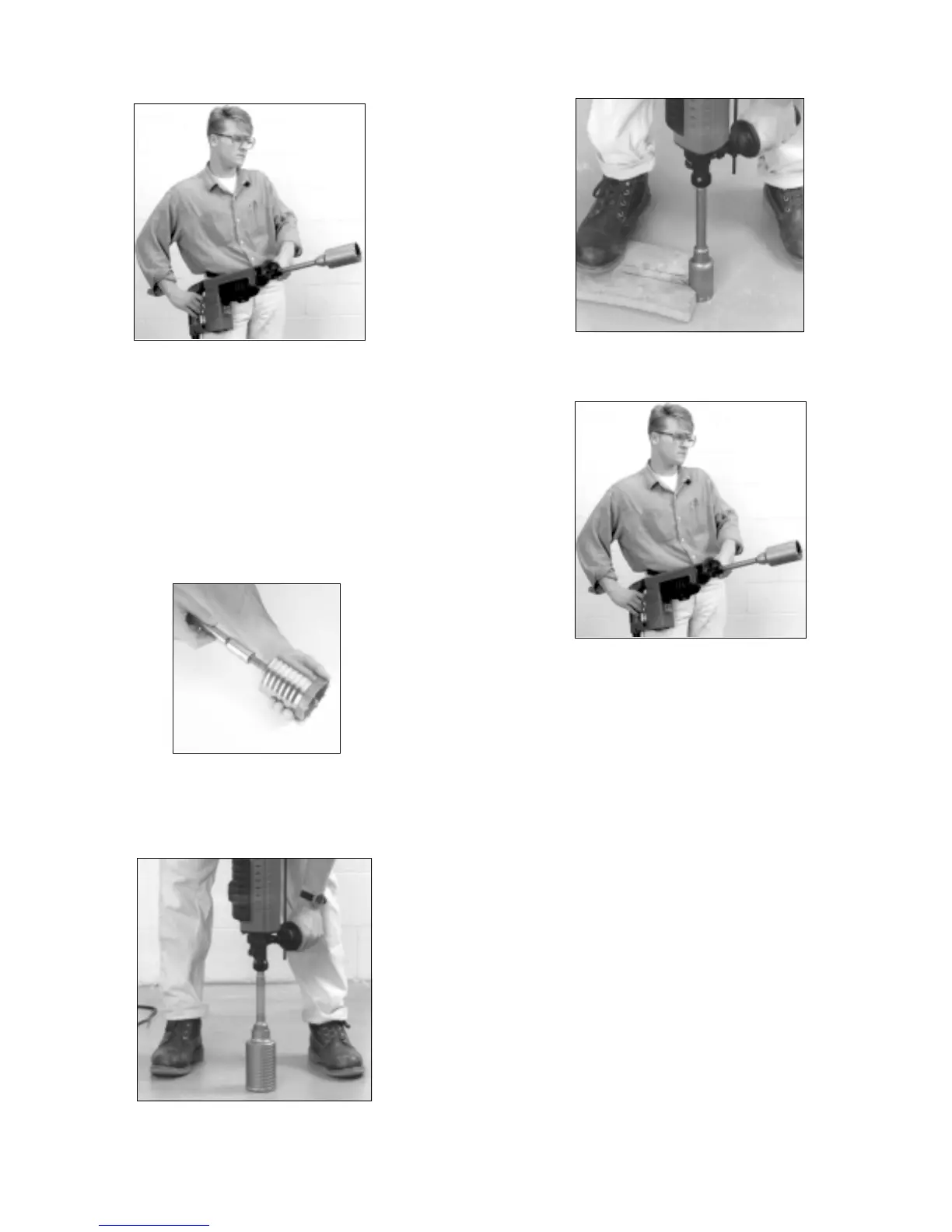

Using LHS Rotary Percussion Core Bits (Fig. 12-14)
LHS Core Bits are useful for drilling large or long holes in concrete. Core
Bits have heat-treated steel bodies with durable carbide tips. These
core bits are specially designed for fast, accurate drilling with combined
hammering and rotary action.
1. Clean and lubricate the threads on the adapter and core bit to make
later removal easier. Screw the threaded end of the centering bit
into the core bit (Fig. 12). Thread the adapter shank to the rear of the
core bit.
NOTE: If using an extension, first thread the adapter shank to the
extension. Then thread the core bit to the extension.
2. Insert the adapter into the nose of the tool as described in Installing
Bits. Set the stop rotation knob to the hammering-with-rotation
setting.
3. Press the centering bit firmly against your center mark, hold the tool
firmly and pull the trigger (Fig. 13).
Fig. 13
Fig. 12
